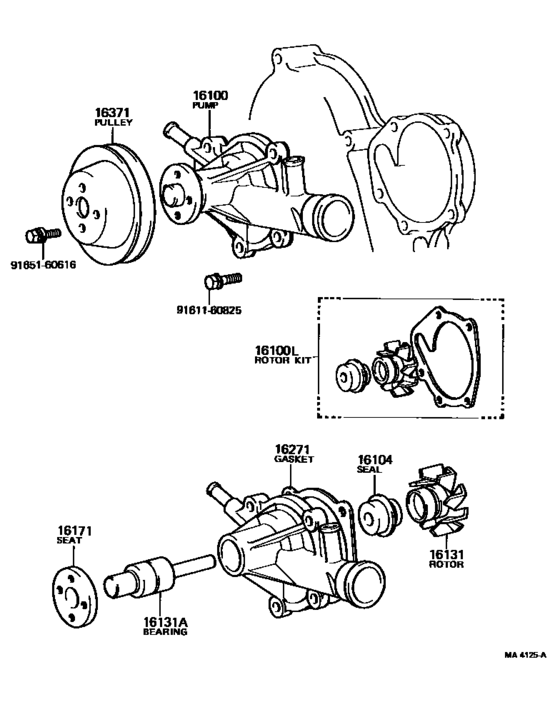

Water Pump ([08.1979 - 08.1982] (7908-8208)) Diagram Toyota COROLLA
- Year
- 1979 - 1982
- Sales region
- U.S.A.
- Frame
- TE72
- grade
- DX
- body
- WG
- ENGINE
- 3TC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1982
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-28020 Pump Assy, Engine Water[08.1979 - 08.1982] 3TC..TE72..USA |
16100-28020 |
US $397.49 |
||
|
16100L
|
16100L
04162-28010 Rotor Kit, Water PumpWATER PUMP [08.1979 - 08.1981] 3TC..TE72..USA |
04162-28010 |
US $21.99 |
||
| replacement | |||||
|
16100L
|
16100L
04162-28021
Rotor Kit, Water Pump
[08.1979 - 08.1981] 3TC..TE72..USA |
04162-28021 |
— | ||
|
16100L
|
16100L
04162-28020
Rotor Kit, Water Pump
[08.1981 - 01.1982] 3TC..TE72 |
04162-28020 |
— | ||
| replacement | |||||
|
16100L
|
16100L
04162-28021
Rotor Kit, Water Pump
[08.1981 - 01.1982] 3TC..TE72 |
04162-28021 |
— | ||
|
16100L
|
16100L
04162-28021
Rotor Kit, Water Pump
[01.1982 - 08.1982] 3TC..TE72 |
04162-28021 |
— | ||
|
16104
|
16104
16104-41110
Seal Set, Water Pump
[08.1979 - 08.1982] 3TC..TE72..USA |
16104-41110 |
— | ||
| replacement | |||||
|
16104
|
16104
16104-15020 Seal Set, Water Pump[08.1979 - 08.1982] 3TC..TE72..USA |
16104-15020 |
US $22.13 |
||
|
16131
|
16131
16131-26010
Rotor, Water Pump
[08.1979 - 08.1982] 3TC..TE72 |
16131-26010 |
— | ||
|
16131A
|
16131A
16140-38011
Bearing, Water Pump
[08.1979 - 08.1982] 3TC..TE72..USA |
16140-38011 |
— | ||
| replacement | |||||
|
16131A
|
16131A
90029-36834
Bearing, Water Pump
[08.1979 - 08.1982] 3TC..TE72..USA |
90029-36834 |
— | ||
|
16171
|
16171
16171-26021 Seat, Water Pump Pulley[08.1979 - 08.1982] 3TC..TE72..USA |
16171-26021 |
US $21.40 |
||
|
16271
|
16271
16129-25011
Gasket, Water Pump
[08.1979 - 01.1982] 3TC..TE72 |
16129-25011 |
— | ||
| replacement | |||||
|
16271
|
16271
16129-25013
Gasket, Water Pump
[08.1979 - 01.1982] 3TC..TE72 |
16129-25013 |
— | ||
|
16271
|
16271
16129-25012 Gasket, Water Pump[01.1982 - 08.1982] 3TC..TE72 |
16129-25012 |
US $11.36 |
||
| replacement | |||||
|
16271
|
16271
16129-25013
Gasket, Water Pump
[01.1982 - 08.1982] 3TC..TE72 |
16129-25013 |
— | ||
|
16371
|
16371
16173-28010
Pulley, Fan
[08.1979 - 08.1982] 3TC..TE72..USA |
16173-28010 |
— | ||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
