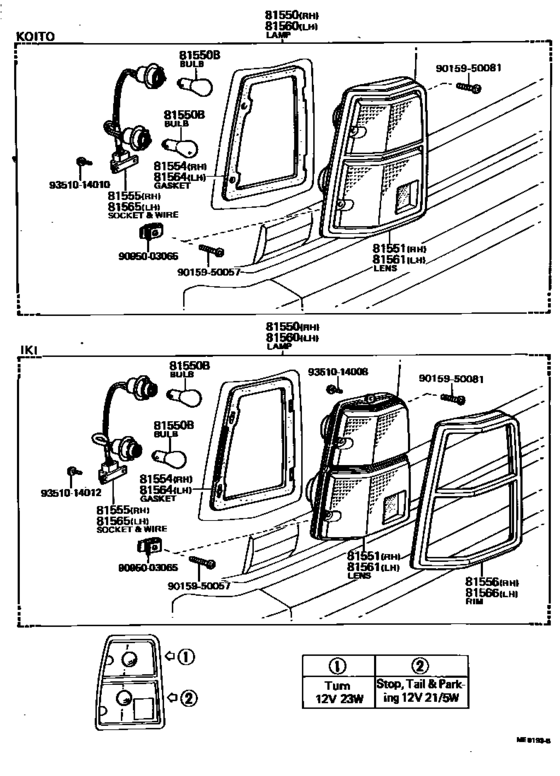

Rear Combination Lamp ([08.1979 - 08.1981] (7908-8108)KE71,TE73) Diagram Toyota COROLLA
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- TE73
- grade
- DX
- body
- V
- ENGINE
- 12TJ
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1981
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-80052 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [08.1979 - 08.1981] TE73;KE71..GL KOITO |
81550-80052 |
US $212.58 |
||
|
81550
|
81550
81550-80053 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [08.1979 - 08.1981] TE73;KE71..GL IKI |
81550-80053 |
US $212.58 |
||
|
81550B
|
81550B
99132-11230
Bulb, Fog Lamp
[03.1979 - 07.1987] AE70,CE7#,KE7#,TE7# １２Ｖ ２３Ｗ,12V 23W |
99132-11230 |
— | ||
| replacement | |||||
|
81550B
|
81550B
00234-01073 Bulb[03.1979 - 07.1987] AE70,CE7#,KE7#,TE7# １２Ｖ ２３Ｗ,12V 23W |
00234-01073 |
US $2.34 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[03.1979 - 07.1987] AE70,CE7#,KE7#,TE7# １２Ｖ ２１／５Ｗ,12V 21/5W |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-13210 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1979 - 08.1981] TE73;KE71..GL KOITO |
81551-13210 |
US $110.66 |
||
|
81551
|
81551
81551-13220 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1979 - 08.1981] KE71,TE73 IKI |
81551-13220 |
US $94.64 |
||
|
81554
|
81554
81554-13210
Gasket, Rear Combination Lamp Body, Rh
[08.1979 - 08.1981] KE71,TE73 KOITO |
81554-13210 |
— | ||
|
81554
|
81554
81554-13220 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [08.1979 - 08.1981] KE71,TE73 IKI |
81554-13220 |
US $10.92 |
||
|
81555
|
81555
81555-13210
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1979 - 08.1981] KE71,TE73 KOITO |
81555-13210 |
— | ||
|
81555
|
81555
81555-13220
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1979 - 08.1983] CE71,KE71,72,73,TE73,74 IKI |
81555-13220 |
— | ||
|
81556
|
81556
81556-13220 Rim, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1979 - 08.1981] TE73;KE71..GL IKI |
81556-13220 |
US $35.96 |
||
|
81560
|
81560
81560-80054 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [08.1979 - 08.1981] TE73;KE71..GL KOITO |
81560-80054 |
US $212.58 |
||
|
81560
|
81560
81560-80055 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [08.1979 - 08.1981] TE73;KE71..GL IKI |
81560-80055 |
US $212.58 |
||
|
81561
|
81561
81561-13210
Lens, Rear Combination Lamp, Lh
[08.1979 - 08.1981] TE73;KE71..GL KOITO |
81561-13210 |
— | ||
|
81561
|
81561
81561-13220 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1979 - 08.1981] KE71,TE73 IKI |
81561-13220 |
US $94.64 |
||
|
81564
|
81564
81554-13210
Gasket, Rear Combination Lamp Body, Rh
[08.1979 - 08.1981] KE71,TE73 KOITO |
81554-13210 |
— | ||
|
81564
|
81564
81564-13220 Gasket, Rear Combination Lamp Body, LhREAR COMBINATION LAMP BODY, LH [08.1979 - 08.1981] KE71,TE73 IKI |
81564-13220 |
US $11.36 |
||
|
81565
|
81565
81555-13210
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1979 - 08.1981] KE71,TE73 KOITO |
81555-13210 |
— | ||
|
81565
|
81565
81555-13220
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1979 - 08.1983] CE71,KE71,72,73,TE73,74 IKI |
81555-13220 |
— | ||
|
81566
|
81566
81566-13220 Rim, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1979 - 08.1981] TE73;KE71..GL IKI |
81566-13220 |
US $35.96 |
||
|
9015950057
|
9015950057
90159-50057 New Genuine Part |
90159-50057 |
US $2.04 |
||
|
9015950081
|
9015950081
90159-50081 SCREW |
90159-50081 |
US $3.04 |
||
|
9095003065
|
9095003065
90950-03065
New Genuine Part
|
90950-03065 |
— | ||
|
9351014008
|
9351014008
93510-14008 New Genuine Part |
93510-14008 |
US $2.18 |
||
|
9351014010
|
9351014010
93510-14010 New Genuine Part |
93510-14010 |
US $1.31 |
||
|
9351014012
|
9351014012
93510-14012 New Genuine Part |
93510-14012 |
US $1.49 |
||
| replacement | |||||
|
9351014012
|
9351014012
93540-A4014 SCREW TAPPING |
93540-A4014 |
US $1.60 |
||
