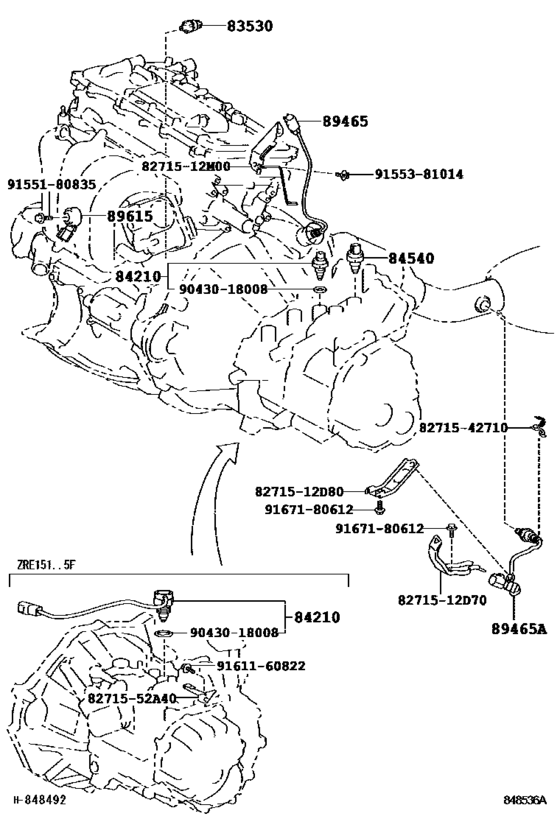

Switch & Relay & Computer ([11.2006 - 12.2008] ENGINE & TRANSMISSION (0611-0812)ZRE151) Diagram Toyota COROLLA
- Year
- 2006 - 2008
- Sales region
- Europe
- Frame
- ZRE151
- grade
- D
- ENGINE
- 1ZRFE
- TRANSMISSION
- MTM
- Model
- COROLLA SED (JPP)
- From
- 11.2006
- To
- 12.2008
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-05010
Switch Assy, Oil Pressure (For Engine)
[11.2006 - 12.2008] ZRE151,ZZE150 VALEO |
83530-05010 |
— | ||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[11.2006 - 12.2008] ZRE151,ZZE150 DENSO |
83530-28020 |
from US $29.33 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [11.2006 - 12.2008] ZRE151,ZZE150 DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[11.2006 - 12.2008] ZRE151,ZZE150 DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [11.2006 - 12.2008] ZRE151,ZZE150 YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84210
|
84210
84210-52010 Switch Assy, Back-Up Lamp[11.2006 - 12.2008] NDE150,ZRE151,ZZE150..5F |
84210-52010 |
from US $22.80 |
||
|
89465
|
89465
89465-12880 Sensor, OxygenOXYGEN [11.2006 - 12.2008] ZRE151 |
89465-12880 |
US $306.54 |
||
|
89465A
|
89465A
89465-12800 Sensor, Oxygen[11.2006 - 12.2008] ZRE151 |
89465-12800 |
from US $139.12 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[11.2006 - 12.2008] ZRE151 |
89615-20090 |
from US $36.02 |
||
|
8271512D70
|
8271512D70
82715-12D70
Bracket,wiring Harness Clamp
|
82715-12D70 |
— | ||
|
8271512D80
|
8271512D80
82715-12D80
Bracket,wiring Harness Clamp
|
82715-12D80 |
— | ||
|
8271512M00
|
8271512M00
82715-12M00
Bracket,wiring Harness Clamp
|
82715-12M00 |
— | ||
|
8271552A40
|
8271552A40
82715-52A40
Bracket,wiring Harness Clamp
|
82715-52A40 |
— | ||
|
8271542710
|
8271542710
82715-42710 Bracket,wiring Harness Clamp |
82715-42710 |
US $2.80 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.86 |
||
|
9155381014
|
9155381014
91553-81014 New Genuine Part |
91553-81014 |
US $1.31 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $2.48 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
