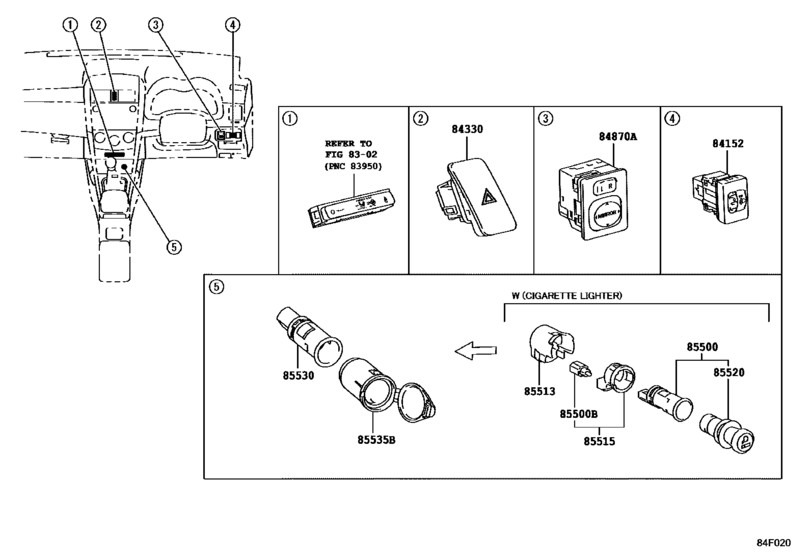

Switch & Relay & Computer ([04.2014 - ] INSTRUMENT PANEL (1404- )SA) Diagram Toyota COROLLA
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- ZRE151
- ENGINE
- 1ZRFE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 02.2009
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84152
|
84152
84152-02040
Switch, Headlamp Leveling
[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15#; ADE150,ZRE15#..E,N HEADLAMP-DISCHARGE |
84152-02040 |
— | ||
|
84330
|
84330
84332-02150
Switch Assy, Hazard Warning Signal
[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# |
84332-02150 |
— | ||
|
84870A
|
84870A
84870-34010 Switch Assy, Outer Mirror[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# |
84870-34010 |
from US $57.15 |
||
|
85500
|
85500
85500-20340 Lighter Assy, Cigarette[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# |
85500-20340 |
from US $46.45 |
||
|
85500
|
85500
85500-28080 Lighter Assy, Cigarette[06.2010 - 04.2014] NDE150..6FS;ADE150,NRE150,ZRE15# |
85500-28080 |
from US $30.42 |
||
|
85500B
|
85500B
90010-01030 Bulb, Key Cylinder Lamp[06.2010 - 04.2014] ZRE151..D..SA;ZRE151..LHD..D 14V1.4W,W(ORANGE CAP) |
90010-01030 |
from US $2.79 |
||
|
85500B
|
85500B
90010-01163 Bulb, Cigarette Lighter[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# 12V 1.2W,W(CAP) |
90010-01163 |
US $5.82 |
||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[06.2010 - 04.2014] NDE150..6FS;ADE150,NRE150,ZRE15# |
85513-28010 |
from US $2.65 |
||
|
85515
|
85515
85515-22040 Stay, Cigarette Lighter Bezel[06.2010 - 04.2014] NDE150..6FS;ADE150,NRE150,ZRE15# |
85515-22040 |
from US $11.52 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[06.2010 - 04.2014] ZRE151..D..SA;ZRE151..LHD..D |
85520-28010 |
from US $17.90 |
||
|
85530
|
85530
85530-42010 Socket Assy, Power Outlet, No.1[04.2014 -] ZRE151..SA |
85530-42010 |
from US $26.60 |
||
|
85535B
|
85535B
85535-44050-C0 Cover, Power Outlet Socket, No.1 (Black)[04.2014 -] ZRE151..SA BLACK |
85535-44050-C0 |
US $8.39 |
