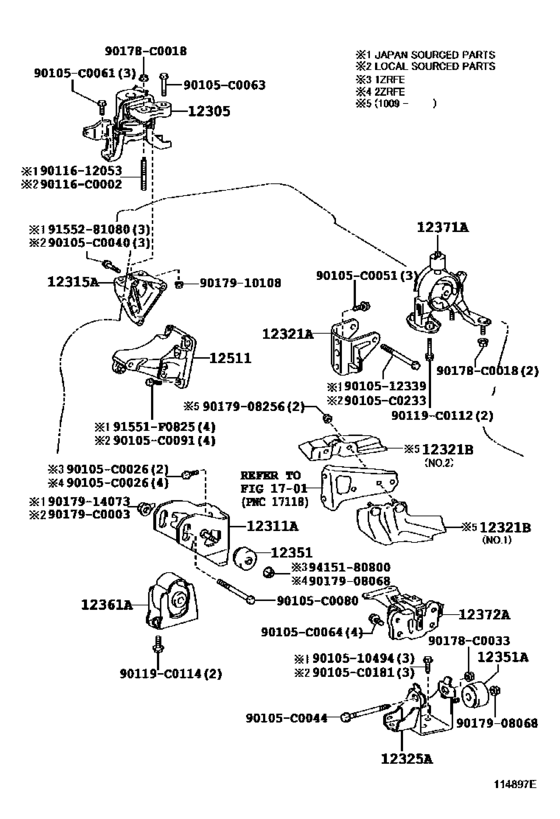

Mounting ([05.2007 - ] (0705- )1ZRFE,2ZRFE..4FC) Diagram Toyota COROLLA
- Year
- 2007 - 2010
- Sales region
- General
- Frame
- ZRE152
- grade
- GLXI
- body
- SED
- ENGINE
- 2ZRFE
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 05.2007
- To
- 09.2010
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12305
|
12305
12305-0T010
Insulator Sub-Assy, Engine Mounting, Rh
[05.2007 - 09.2010] 1ZRFE,2ZRFE..ZRE15# |
12305-0T010 |
— | ||
|
12311A
|
12311A
12311-0T030
Bracket, Engine Mounting, Front(For Transverse Engine)
[05.2007 - 09.2010] 2ZRFE..ZRE152..4FC |
12311-0T030 |
— | ||
|
12315A
|
12315A
12315-0T010
Bracket, Engine Mounting, Rh(For Transverse Engine)
[05.2007 - 09.2010] 1ZRFE,2ZRFE..ZRE15# (L) |
12315-0T010 |
— | ||
|
12315A
|
12315A
12315-37030 Bracket, Engine Mounting, Rh(For Transverse Engine)[05.2007 - 09.2010] 1ZRFE,2ZRFE..ZRE15# (J) |
12315-37030 |
US $46.30 |
||
|
12321A
|
12321A
12321-0T030
Bracket, Engine Mounting, Rear(For Transverse Engine)
[05.2007 - 09.2010] 2ZRFE..ZRE152..4FC |
12321-0T030 |
— | ||
|
12325A
|
12325A
12325-0T030
Bracket, Engine Mounting, Lh(For Transverse Engine)
[05.2007 - 09.2010] 2ZRFE..ZRE152..4FC |
12325-0T030 |
— | ||
|
12351
|
12351
12351-0T040
Damper, Engine Mounting
[05.2007 - 09.2010] 2ZRFE..ZRE152..4FC (L) |
12351-0T040 |
— | ||
|
12351
|
12351
12351-37020 Damper, Engine Mounting[05.2007 - 09.2010] 2ZRFE..ZRE152..4FC (J) |
12351-37020 |
US $30.14 |
||
|
12351A
|
12351A
12351-0T020 Damper, Engine Mounting(For Insulator)ENGINE MOUNTING(FOR INSULATOR) [05.2007 - 09.2010] 1ZRFE,2ZRFE..ZRE15#..4FC |
12351-0T020 |
US $29.99 |
||
|
12361A
|
12361A
12361-0T020
Insulator, Engine Mounting, Front(For Transverse Engine)
[05.2007 - 09.2010] 1ZRFE,2ZRFE..ZRE15#..4FC |
12361-0T020 |
— | ||
|
12371A
|
12371A
12371-0T020
Insulator, Engine Mounting, Rear
[05.2007 - 09.2010] 1ZRFE,2ZRFE..ZRE15#..4FC |
12371-0T020 |
— | ||
|
12372A
|
12372A
12372-0T020
Insulator, Engine Mounting, Lh(For Transverse Engine)
[05.2007 - 09.2010] 1ZRFE,2ZRFE..ZRE15#..4FC |
12372-0T020 |
— | ||
|
12511
|
12511
12511-0T010
Bracket, Alternator, No.1
[05.2007 - 09.2010] 1ZRFE,2ZRFE..ZRE15# (L) |
12511-0T010 |
— | ||
|
12511
|
12511
12511-37010 Bracket, Alternator, No.1[05.2007 - 09.2010] 1ZRFE,2ZRFE..ZRE15# (J) |
12511-37010 |
US $29.85 |
||
|
90105C0026
|
90105C0026
90105-C0026
New Genuine Part
|
90105-C0026 |
— | ||
|
90105C0040
|
90105C0040
90105-C0040
New Genuine Part
|
90105-C0040 |
— | ||
|
90105C0044
|
90105C0044
90105-C0044
New Genuine Part
|
90105-C0044 |
— | ||
|
90105C0051
|
90105C0051
90105-C0051
New Genuine Part
|
90105-C0051 |
— | ||
|
90105C0061
|
90105C0061
90105-C0061
New Genuine Part
|
90105-C0061 |
— | ||
|
90105C0063
|
90105C0063
90105-C0063
New Genuine Part
|
90105-C0063 |
— | ||
|
90105C0064
|
90105C0064
90105-C0064
New Genuine Part
|
90105-C0064 |
— | ||
|
90105C0080
|
90105C0080
90105-C0080
New Genuine Part
|
90105-C0080 |
— | ||
|
90105C0091
|
90105C0091
90105-C0091
New Genuine Part
|
90105-C0091 |
— | ||
|
90105C0181
|
90105C0181
90105-C0181
New Genuine Part
|
90105-C0181 |
— | ||
|
90105C0233
|
90105C0233
90105-C0233
New Genuine Part
|
90105-C0233 |
— | ||
|
90116C0002
|
90116C0002
90116-C0002
New Genuine Part
|
90116-C0002 |
— | ||
|
90119C0112
|
90119C0112
90119-C0112
New Genuine Part
|
90119-C0112 |
— | ||
|
90119C0114
|
90119C0114
90119-C0114
New Genuine Part
|
90119-C0114 |
— | ||
|
90178C0018
|
90178C0018
90178-C0018
Nut(For Front Stabilizer Link)
|
90178-C0018 |
— | ||
|
90178C0033
|
90178C0033
90178-C0033
New Genuine Part
|
90178-C0033 |
— | ||
|
90179C0003
|
90179C0003
90179-C0003
New Genuine Part
|
90179-C0003 |
— | ||
|
91551F0825
|
91551F0825
91551-F0825 BOLT FLANGE |
91551-F0825 |
US $1.28 |
||
|
9010510494
|
9010510494
90105-10494 BOLT FLANGE |
90105-10494 |
US $1.60 |
||
|
9010512339
|
9010512339
90105-12339 New Genuine Part |
90105-12339 |
US $5.28 |
||
|
9011612053
|
9011612053
90116-12053 BOLT STUD |
90116-12053 |
US $4.96 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
US $1.60 |
||
|
9017908256
|
9017908256
90179-08256 NUT |
90179-08256 |
US $1.28 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.40 |
||
|
9017914073
|
9017914073
90179-14073 New Genuine Part |
90179-14073 |
US $3.84 |
||
|
9155281080
|
9155281080
91552-81080 Bolt(For Alternator) |
91552-81080 |
from US $1.56 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.82 |
