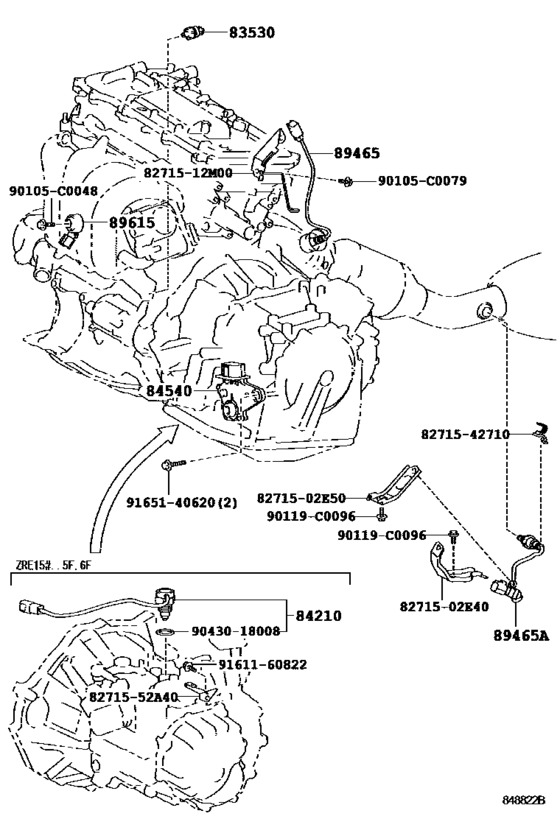

Switch & Relay & Computer ([05.2007 - 09.2010] ENGINE & TRANSMISSION (0705-1009)) Diagram Toyota COROLLA
- Year
- 2007 - 2010
- Sales region
- General
- Frame
- ZRE152
- grade
- GLXI
- body
- SED
- ENGINE
- 2ZRFE
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 05.2007
- To
- 09.2010
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[05.2007 - 09.2010] ZRE15# DENSO |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [05.2007 - 09.2010] ZRE15# DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[05.2007 - 09.2010] ZRE15# DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [05.2007 - 09.2010] ZRE15# YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84540
|
84540
84540-46010 Switch Assy, Neutral Start[05.2007 - 09.2010] ZRE15#..4FC |
84540-46010 |
from US $122.85 |
||
|
89465
|
89465
89467-02030
Sensor, Oxygen
[05.2007 - 09.2010] ZRE152 |
89467-02030 |
— | ||
|
89465A
|
89465A
89465-02300
Sensor, Oxygen
[05.2007 - 09.2010] ZRE15# |
89465-02300 |
— | ||
|
89615
|
89615
89615-20090 Sensor, Knock Control[05.2007 - 09.2010] ZRE15# |
89615-20090 |
from US $36.02 |
||
|
90105C0048
|
90105C0048
90105-C0048
New Genuine Part
|
90105-C0048 |
— | ||
|
90105C0079
|
90105C0079
90105-C0079
New Genuine Part
|
90105-C0079 |
— | ||
|
90119C0096
|
90119C0096
90119-C0096
New Genuine Part
|
90119-C0096 |
— | ||
|
8271502E40
|
8271502E40
82715-02E40
Bracket,wiring Harness Clamp
|
82715-02E40 |
— | ||
|
8271502E50
|
8271502E50
82715-02E50
Bracket,wiring Harness Clamp
|
82715-02E50 |
— | ||
|
8271512M00
|
8271512M00
82715-12M00
Bracket,wiring Harness Clamp
|
82715-12M00 |
— | ||
|
8271552A40
|
8271552A40
82715-52A40
Bracket,wiring Harness Clamp
|
82715-52A40 |
— | ||
|
8271542710
|
8271542710
82715-42710 Bracket,wiring Harness Clamp |
82715-42710 |
US $2.80 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $2.48 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
