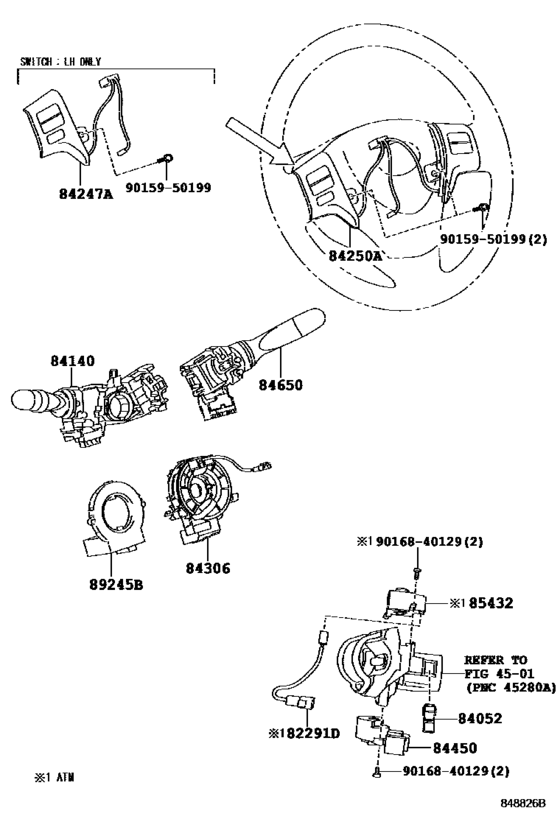

Switch & Relay & Computer ([05.2007 - 09.2010] STEERING (0705-1009)) Diagram Toyota COROLLA
- Year
- 2007 - 2010
- Sales region
- General
- Frame
- ZRE152
- grade
- GLXI
- body
- SED
- ENGINE
- 2ZRFE
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 05.2007
- To
- 09.2010
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82291D
|
82291D
82291-02010
Wire, To Solenoid
[05.2007 - 09.2010] ZRE15#..4FC..(GL,GLI,GLS,GLXI,GLXS) |
82291-02010 |
— | ||
|
84052
|
84052
84052-06010
Switch Assy, Un-Lock Warning
[05.2007 - 09.2010] ZRE15#..GL,GLI,GLS,GLXI,GLXS |
84052-06010 |
— | ||
|
84140
|
84140
84140-0P010
Switch Assy, Headlamp Dimmer
[05.2007 - 09.2008] ZRE152..GLXI,GLXS,PREM |
84140-0P010 |
— | ||
| replacement | |||||
|
84140
|
84140
84140-0P011
Switch Assy, Headlamp Dimmer
[05.2007 - 09.2008] ZRE152..GLXI,GLXS,PREM |
84140-0P011 |
— | ||
|
84140
|
84140
84140-0P011
Switch Assy, Headlamp Dimmer
[09.2008 - 09.2010] ZRE152..GLXI,GLXS,PREM; ZRE152..GLI MEMORIAL PACKAGE |
84140-0P011 |
— | ||
|
84247A
|
84247A
84247-02030
Switch, Steering Pad, Lh
[05.2007 - 09.2010] ZRE152..GLXI,PREM |
84247-02030 |
— | ||
|
84250A
|
84250A
84250-02100
Switch Assy, Steering Pad
[05.2007 - 09.2010] ZRE152..6F..GLXI;ZRE152..4FC..(GLXI,GLXS) W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR)&AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP; ZRE152..6F..GLXS;ZRE152..GLI,GLS,PREM AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP |
84250-02100 |
— | ||
|
84306
|
84306
84306-02200
Cable Sub-Assy, Spiral
[05.2007 - 09.2010] ZRE152..GLXI,PREM; ZRE152..GLI,GLS;ZRE152..6F..GLXS AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP |
84306-02200 |
— | ||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[05.2007 - 09.2010] ZRE15#..GL,GLI,GLS,GLXI,GLXS |
84450-12200 |
from US $49.25 |
||
|
84650
|
84650
84652-0P011
Switch Assy, Windshield Wiper
[05.2007 - 09.2008] ZRE152 |
84652-0P011 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-0P012
Switch Assy, Windshield Wiper
[05.2007 - 09.2008] ZRE152 |
84652-0P012 |
— | ||
|
84650
|
84650
84652-0P012
Switch Assy, Windshield Wiper
[09.2008 - 09.2010] ZRE152 |
84652-0P012 |
— | ||
|
85432
|
85432
85432-02010
Solenoid, Key Inter Lock
[05.2007 - 09.2010] ZRE15#..4FC..(GL,GLI,GLS,GLXI,GLXS) |
85432-02010 |
— | ||
| replacement | |||||
|
85432
|
85432
85432-71010 Solenoid, Key Inter Lock[05.2007 - 09.2010] ZRE15#..4FC..(GL,GLI,GLS,GLXI,GLXS) |
85432-71010 |
US $40.33 |
||
|
89245B
|
89245B
89245-02030
Sensor, Steering
[05.2007 - 09.2010] ZRE152..PREM; ZRE152..GLXI W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR)&AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP |
89245-02030 |
— | ||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $0.96 |
||
