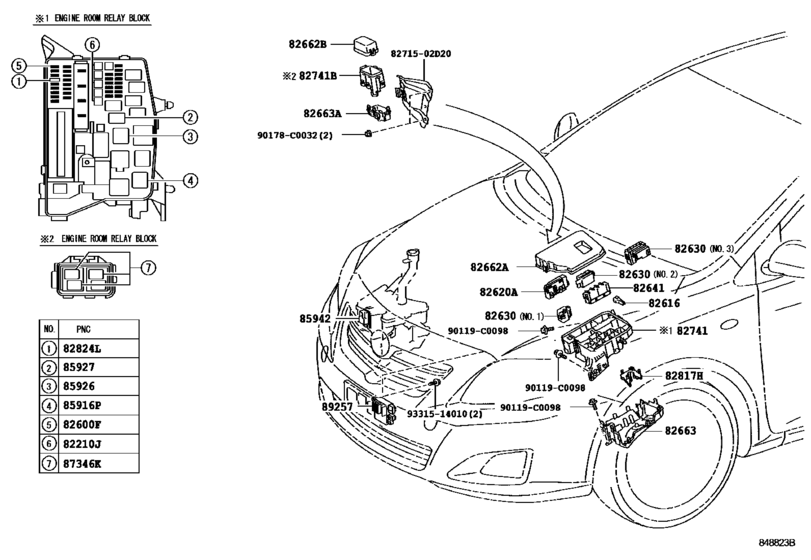

Switch & Relay & Computer ([05.2007 - ] ENGINE ROOM (0705- )) Diagram Toyota COROLLA
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRE152
- grade
- GLI
- body
- SED
- ENGINE
- 2ZRFE
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 09.2010
- To
- 06.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210J
|
82210J
90982-08294 Fusible Link[09.2010 -] ZRE15# 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[09.2010 -] ZRE15# 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[09.2010 -] ZRE15# 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[09.2010 -] ZRE15# 7.5A,MINI FUSE |
90982-09020 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[09.2010 -] ZRE15# 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[09.2010 -] ZRE15# 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[09.2010 -] ZRE15# 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[09.2010 -] ZRE15# 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[09.2010 -] ZRE15# 30A,MINI FUSE |
90982-09025 |
from US $0.92 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[09.2010 - 06.2014] ZRE15# |
82616-58010 |
from US $2.32 |
||
|
82620A
|
82620A
82620-12280 Block Assy, Fusible Link[09.2010 - 06.2014] ZRE15# |
82620-12280 |
US $30.55 |
||
|
82641
|
82641
82641-47020 Relay, Integration No.1[09.2010 - 06.2014] ZRE15# |
82641-47020 |
from US $79.92 |
||
|
82662A
|
82662A
82662-12460 Cover, Relay Block, Upper, No.1RELAY BLOCK, UPPER, NO.1 [09.2010 -] ZRE151,152..GL,GLI,GLXI |
82662-12460 |
US $44.56 |
||
|
82663
|
82663
82663-12060 Cover, Relay Block, Lower[09.2010 - 06.2014] ZRE15# |
82663-12060 |
from US $32.47 |
||
|
82741
|
82741
82741-12070 Block, Engine Room Relay[09.2010 - 06.2014] ZRE15# |
82741-12070 |
from US $72.36 |
||
|
82817H
|
82817H
82817-12A80 Protector, Wiring Harness[09.2010 - 06.2014] ZRE15# |
82817-12A80 |
US $10.34 |
||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[09.2010 - 06.2014] ZRE15# |
82824-20140 |
US $3.32 |
||
|
85916P
|
85916P
90987-T2004
Relay, Water Pump
[09.2010 -] ZRE15#..GL,GLI,GLX,GLXI |
90987-T2004 |
— | ||
|
85926
|
85926
90987-T4002
Relay Assy (For Heater Blower Motor)
[09.2010 -] ZRE15#..GL,GLI,GLX,GLXI |
90987-T4002 |
— | ||
|
85927
|
85927
90987-T2005
Relay, Water Pump
[09.2010 -] ZRE15#..GL,GLI,GLX,GLXI |
90987-T2005 |
— | ||
|
87346K
|
87346K
90987-T2005
Relay, Water Pump
[09.2010 -] ZRE15#..GL,GLI,GLX,GLXI |
90987-T2005 |
— | ||
|
89257
|
89257
89257-12020 Computer, Cooling FanCOOLING FAN [09.2010 - 06.2014] ZRE152,153..CVFC |
89257-12020 |
from US $195.84 |
||
|
90119C0098
|
90119C0098
90119-C0098
New Genuine Part
|
90119-C0098 |
— | ||
|
90178C0032
|
90178C0032
90178-C0032
Nut, Wire Adjusting, No.1
|
90178-C0032 |
— | ||
|
8271502D20
|
8271502D20
82715-02D20
Bracket,wiring Harness Clamp
|
82715-02D20 |
— | ||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.76 |
