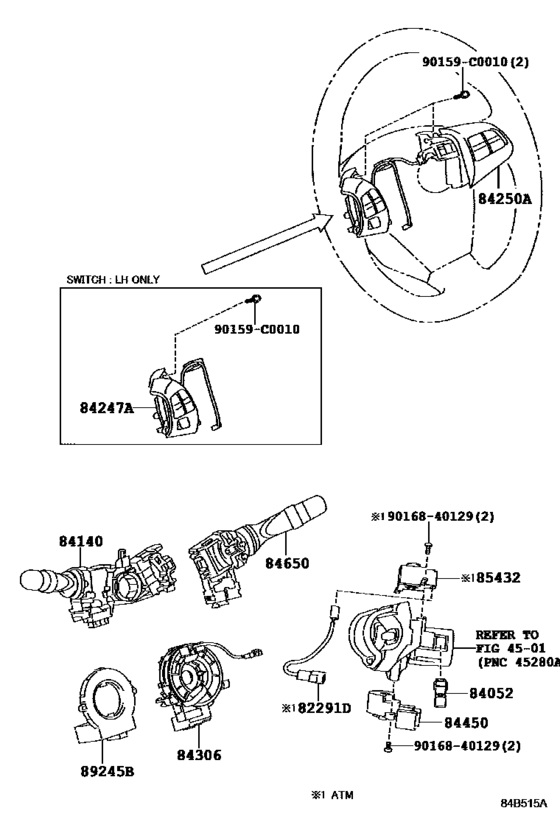

Switch & Relay & Computer ([09.2010 - ] STEERING (1009- )) Diagram Toyota COROLLA
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- ZRE152
- grade
- GLI
- body
- SED
- ENGINE
- 2ZRFE
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 09.2010
- To
- 06.2014
- Gear Shift Type
- CVFC
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82291D
|
82291D
82291-02010
Wire, To Solenoid
[09.2010 - 06.2014] ZRE151,152..4FC,CVFC |
82291-02010 |
— | ||
|
84052
|
84052
84052-06010
Switch Assy, Un-Lock Warning
[09.2010 - 06.2014] ZRE151,152 |
84052-06010 |
— | ||
|
84140
|
84140
84140-02391
Switch Assy, Headlamp Dimmer
[09.2010 -] ZRE151,152..GL,GLI |
84140-02391 |
— | ||
|
84247A
|
84247A
84247-02090
Switch, Steering Pad, Lh
[03.2012 - 06.2014] ZRE151,152..GL,GLI AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER |
84247-02090 |
— | ||
|
84250A
|
84250A
84250-02200
Switch Assy, Steering Pad
[09.2010 - 04.2011] ZRE152..GLI,GLS AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER |
84250-02200 |
— | ||
|
84306
|
84306
84306-02190
Cable Sub-Assy, Spiral
[09.2010 -] ZRE151,152..GL,GLI |
84306-02190 |
— | ||
|
84306
|
84306
84306-02200
Cable Sub-Assy, Spiral
[09.2010 - 04.2011] ZRE152..CVFC..GLXS A PACKAGE&AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER&BACK MONITOR-WITH(GUIDE); ZRE152..GLS,GLXS AUDIO (OVERSEAS MARKET)-AM/FM CD/BLUETOOTH 6SPEAKER; ZRE152..GLI,GLS;ZRE152..6F..GLXS AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER |
84306-02200 |
— | ||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[09.2010 - 06.2014] ZRE151,152 |
84450-12200 |
from US $49.25 |
||
|
84650
|
84650
84652-0P012
Switch Assy, Windshield Wiper
[09.2010 -] ZRE152,153..GLI,GLX,GLXI |
84652-0P012 |
— | ||
|
85432
|
85432
85432-02010
Solenoid, Key Inter Lock
[09.2010 - 06.2014] ZRE151,152..4FC,CVFC |
85432-02010 |
— | ||
| replacement | |||||
|
85432
|
85432
85432-71010 Solenoid, Key Inter Lock[09.2010 - 06.2014] ZRE151,152..4FC,CVFC |
85432-71010 |
US $40.33 |
||
|
89245B
|
89245B
89245-02030
Sensor, Steering
[09.2010 - 04.2011] ZRE152..GLI,GLS;ZRE152..6F..GLXS AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER |
89245-02030 |
— | ||
|
90159C0010
|
90159C0010
90159-C0010
New Genuine Part
|
90159-C0010 |
— | ||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $0.96 |
||
