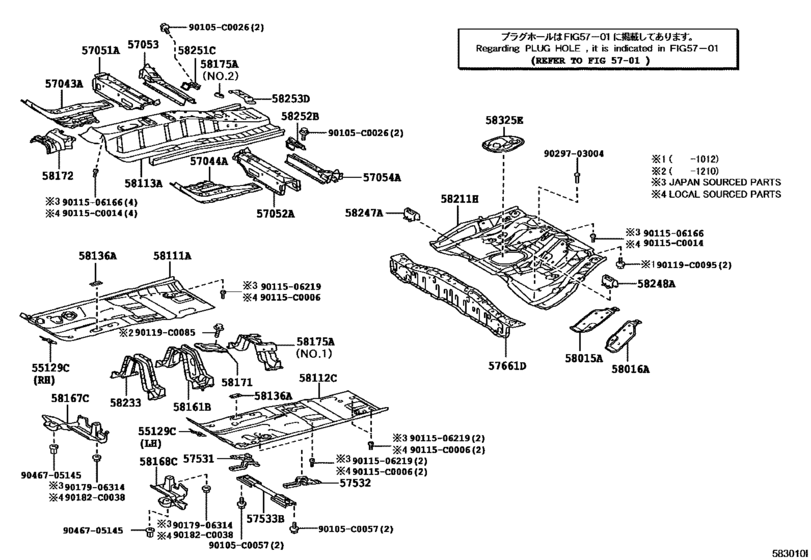

Floor Pan & Lower Back Panel ([05.2007 - ] FRONT FLOOR PANEL (0705- )) Diagram Toyota COROLLA
- Year
- 2010 - 2012
- Sales region
- General
- Frame
- ZRE152
- grade
- GLXS
- body
- SED
- ENGINE
- 2ZRFE
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 09.2010
- To
- 03.2012
- Gear Shift Type
- CVFC
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55129C
|
55129C
55129-02040
Cover, Dash Panel Hole
[09.2010 - 03.2012] ZRE152..GLS,GLXS RH |
55129-02040 |
— | ||
|
55129C
|
55129C
55139-02030
Cover, Dash Panel Hole
[09.2010 - 03.2012] ZRE152..GLS,GLXS LH |
55139-02030 |
— | ||
|
57043A
|
57043A
57043-02020
Reinforcement Sub-Assy, Front Side Member, Rear Rh
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
57043-02020 |
— | ||
|
57044A
|
57044A
57044-02020
Reinforcement Sub-Assy, Front Side Member, Rear Lh
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
57044-02020 |
— | ||
|
57051A
|
57051A
57051-02040
Member Sub-Assy, Front Floor Cross, Rh
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
57051-02040 |
— | ||
|
57052A
|
57052A
57052-02030
Member Sub-Assy, Front Floor Cross, Lh
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
57052-02030 |
— | ||
|
57053
|
57053
57053-02040
Reinforcement Sub-Assy, Front Floor Cross Member, Rh
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
57053-02040 |
— | ||
|
57054A
|
57054A
57054-02050
Reinforcement Sub-Assy, Front Floor Cross Member, Lh
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
57054-02050 |
— | ||
|
57531
|
57531
57531-02020
Bracket, Front Floor Center Brace, Rh
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
57531-02020 |
— | ||
|
57532
|
57532
57532-02020
Bracket, Front Floor Center Brace, Lh
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
57532-02020 |
— | ||
|
57533B
|
57533B
57501-12020 Bracket Sub-Assy, Front Seat, Center[09.2010 - 03.2012] ZRE152..GLS,GLXS |
57501-12020 |
US $69.01 |
||
|
57661D
|
57661D
57407-02110
Member Sub-Assy, Center Floor Cross, No.1
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
57407-02110 |
— | ||
|
58015A
|
58015A
58015-02080
Reinforce Sub-Assy, Belt Anchor, No.3 Rh
[09.2010 - 05.2013] ZRE15# |
58015-02080 |
— | ||
|
58016A
|
58016A
58016-02090
Reinforce Sub-Assy, Belt Anchor, No.3 Lh
[09.2010 - 05.2013] ZRE15# |
58016-02090 |
— | ||
|
58111A
|
58111A
58111-02918
Pan, Front Floor, Rh
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
58111-02918 |
— | ||
|
58112C
|
58112C
58112-02902
Pan, Front Floor, Lh
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
58112-02902 |
— | ||
|
58113A
|
58113A
58113-02901
Panel, Front Floor, Center
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
58113-02901 |
— | ||
| replacement | |||||
|
58113A
|
58113A
58113-02910
Panel, Front Floor, Center
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
58113-02910 |
— | ||
|
58136A
|
58136A
58136-02040
Cover, Front Floor Service Hole
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
58136-02040 |
— | ||
|
58161B
|
58161B
58161-02060
Reinforcement, Belt Anchor To Floor Pan
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
58161-02060 |
— | ||
|
58167C
|
58167C
58167-02020
Cover, Front Floor, Center Rh
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
58167-02020 |
— | ||
|
58168C
|
58168C
58168-02020
Cover, Front Floor, Center Lh
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
58168-02020 |
— | ||
|
58171
|
58171
58171-02070
Reinforcement, Parking Brake Base
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
58171-02070 |
— | ||
|
58172
|
58172
58173-02010
Bracket, Computer Mounting, No.3
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
58173-02010 |
— | ||
|
58175A
|
58175A
57805-02060
Reinforcement Sub-Assy, Belt Anchor, No.1
[09.2010 - 03.2012] ZRE152..GLS,GLXS NO.1 |
57805-02060 |
— | ||
|
58175A
|
58175A
58176-02030
Reinforcement, Parking Brake Base, No.1
[09.2010 - 03.2012] ZRE152..GLS,GLXS NO.2 |
58176-02030 |
— | ||
|
58211H
|
58211H
58211-02908
Pan, Center Floor
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
58211-02908 |
— | ||
|
58233
|
58233
58203-02030
Bracket Sub-Assy, Exhaust Pipe Mounting
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
58203-02030 |
— | ||
|
58247A
|
58247A
58247-02040
Reinforcement, Rear Seat Cushion Hinge, Rh
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
58247-02040 |
— | ||
|
58248A
|
58248A
58247-02040
Reinforcement, Rear Seat Cushion Hinge, Rh
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
58247-02040 |
— | ||
|
58251C
|
58251C
58251-02040
Brace, Floor Panel, Front Rh
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
58251-02040 |
— | ||
|
58252B
|
58252B
58252-02020
Brace, Floor Panel, Front Lh
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
58252-02020 |
— | ||
|
58253D
|
58253D
58253-02060
Bracket, Parking Brake Cable
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
58253-02060 |
— | ||
|
58325E
|
58325E
58325-02090
Cover, Rear Floor Service Hole
[09.2010 - 03.2012] ZRE152..GLS,GLXS |
58325-02090 |
— | ||
|
90105C0026
|
90105C0026
90105-C0026
New Genuine Part
|
90105-C0026 |
— | ||
|
90105C0057
|
90105C0057
90105-C0057
New Genuine Part
|
90105-C0057 |
— | ||
|
90115C0006
|
90115C0006
90115-C0006
Bolt, Weld(For Front Floor Pan, Lh)
|
90115-C0006 |
— | ||
|
90115C0014
|
90115C0014
90115-C0014
Bolt, Weld(For Front Floor Pan)
|
90115-C0014 |
— | ||
|
90119C0085
|
90119C0085
90119-C0085
New Genuine Part
|
90119-C0085 |
— | ||
|
90119C0095
|
90119C0095
90119-C0095
New Genuine Part
|
90119-C0095 |
— | ||
|
90182C0038
|
90182C0038
90182-C0038
New Genuine Part
|
90182-C0038 |
— | ||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9017906314
|
9017906314
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
|
9029703004
|
9029703004
90297-03004 New Genuine Part |
90297-03004 |
US $0.44 |
||
|
9046705145
|
9046705145
90467-05145 Retainer, Cowl Side Trim |
90467-05145 |
US $1.60 |
||
