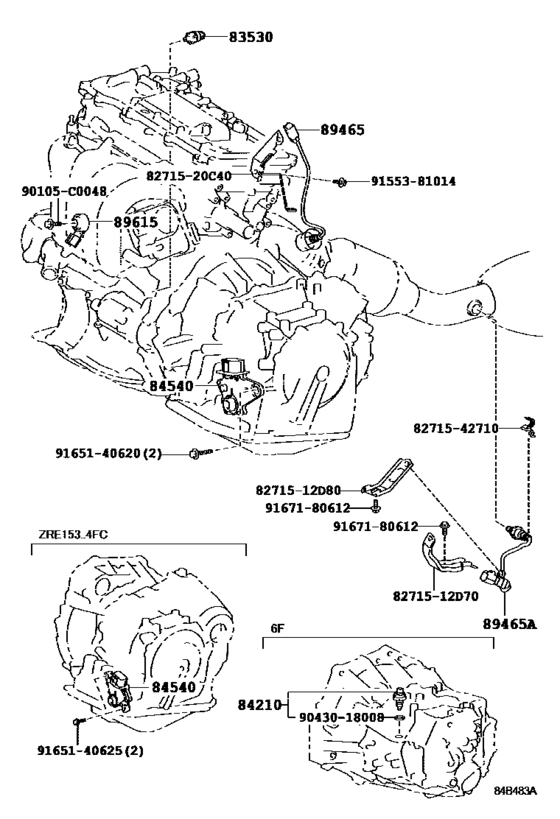

Switch & Relay & Computer ([12.2008 - ] ENGINE & TRANSMISSION (0812- )) Diagram Toyota COROLLA
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- ZRE152
- grade
- D
- ENGINE
- 2ZRFE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 03.2007
- To
- 11.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-05010
Switch Assy, Oil Pressure (For Engine)
[03.2007 - 12.2008] ZRE152 VALEO |
83530-05010 |
— | ||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[10.2011 - 10.2012] ZRE152 (L),DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[03.2007 - 12.2008] ZRE152 DENSO |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.2007 - 12.2008] ZRE152 DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[03.2007 - 12.2008] ZRE152 DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.2007 - 12.2008] ZRE152 YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[12.2008 - 04.2010] ZRE152..6F |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[12.2008 - 04.2010] ZRE152..6F |
84210-52050 |
from US $20.67 |
||
|
84210
|
84210
84210-52010 Switch Assy, Back-Up Lamp[03.2007 - 12.2008] ZRE152..6F |
84210-52010 |
from US $22.80 |
||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[05.2012 - 11.2013] ZRE152..6F |
84210-52050 |
from US $20.67 |
||
|
89465
|
89465
89467-12030 Sensor, Oxygen[03.2007 - 12.2008] ZRE152 |
89467-12030 |
US $190.08 |
||
|
89465A
|
89465A
89465-12800 Sensor, Oxygen[03.2007 - 12.2008] ZRE152 |
89465-12800 |
from US $139.12 |
||
|
89615
|
89615
89615-02020 Sensor, Knock Control[12.2008 - 04.2010] ZRE152..4FC;ZRE152..6F..D |
89615-02020 |
US $142.69 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[03.2007 - 12.2008] ZRE152 |
89615-20090 |
from US $36.02 |
||
|
90105C0048
|
90105C0048
90105-C0048
New Genuine Part
|
90105-C0048 |
— | ||
|
8271512D70
|
8271512D70
82715-12D70
Bracket,wiring Harness Clamp
|
82715-12D70 |
— | ||
|
8271512D80
|
8271512D80
82715-12D80
Bracket,wiring Harness Clamp
|
82715-12D80 |
— | ||
|
8271520C40
|
8271520C40
82715-20C40
Bracket,wiring Harness Clamp
|
82715-20C40 |
— | ||
|
8271542710
|
8271542710
82715-42710 Bracket,wiring Harness Clamp |
82715-42710 |
US $2.80 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9155381014
|
9155381014
91553-81014 New Genuine Part |
91553-81014 |
US $1.31 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
