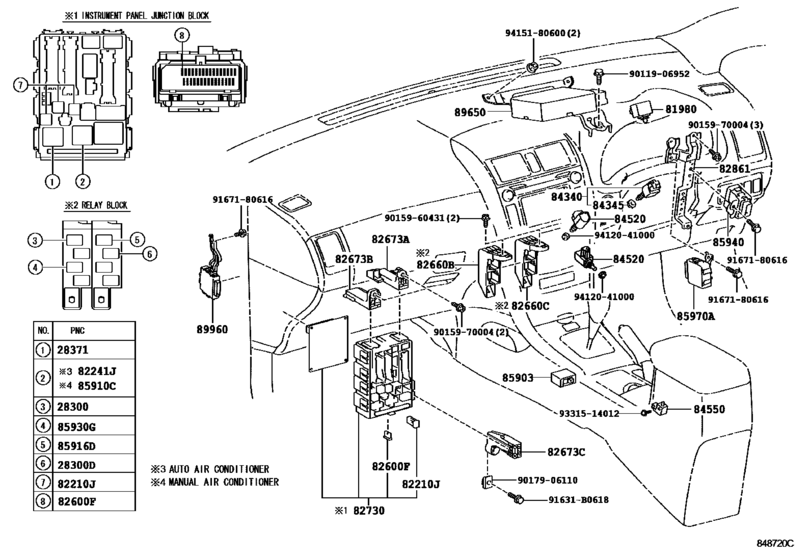

Switch & Relay & Computer ([03.2007 - ] COWL (0703- )) Diagram Toyota COROLLA
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- ZRE152
- grade
- D
- ENGINE
- 2ZRFE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 03.2007
- To
- 11.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-21020 Relay Assy, Starter[08.2013 - 11.2013] 2ZRFE,3ZRFE..ZRE15# |
28300-21020 |
from US $40.58 |
||
|
28300
|
28300
28300-28010
Relay Assy, Starter
[03.2007 - 12.2008] 2ZRFE..ZRE152 |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[03.2007 - 12.2008] 2ZRFE..ZRE152 |
28300-21020 |
from US $40.58 |
||
|
28371
|
28371
90987-02030 Relay, Ignition, No.1[03.2007 - 12.2008] 2ZRFE..ZRE152 |
90987-02030 |
from US $44.54 |
||
|
81980
|
81980
81980-46010 Flasher Assy, Turn Signal[03.2007 - 12.2008] ZRE152 |
81980-46010 |
from US $56.34 |
||
|
82210J
|
82210J
90982-08294 Fusible Link[03.2007 - 12.2008] ZRE152 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[03.2007 - 12.2008] ZRE152 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[03.2007 - 12.2008] ZRE152 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[03.2007 - 12.2008] ZRE152 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[03.2007 - 12.2008] ZRE152 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[03.2007 - 12.2008] ZRE152 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[03.2007 - 12.2008] ZRE152 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[03.2007 - 12.2008] ZRE152 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[03.2007 - 12.2008] ZRE152 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82660B
|
82660B
82755-12010 Block Assy, Relay[03.2007 - 12.2008] ZRE152 |
82755-12010 |
US $13.54 |
||
|
82660C
|
82660C
82755-12020 Block Assy, Relay[03.2007 - 12.2008] ZRE152 |
82755-12020 |
US $13.54 |
||
|
82673A
|
82673A
82673-12200 Bracket, Junction Block[03.2007 - 12.2008] ZRE152 |
82673-12200 |
US $11.07 |
||
|
82673B
|
82673B
82673-12210 Bracket, Junction Block[03.2007 - 12.2008] ZRE152 |
82673-12210 |
US $9.90 |
||
|
82673C
|
82673C
82673-12230 Bracket, Junction Block[03.2007 - 12.2008] ZRE152 |
82673-12230 |
US $9.46 |
||
|
82730
|
82730
82730-12B70
Block Assy, Instrument Panel Junction
[03.2007 - 12.2008] ZRE152 |
82730-12B70 |
— | ||
|
82730
|
82730
82730-12P90
Block Assy, Instrument Panel Junction
[04.2010 - 11.2013] ZRE152 |
82730-12P90 |
— | ||
|
84340
|
84340
84340-19025
Switch Assy, Stop Lamp
[03.2007 - 12.2008] ZRE152 |
84340-19025 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-19026 SWITCH ASSY, STOP[03.2007 - 12.2008] ZRE152 |
84340-19026 |
from US $21.28 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[03.2007 - 12.2008] ZRE152 |
84345-51010 |
from US $3.52 |
||
|
84520
|
84520
84520-42010 Switch Assy, Clutch Start[03.2007 - 12.2008] ZRE152..6F |
84520-42010 |
from US $34.35 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[03.2007 - 12.2008] ZRE152 |
84550-16060 |
from US $17.48 |
||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[03.2007 - 12.2008] ZRE152; ZRE152..N WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
90987-04010 |
US $42.71 |
||
|
85916D
|
85916D
90987-02027 Relay[03.2007 - 12.2008] ZRE152 FRONT FOG LAMP-WITH(FOG LAMP) |
90987-02027 |
from US $44.54 |
||
|
85930G
|
85930G
90987-02027 Relay[03.2007 - 12.2008] ZRE152 |
90987-02027 |
from US $44.54 |
||
|
89650
|
89650
89650-12380
Computer Assy, Power Steering
[03.2007 - 12.2008] ZRE152 |
89650-12380 |
— | ||
|
89650
|
89650
89650-12770
Computer Assy, Power Steering
[12.2008 - 04.2010] ZRE152..4FC;ZRE152..6F..D |
89650-12770 |
— | ||
| replacement | |||||
|
89650
|
89650
89650-12771
Computer Assy, Power Steering
[12.2008 - 04.2010] ZRE152..4FC;ZRE152..6F..D |
89650-12771 |
— | ||
|
89650
|
89650
89650-12A80
Computer Assy, Power Steering
[04.2010 - 02.2012] ZRE15# |
89650-12A80 |
— | ||
| replacement | |||||
|
89650
|
89650
89650-12A81
Computer Assy, Power Steering
[04.2010 - 02.2012] ZRE15# |
89650-12A81 |
— | ||
|
89650
|
89650
89650-12A81
Computer Assy, Power Steering
[03.2012 -] ZRE15# |
89650-12A81 |
— | ||
|
91631B0618
|
91631B0618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.86 |
||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $0.96 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.78 |
||
|
9015970004
|
9015970004
90159-70004 SCREW WWASHER |
90159-70004 |
US $0.69 |
||
|
9017906110
|
9017906110
90179-06110 New Genuine Part |
90179-06110 |
US $1.44 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
