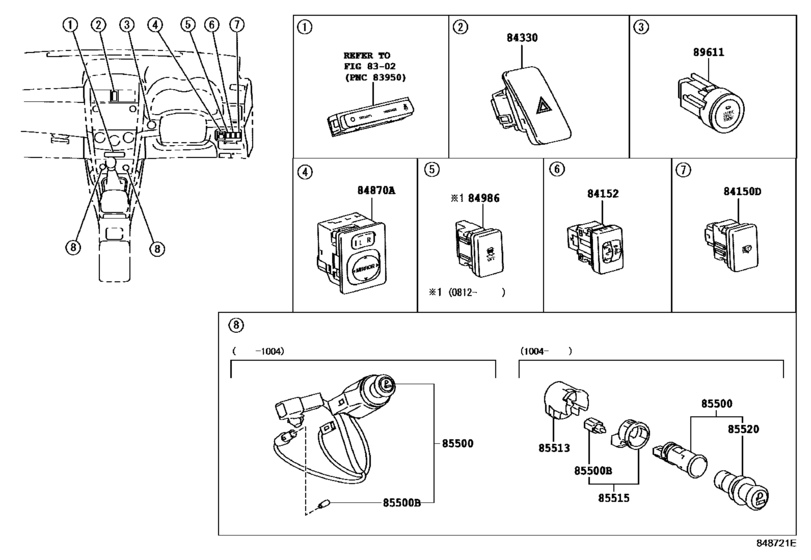

Switch & Relay & Computer ([03.2007 - ] INSTRUMENT PANEL (0703- )) Diagram Toyota COROLLA
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- ZRE152
- grade
- D
- ENGINE
- 2ZRFE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 03.2007
- To
- 11.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84152
|
84152
84152-12070 Switch, Headlamp Leveling[03.2007 - 12.2008] ZRE152; ZRE152..N HEADLAMP-DISCHARGE |
84152-12070 |
from US $50.38 |
||
| replacement | |||||
|
84152
|
84152
84152-12071 Switch, Headlamp Leveling[03.2007 - 12.2008] ZRE152; ZRE152..N HEADLAMP-DISCHARGE |
84152-12071 |
US $58.88 |
||
|
84330
|
84330
84332-12520 Switch Assy, Hazard Warning Signal[03.2007 - 12.2008] ZRE152 |
84332-12520 |
US $39.75 |
||
| replacement | |||||
|
84330
|
84330
84332-12521 Switch Assy, Hazard Warning Signal[03.2007 - 12.2008] ZRE152 |
84332-12521 |
US $39.75 |
||
|
84870A
|
84870A
84870-34010 Switch Assy, Outer Mirror[03.2007 - 12.2008] ZRE152 |
84870-34010 |
from US $57.15 |
||
|
84986
|
84986
84986-12010 Switch, Vehicle Stability Control[12.2008 - 04.2010] ZRE152..4FC;ZRE152..6F..D VSC-WITH(CANCEL SWITCH) |
84986-12010 |
US $39.75 |
||
| replacement | |||||
|
84986
|
84986
84986-12011 Switch, Vehicle Stability Control[12.2008 - 04.2010] ZRE152..4FC;ZRE152..6F..D VSC-WITH(CANCEL SWITCH) |
84986-12011 |
US $39.75 |
||
|
85500
|
85500
85500-12260 Lighter Assy, Cigarette[03.2007 - 12.2008] ZRE152 |
85500-12260 |
from US $50.17 |
||
|
85500
|
85500
85500-28080 Lighter Assy, Cigarette[04.2010 - 11.2013] ZRE15# |
85500-28080 |
US $38.30 |
||
|
85500B
|
85500B
90010-01030 Bulb, Key Cylinder Lamp[04.2010 -] ZRE15# 14V1.4W,W(ORANGE CAP) |
90010-01030 |
from US $2.81 |
||
|
85500B
|
85500B
90010-01163 Bulb, Cigarette Lighter[03.2007 - 12.2008] ZRE152 12V 1.2W,W(CAP) |
90010-01163 |
US $5.82 |
||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[04.2010 - 11.2013] ZRE15# |
85513-28010 |
from US $2.65 |
||
|
85515
|
85515
85515-22040 Stay, Cigarette Lighter Bezel[04.2010 - 11.2013] ZRE15# |
85515-22040 |
US $14.56 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[04.2010 -] ZRE15# |
85520-28010 |
from US $17.90 |
||
