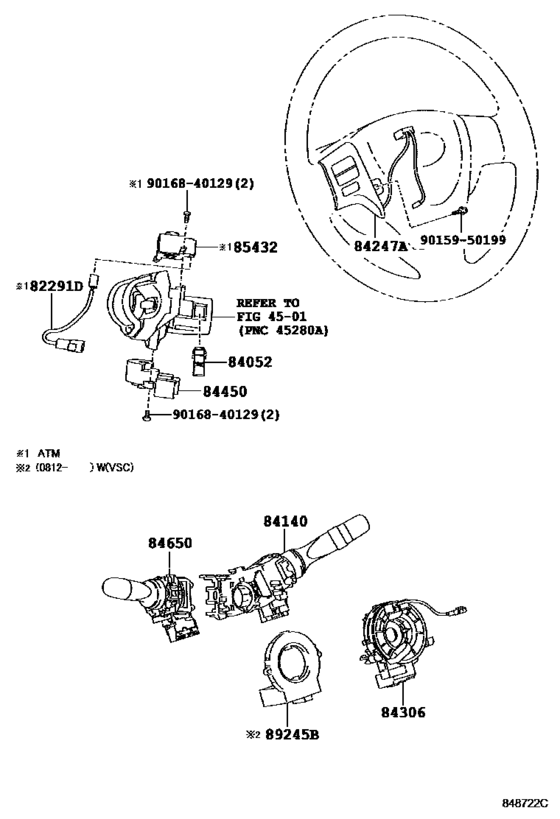

Switch & Relay & Computer ([03.2007 - 04.2010] STEERING (0703-1004)) Diagram Toyota COROLLA
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- ZRE152
- grade
- D
- ENGINE
- 2ZRFE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 03.2007
- To
- 11.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-71010 Switch Assy, Un-Lock Warning[03.2007 - 12.2008] ZRE152; ZRE152..N STARTING SYSTEM-PUSH BUTTON |
84052-71010 |
US $25.68 |
||
|
84140
|
84140
84140-12590 Switch Assy, Headlamp Dimmer[03.2007 - 12.2008] ZRE152 |
84140-12590 |
from US $71.37 |
||
|
84140
|
84140
84140-42030 Switch Assy, Headlamp Dimmer[02.2011 - 11.2013] ZRE152 |
84140-42030 |
from US $74.49 |
||
|
84140
|
84140
84140-42040 Switch Assy, Headlamp Dimmer[02.2011 - 11.2013] ZRE152 FRONT FOG LAMP-WITH |
84140-42040 |
US $112.48 |
||
|
84140
|
84140
84140-52100 Switch Assy, Headlamp Dimmer[03.2007 - 12.2008] ZRE152 FRONT FOG LAMP-WITH(FOG LAMP) |
84140-52100 |
US $103.60 |
||
|
84247A
|
84247A
84247-12040 Switch, Steering Pad, LhSTEERING PAD, LH [03.2007 - 12.2008] ZRE152 STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW) |
84247-12040 |
US $122.30 |
||
|
84247A
|
84247A
84247-12170
Switch, Steering Pad, Lh
[04.2010 - 11.2013] ZRE15#..E,N; ZRE152..D STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW) |
84247-12170 |
— | ||
|
84306
|
84306
84306-12100 Cable Sub-Assy, Spiral[03.2007 - 12.2008] ZRE152 |
84306-12100 |
from US $174.45 |
||
|
84306
|
84306
84306-12110 Cable Sub-Assy, Spiral[03.2007 - 12.2008] ZRE152 STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW) |
84306-12110 |
from US $168.44 |
||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[03.2007 - 12.2008] ZRE152; ZRE152..N STARTING SYSTEM-PUSH BUTTON |
84450-12200 |
from US $49.25 |
||
|
84650
|
84650
84652-52260
Switch Assy, Windshield Wiper
[03.2007 - 12.2008] ZRE152 |
84652-52260 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-52261 Switch Assy, Windshield Wiper[03.2007 - 12.2008] ZRE152 |
84652-52261 |
US $87.32 |
||
|
89245B
|
89245B
89245-12020
Sensor, Steering
[12.2008 - 04.2010] ZRE152 VSC-WITH(CANCEL SWITCH) |
89245-12020 |
— | ||
| replacement | |||||
|
89245B
|
89245B
89245-37010 Sensor, Steering[12.2008 - 04.2010] ZRE152 VSC-WITH(CANCEL SWITCH) |
89245-37010 |
US $194.40 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $0.96 |
||
