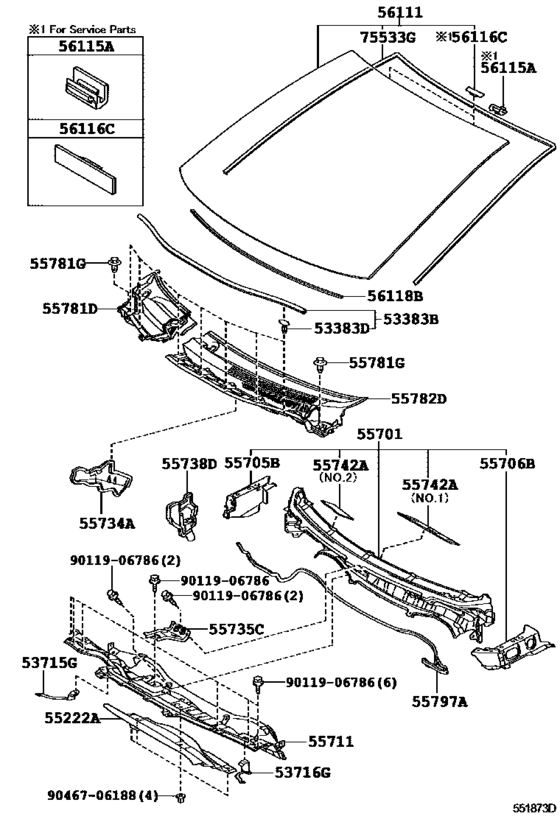

Cowl Panel & Windshield Glass ([03.2007 - ] (0703- )) Diagram Toyota COROLLA
- Year
- 2007 - 2012
- Sales region
- General
- Frame
- ZRE152
- grade
- TERRA
- ENGINE
- 2ZRFE
- TRANSMISSION
- ATM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 03.2007
- To
- 08.2012
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla HB
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383B
|
53383B
53383-12150 Seal, Hood To Cowl Top[03.2007 - 12.2008] ZRE152 |
53383-12150 |
US $11.21 |
||
|
53383D
|
53383D
67867-12150 Clip(For Hood Air Intake Duct Seal)[03.2007 - 12.2008] ZRE152 |
67867-12150 |
from US $1.60 |
||
|
53715G
|
53715G
53715-12061 Extension, Front Fender Apron, Rear Rh[03.2007 - 12.2008] ZRE152 |
53715-12061 |
US $9.03 |
||
|
53716G
|
53716G
53716-12071 Extension, Front Fender Apron, Rear Lh[03.2007 - 12.2008] ZRE152 |
53716-12071 |
US $9.03 |
||
|
55222A
|
55222A
55224-12010 Insulator, Dash Panel, Outer Center[03.2007 - 12.2008] ZRE152 |
55224-12010 |
US $58.09 |
||
|
55701
|
55701
55700-12A60 Panel Sub-Assy, Cowl[03.2007 - 12.2008] ZRE152 |
55700-12A60 |
US $259.17 |
||
|
55705B
|
55705B
55705-12070 Panel Sub-Assy, Cowl Top Side, Rh[03.2007 - 12.2008] ZRE152 |
55705-12070 |
US $43.97 |
||
|
55706B
|
55706B
55706-12080 Panel Sub-Assy, Cowl Top Side, Lh[03.2007 - 12.2008] ZRE152 |
55706-12080 |
US $43.97 |
||
|
55711
|
55711
55701-12A10 Panel, Cowl Top, Outer[03.2007 - 12.2008] ZRE152 |
55701-12A10 |
US $259.17 |
||
|
55734A
|
55734A
55734-12110 Plate, Water Guard, Rh[03.2007 - 12.2008] ZRE152 |
55734-12110 |
US $19.80 |
||
|
55735C
|
55735C
55735-12070 Reinforcement, Cowl Body Mounting, Rh[03.2007 - 12.2008] ZRE152 |
55735-12070 |
US $25.92 |
||
|
55738D
|
55738D
55738-12120 Seal, Heater Air Duct Splash Shield, No.2[03.2007 - 12.2008] ZRE152 |
55738-12120 |
US $22.71 |
||
|
55742A
|
55742A
55742-12130 Sheet, Cowl Top Insulator[03.2007 - 12.2008] ZRE152 NO.1 |
55742-12130 |
US $9.61 |
||
|
55742A
|
55742A
55743-12040 Sheet, Cowl Top Insulator[03.2007 - 12.2008] ZRE152 NO.2 |
55743-12040 |
US $4.95 |
||
|
55781D
|
55781D
55708-12310 Louver, Cowl Top Ventilator, Rh[03.2007 - 10.2007] ZRE152 |
55708-12310 |
US $135.41 |
||
| replacement | |||||
|
55781D
|
55781D
55708-12311 Louver, Cowl Top Ventilator, Rh[03.2007 - 10.2007] ZRE152 |
55708-12311 |
US $173.26 |
||
|
55781D
|
55781D
55708-12311 Louver, Cowl Top Ventilator, Rh[11.2007 - 12.2008] ZRE152 |
55708-12311 |
US $173.26 |
||
|
55781G
|
55781G
90467-07076-C0 Clip, Radiator Grille[03.2007 - 12.2008] ZRE152 BLACK |
90467-07076-C0 |
from US $0.99 |
||
|
55782D
|
55782D
55709-12090 Louver, Cowl Top Ventilator, Lh[03.2007 - 07.2008] ZRE152 |
55709-12090 |
US $179.09 |
||
| replacement | |||||
|
55782D
|
55782D
55709-12091 Louver, Cowl Top Ventilator, Lh[03.2007 - 07.2008] ZRE152 |
55709-12091 |
US $148.51 |
||
|
55782D
|
55782D
55709-12091 Louver, Cowl Top Ventilator, Lh[08.2008 - 12.2008] ZRE152 |
55709-12091 |
US $148.51 |
||
|
55797A
|
55797A
55797-12030 Seal, Cowl Water Extract[03.2007 - 12.2008] ZRE152 |
55797-12030 |
US $20.09 |
||
|
56111
|
56111
56101-12100
Glass, Windshield
[03.2007 - 12.2008] ZRE152 *LAM,T=4.76,GREEN |
56101-12100 |
— | ||
|
56111
|
56111
56101-12750
Glass, Windshield
[03.2010 - 08.2012] ZRE152..TERRA *LAM,T=4.76,GREEN |
56101-12750 |
— | ||
|
56115A
|
56115A
56115-30120 Stopper, Windshield Glass, No.1[03.2007 - 12.2008] ZRE152 |
56115-30120 |
from US $1.81 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[03.2007 - 12.2008] ZRE152 |
56116-22050 |
from US $1.38 |
||
|
56118B
|
56118B
56117-12290 Dam, Window Glass Adhesive, No.2[03.2007 - 12.2008] ZRE152 L=1089; ZRE152..SOL L=1089,INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
56117-12290 |
US $9.63 |
||
|
75533G
|
75533G
75533-12630 Moulding, Windshield, Outside[03.2007 - 12.2008] ZRE152 |
75533-12630 |
from US $55.95 |
||
|
9011906786
|
9011906786
90119-06786 BOLT WWASHER |
90119-06786 |
US $1.44 |
||
|
9046706188
|
9046706188
90467-06188 Retainer, Dash Panel Silencer |
90467-06188 |
US $2.56 |
||
