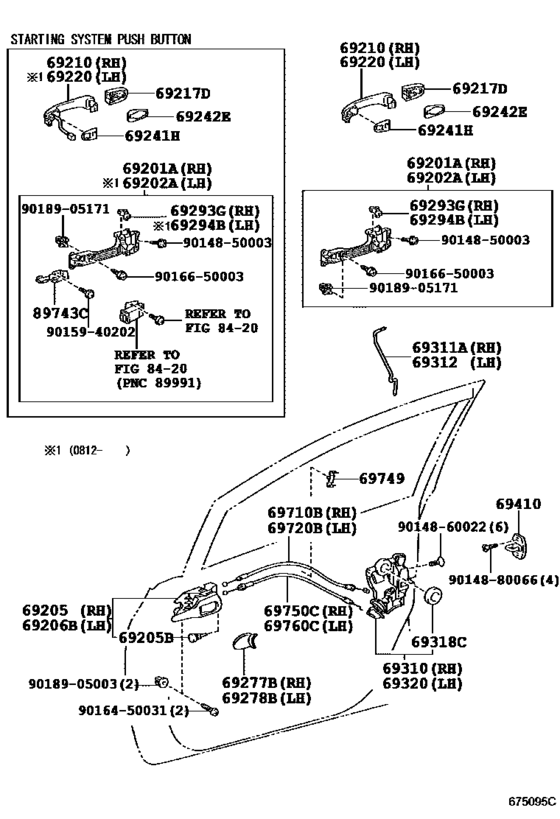

Front Door Lock & Handle ([03.2007 - ] (0703- )) Diagram Toyota COROLLA
- Year
- 2007 - 2012
- Sales region
- General
- Frame
- ZRE152
- grade
- TERRA
- ENGINE
- 2ZRFE
- TRANSMISSION
- ATM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 03.2007
- To
- 08.2012
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla HB
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69201A
|
69201A
69201-52040 Frame Sub-Assy, Front Door Outside Handle, Rh[03.2007 - 12.2008] ZRE152..TERRA |
69201-52040 |
from US $74.14 |
||
|
69202A
|
69202A
69202-52020 Frame Sub-Assy, Front Door Outside Handle, Lh[03.2007 - 12.2008] ZRE152 |
69202-52020 |
US $53.73 |
||
|
69205
|
69205
69205-12220-B4 Handle Sub-Assy, Front Door Inside, Rh[03.2007 - 12.2008] ZRE152..TERRA SILVER,TRIM1#; ZRE152..SOL SILVER,TRIM1#,4# |
69205-12220-B4 |
from US $36.29 |
||
|
69205
|
69205
69205-12220-B6 Handle Sub-Assy, Front Door Inside, RhFRONT DOOR INSIDE, RH [10.2009 - 08.2012] ZRE152..TERRA ORNAMENT SILVER,TRIM1#; ZRE152..SOL ORNAMENT SILVER,TRIM1#,4# |
69205-12220-B6 |
US $46.21 |
||
|
69205B
|
69205B
90541-04027 Cushion(For Front Door Inside Handle)[03.2007 - 12.2008] ZRE152 |
90541-04027 |
from US $1.60 |
||
|
69206B
|
69206B
69206-12220-B4 Handle Sub-Assy, Front Door Inside, Lh[03.2007 - 12.2008] ZRE152..TERRA SILVER,TRIM1#; ZRE152..SOL SILVER,TRIM1#,4# |
69206-12220-B4 |
US $28.39 |
||
|
69206B
|
69206B
69206-12220-B6 Handle Sub-Assy, Front Door Inside, LhFRONT DOOR INSIDE, LH [10.2009 - 08.2012] ZRE152..TERRA ORNAMENT SILVER,TRIM1#; ZRE152..SOL ORNAMENT SILVER,TRIM1#,4# |
69206-12220-B6 |
US $28.39 |
||
|
69210
|
69210
69211-12220-03 Handle Assy, Front Door, Outside Rh[03.2007 - 12.2008] ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE PEARL CS.,070 |
69211-12220-03 |
US $39.52 |
||
|
69210
|
69210
69211-12220-A0 Handle Assy, Front Door, Outside Rh[03.2007 - 12.2008] ZRE152..SOL SUPER WHITE 2,040; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,040 |
69211-12220-A0 |
from US $36.37 |
||
|
69210
|
69210
69211-12220-B2 Handle Assy, Front Door, Outside Rh[03.2007 - 12.2008] ZRE152..SOL SILVER ME.,1C0; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1C0 |
69211-12220-B2 |
US $37.99 |
||
|
69210
|
69210
69211-12220-C2 Handle Assy, Front Door, Outside Rh[03.2007 - 12.2008] ZRE152..SOL BLACK MC.,209; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLACK MC.,209 |
69211-12220-C2 |
US $24.78 |
||
|
69210
|
69210
69211-12220-P5 Handle Assy, Front Door, Outside Rh[03.2007 - 12.2008] ZRE152..SOL GRAY ME.,1G3; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAY ME.,1G3 |
69211-12220-P5 |
US $24.61 |
||
|
69210
|
69210
69211-12220-P6 Handle Assy, Front Door, Outside Rh[10.2009 - 12.2010] ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1F7 |
69211-12220-P6 |
from US $36.37 |
||
|
69210
|
69210
69211-12220-R2 Handle Assy, Front Door, Outside Rh[03.2007 - 12.2008] ZRE152..SOL LT.BLUE M.M.,8S1; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),LT.BLUE M.M.,8S1 |
69211-12220-R2 |
US $24.61 |
||
|
69210
|
69210
69211-12220-R7 Handle Assy, Front Door, Outside Rh[10.2009 - 12.2010] ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE ME.,8T4 |
69211-12220-R7 |
US $29.56 |
||
|
69210
|
69210
69211-12220-R8 Handle Assy, Front Door, Outside Rh[03.2007 - 12.2008] ZRE152..SOL DK.BLUE MC.,8S6; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE MC.,8S6 |
69211-12220-R8 |
US $24.61 |
||
|
69210
|
69210
69211-12220-V0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [03.2007 - 12.2008] ZRE152..SOL DK.BLUE ME.,8T8; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE ME.,8T8 |
69211-12220-V0 |
US $29.56 |
||
|
69210
|
69210
69211-12220-V2 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [10.2009 - 12.2010] ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE ME.,8T7 |
69211-12220-V2 |
US $24.61 |
||
|
69210
|
69210
69211-12220-X4 Handle Assy, Front Door, Outside Rh[03.2007 - 12.2008] ZRE152..SOL RED M.M.,3R3; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),RED M.M.,3R3 |
69211-12220-X4 |
US $24.61 |
||
|
69210
|
69210
69211-42010 Handle Assy, Front Door, Outside Rh[03.2007 - 12.2008] ZRE152..TERRA BLACK MATERIAL |
69211-42010 |
from US $24.78 |
||
|
69217D
|
69217D
69217-12030 Cover, Front Door Outside Handle[03.2007 - 12.2008] ZRE152..TERRA BLACK MATERIAL,PASSENGER SIDE |
69217-12030 |
US $8.48 |
||
|
69217D
|
69217D
69217-12040-A0 Cover, Front Door Outside Handle[03.2007 - 12.2008] ZRE152..SOL SUPER WHITE 2,040,PASSENGER SIDE; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,040,PASSEN GER SIDE |
69217-12040-A0 |
from US $10.19 |
||
|
69217D
|
69217D
69217-12040-B5 Cover, Front Door Outside Handle[03.2007 - 12.2008] ZRE152..SOL SILVER ME.,1C0,PASSENGER SIDE; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1C0,PASSENGER SIDE |
69217-12040-B5 |
US $12.23 |
||
|
69217D
|
69217D
69217-12040-C2 Cover, Back Door Outside Handle[03.2007 - 12.2008] ZRE152..SOL BLACK MC.,209,PASSENGER SIDE; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLACK MC.,209,PASSENGER SIDE |
69217-12040-C2 |
US $10.88 |
||
|
69217D
|
69217D
69217-12040-D9 Cover, Back Door Outside Handle[03.2007 - 12.2008] ZRE152..SOL RED M.M.,3R3,PASSENGER SIDE; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),RED M.M.,3R3,PASSENGER S IDE |
69217-12040-D9 |
US $10.19 |
||
|
69217D
|
69217D
69217-12040-J9 Cover, Front Door Outside Handle[03.2007 - 12.2008] ZRE152..SOL LT.BLUE M.M.,8S1,PASSENGER SIDE; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),LT.BLUE M.M.,8S1,PASSENG ER SIDE |
69217-12040-J9 |
US $10.19 |
||
|
69217D
|
69217D
69217-12040-P0 Cover, Back Door Outside Handle[03.2007 - 12.2008] ZRE152..SOL GRAY ME.,1G3,PASSENGER SIDE; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAY ME.,1G3,PASSENGER S IDE |
69217-12040-P0 |
US $10.19 |
||
|
69217D
|
69217D
69217-12040-P1 Cover, Back Door Outside Handle[10.2009 - 12.2010] ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1F7,PASSENGER SIDE |
69217-12040-P1 |
US $16.61 |
||
| replacement | |||||
|
69217D
|
69217D
69217-12040-B4 Cover, Front Door Outside Handle[10.2009 - 12.2010] ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1F7,PASSENGER SIDE |
69217-12040-B4 |
US $10.88 |
||
|
69217D
|
69217D
69217-12040-R4 Cover, Front Door Outside Handle[10.2009 - 12.2010] ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE ME.,8T4,PASSENGER S IDE |
69217-12040-R4 |
US $12.23 |
||
|
69217D
|
69217D
69217-12040-R5 Cover, Back Door Outside Handle[03.2007 - 12.2008] ZRE152..SOL DK.BLUE MC.,8S6,PASSENGER SIDE; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE MC.,8S6,PASSENGE R SIDE |
69217-12040-R5 |
US $10.19 |
||
|
69217D
|
69217D
69217-12040-R8 Cover, Front Door Outside HandleFRONT DOOR OUTSIDE HANDLE [03.2007 - 12.2008] ZRE152..SOL DK.BLUE ME.,8T8,PASSENGER SIDE; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE ME.,8T8,PASSENGE R SIDE |
69217-12040-R8 |
US $12.23 |
||
|
69217D
|
69217D
69217-12040-V1 Cover, Front Door Outside Handle[10.2009 - 12.2010] ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE ME.,8T7,PASSENGER S IDE |
69217-12040-V1 |
US $10.19 |
||
|
69217D
|
69217D
69217-42010 Cover, Front Door Outside Handle[03.2007 - 12.2008] ZRE152..TERRA BLACK MATERIAL,DRIVER SIDE |
69217-42010 |
US $6.40 |
||
|
69217D
|
69217D
69217-42020-A3 Cover, Front Door Outside Handle[03.2007 - 12.2008] ZRE152..SOL SUPER WHITE 2,040,DRIVER SIDE; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,040,DRIVER SIDE |
69217-42020-A3 |
US $5.97 |
||
|
69217D
|
69217D
69217-42020-B3 Cover, Front Door Outside Handle[03.2007 - 12.2008] ZRE152..SOL SILVER ME.,1C0,DRIVER SIDE; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1C0,DRIVER SI DE |
69217-42020-B3 |
US $7.28 |
||
|
69217D
|
69217D
69217-42020-C2 Cover, Front Door Outside Handle[03.2007 - 12.2008] ZRE152..SOL BLACK MC.,209,DRIVER SIDE; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLACK MC.,209,DRIVER SID E |
69217-42020-C2 |
from US $6.40 |
||
|
69217D
|
69217D
69217-42020-P5 Cover, Front Door Outside Handle[03.2007 - 12.2008] ZRE152..SOL GRAY ME.,1G3,DRIVER SIDE; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAY ME.,1G3,DRIVER SIDE |
69217-42020-P5 |
US $5.97 |
||
|
69217D
|
69217D
69217-42020-P6 Cover, Front Door Outside Handle[10.2009 - 12.2010] ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1F7,DRIVER SI DE |
69217-42020-P6 |
US $6.88 |
||
|
69217D
|
69217D
69217-42020-R4 Cover, Front Door Outside Handle[03.2007 - 12.2008] ZRE152..SOL LT.BLUE M.M.,8S1,DRIVER SIDE; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),LT.BLUE M.M.,8S1,DRIVER SIDE |
69217-42020-R4 |
US $5.97 |
||
|
69217D
|
69217D
69217-42020-R8 Cover, Front Door Outside Handle[10.2009 - 12.2010] ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE ME.,8T4,DRIVER SIDE |
69217-42020-R8 |
US $7.28 |
||
|
69217D
|
69217D
69217-42020-R9 Cover, Front Door Outside Handle[03.2007 - 12.2008] ZRE152..SOL DK.BLUE MC.,8S6,DRIVER SIDE; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE MC.,8S6,DRIVER S IDE |
69217-42020-R9 |
US $5.97 |
||
|
69217D
|
69217D
69217-42020-V1 Cover, Front Door Outside HandleFRONT DOOR OUTSIDE HANDLE [03.2007 - 12.2008] ZRE152..SOL DK.BLUE ME.,8T8,DRIVER SIDE; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE ME.,8T8,DRIVER S IDE |
69217-42020-V1 |
US $7.28 |
||
|
69217D
|
69217D
69217-42020-V4 Cover, Front Door Outside Handle[10.2009 - 12.2010] ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE ME.,8T7,DRIVER SIDE |
69217-42020-V4 |
US $5.97 |
||
|
69217D
|
69217D
69217-42020-X4 Cover, Front Door Outside Handle[03.2007 - 12.2008] ZRE152..SOL RED M.M.,3R3,DRIVER SIDE; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),RED M.M.,3R3,DRIVER SIDE |
69217-42020-X4 |
US $5.97 |
||
|
69220
|
69220
69211-12220-A0 Handle Assy, Front Door, Outside Rh[03.2007 - 12.2008] ZRE152..SOL SUPER WHITE 2,040; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,040 |
69211-12220-A0 |
from US $36.37 |
||
|
69220
|
69220
69211-12220-B2 Handle Assy, Front Door, Outside Rh[03.2007 - 12.2008] ZRE152..SOL SILVER ME.,1C0; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1C0 |
69211-12220-B2 |
US $37.99 |
||
|
69220
|
69220
69211-12220-C2 Handle Assy, Front Door, Outside Rh[03.2007 - 12.2008] ZRE152..SOL BLACK MC.,209; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLACK MC.,209 |
69211-12220-C2 |
US $24.78 |
||
|
69220
|
69220
69211-12220-P5 Handle Assy, Front Door, Outside Rh[03.2007 - 12.2008] ZRE152..SOL GRAY ME.,1G3; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAY ME.,1G3 |
69211-12220-P5 |
US $24.61 |
||
|
69220
|
69220
69211-12220-P6 Handle Assy, Front Door, Outside Rh[10.2009 - 12.2010] ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1F7 |
69211-12220-P6 |
from US $36.37 |
||
|
69220
|
69220
69211-12220-R2 Handle Assy, Front Door, Outside Rh[03.2007 - 12.2008] ZRE152..SOL LT.BLUE M.M.,8S1; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),LT.BLUE M.M.,8S1 |
69211-12220-R2 |
US $24.61 |
||
|
69220
|
69220
69211-12220-R7 Handle Assy, Front Door, Outside Rh[10.2009 - 12.2010] ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE ME.,8T4 |
69211-12220-R7 |
US $29.56 |
||
|
69220
|
69220
69211-12220-R8 Handle Assy, Front Door, Outside Rh[03.2007 - 12.2008] ZRE152..SOL DK.BLUE MC.,8S6; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE MC.,8S6 |
69211-12220-R8 |
US $24.61 |
||
|
69220
|
69220
69211-12220-V0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [03.2007 - 12.2008] ZRE152..SOL DK.BLUE ME.,8T8; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE ME.,8T8 |
69211-12220-V0 |
US $29.56 |
||
|
69220
|
69220
69211-12220-V2 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [10.2009 - 12.2010] ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE ME.,8T7 |
69211-12220-V2 |
US $24.61 |
||
|
69220
|
69220
69211-12220-X4 Handle Assy, Front Door, Outside Rh[03.2007 - 12.2008] ZRE152..SOL RED M.M.,3R3; ZRE152..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),RED M.M.,3R3 |
69211-12220-X4 |
US $24.61 |
||
|
69220
|
69220
69211-42010 Handle Assy, Front Door, Outside Rh[03.2007 - 12.2008] ZRE152..TERRA BLACK MATERIAL |
69211-42010 |
from US $24.78 |
||
|
69241H
|
69241H
69241-42020 Pad, Front Door Outside Handle, Rh[03.2007 - 12.2008] ZRE152 |
69241-42020 |
from US $6.40 |
||
|
69242E
|
69242E
69242-42010 Pad, Front Door Outside Handle, Lh[03.2007 - 08.2007] ZRE152 |
69242-42010 |
from US $6.34 |
||
|
69242E
|
69242E
69242-52020 Pad, Front Door Outside Handle, Rear[09.2007 - 12.2008] ZRE152 |
69242-52020 |
from US $6.40 |
||
|
69277B
|
69277B
69277-12150-B0 Bezel, Front Door Inside Handle, Rh[03.2007 - 12.2008] ZRE152 DK.GRAY,TRIM1# |
69277-12150-B0 |
US $3.79 |
||
|
69278B
|
69278B
69278-12150-B0 Bezel, Front Door Inside Handle, Lh[03.2007 - 12.2008] ZRE152 DK.GRAY,TRIM1# |
69278-12150-B0 |
US $3.79 |
||
|
69293G
|
69293G
69293-12030 Snap, Front Door Outside Handle[03.2007 - 12.2008] ZRE152 |
69293-12030 |
from US $2.09 |
||
|
69294B
|
69294B
69293-12040 Snap, Front Door Outside Handle[03.2007 - 12.2008] ZRE152 |
69293-12040 |
from US $2 |
||
|
69310
|
69310
69030-42210 Lock Assy, Front Door W/motor, Rh[03.2007 - 12.2008] ZRE152..TERRA |
69030-42210 |
US $180 |
||
|
69311A
|
69311A
69311-12150 Rod, Front Door Lock Open, Rh[03.2007 - 12.2008] ZRE152 |
69311-12150 |
US $7.57 |
||
|
69312
|
69312
69312-12150 Rod, Front Door Lock Open, Lh[03.2007 - 12.2008] ZRE152 |
69312-12150 |
US $7.57 |
||
|
69318C
|
69318C
69318-51010 Seal, Front Door Lock Hole, Rh[03.2007 - 12.2008] ZRE152 |
69318-51010 |
from US $1.64 |
||
|
69320
|
69320
69040-12490 Lock Assy, Front Door W/motor, Lh[03.2007 - 12.2008] ZRE152..TERRA |
69040-12490 |
US $185.76 |
||
|
69410
|
69410
69410-33010 Plate Assy, Front Door Lock Striker[03.2007 - 12.2008] ZRE152 |
69410-33010 |
from US $18.62 |
||
|
69710B
|
69710B
69710-12110 Cable Assy, Front Door Lock Remote Control, Rh[03.2007 - 12.2008] ZRE152 |
69710-12110 |
US $27.36 |
||
|
69720B
|
69720B
69710-12110 Cable Assy, Front Door Lock Remote Control, Rh[03.2007 - 12.2008] ZRE152 |
69710-12110 |
US $27.36 |
||
|
69749
|
69749
69749-32040 Clamp, Front Door Lock Link[03.2007 - 12.2008] ZRE152 |
69749-32040 |
US $3.36 |
||
|
69750C
|
69750C
69750-12130 Cable Assy, Front Door Inside Locking, Rh[03.2007 - 12.2008] ZRE152 |
69750-12130 |
US $27.36 |
||
|
69760C
|
69760C
69750-12130 Cable Assy, Front Door Inside Locking, Rh[03.2007 - 12.2008] ZRE152 |
69750-12130 |
US $27.36 |
||
|
9014850003
|
9014850003
90148-50003 Screw Hex Lobular |
90148-50003 |
from US $0.68 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.53 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9014880066
|
9014880066
90148-80066 SCREW HEXALOBULAR |
90148-80066 |
from US $0.68 |
||
|
9015940202
|
9015940202
90159-40202 SCREW WWASHER |
90159-40202 |
US $0.96 |
||
|
9016450031
|
9016450031
90164-50031 SCREW BINDING |
90164-50031 |
from US $0.68 |
||
|
9016650003
|
9016650003
90166-50003 New Genuine Part |
90166-50003 |
US $0.73 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.19 |
||
|
9018905171
|
9018905171
90189-05171 New Genuine Part |
90189-05171 |
US $1.92 |
||
