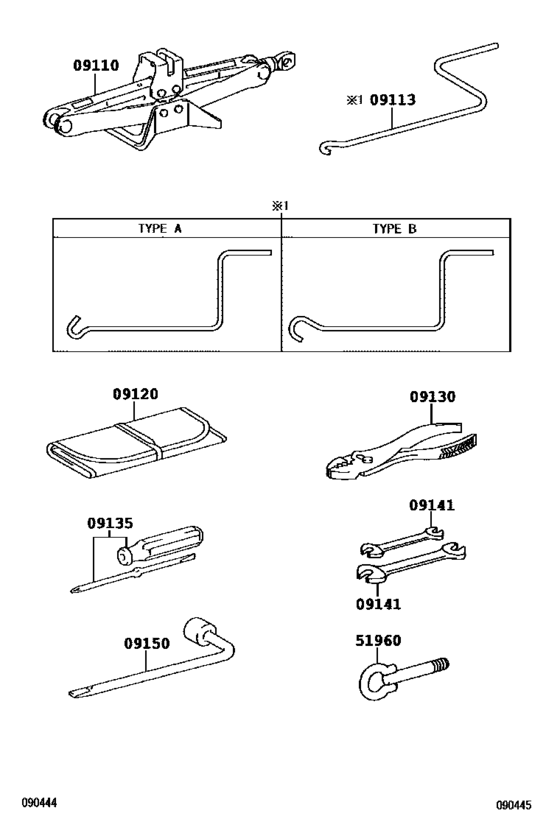

Standard Tool ([03.2007 - ] (0703- )) Diagram Toyota COROLLA
- Year
- 2007 - 2012
- Sales region
- General
- Frame
- ZRE152
- grade
- TERRA
- ENGINE
- 2ZRFE
- TRANSMISSION
- ATM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 03.2007
- To
- 08.2012
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla HB
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
09110
|
09110
09110-12080
Jack Assy
[01.2008 - 12.2008] ZRE152 |
09110-12080 |
— | ||
| replacement | |||||
|
09110
|
09110
09110-12210
Jack Assy
[01.2008 - 12.2008] ZRE152 |
09110-12210 |
— | ||
|
09110
|
09110
09110-12210
Jack Assy
[10.2010 -] ZRE152 |
09110-12210 |
— | ||
|
09110
|
09110
09111-12170
Jack Assy
[03.2007 - 12.2007] ZRE152 |
09111-12170 |
— | ||
| replacement | |||||
|
09110
|
09110
09110-12210
Jack Assy
[03.2007 - 12.2007] ZRE152 |
09110-12210 |
— | ||
|
09110
|
09110
09111-12220
Jack Assy
[01.2009 - 10.2009] ZRE152 |
09111-12220 |
— | ||
| replacement | |||||
|
09110
|
09110
09110-12210
Jack Assy
[01.2009 - 10.2009] ZRE152 |
09110-12210 |
— | ||
|
09113
|
09113
09113-20040
Handle, Jack
[03.2007 - 12.2008] ZRE152 TYPE A:REFER ILLUST. |
09113-20040 |
— | ||
| replacement | |||||
|
09113
|
09113
09113-20050 Handle, Jack[03.2007 - 12.2008] ZRE152 TYPE A:REFER ILLUST. |
09113-20050 |
from US $7.20 |
||
|
09113
|
09113
09113-20050 Handle, Jack[11.2011 -] ZRE152 TYPE B:REFER ILLUST. |
09113-20050 |
from US $7.20 |
||
|
09113
|
09113
09113-52010 Handle, Jack[03.2007 - 12.2008] ZRE152 TYPE B:REFER ILLUST. |
09113-52010 |
US $7.20 |
||
|
09120
|
09120
09120-16030 Tool Bag (Type A) BLACK, No Toyota Label[03.2007 - 12.2008] ZRE152 |
09120-16030 |
US $7.20 |
||
|
09130
|
09130
99913-11500 Pliers (China)No Toyota stamp [03.2007 - 12.2008] ZRE152 |
99913-11500 |
US $6.40 |
||
|
09135
|
09135
99915-10700 Driver, ScrewNo Toyota stamp [03.2007 - 12.2008] ZRE152 |
99915-10700 |
from US $7.36 |
||
| replacement | |||||
|
09135
|
09135
90089-99009 Driver, Screw (ATC) (Thailand)Screw Driver (ATC) [03.2007 - 12.2008] ZRE152 |
90089-99009 |
from US $2.28 |
||
|
09141
|
09141
99914-10810 Spanner (China)No Toyota stamp [03.2007 - 12.2008] ZRE152 8 X 10 |
99914-10810 |
from US $3.84 |
||
| replacement | |||||
|
09141
|
09141
09141-0K030 Spanner (ATC) (Thailand)8x10 [03.2007 - 12.2008] ZRE152 8 X 10 |
09141-0K030 |
from US $6.99 |
||
|
09141
|
09141
99914-11214 Spanner (China)No Toyota stamp [03.2007 - 12.2008] ZRE152 12 X 14 |
99914-11214 |
from US $6.40 |
||
| replacement | |||||
|
09141
|
09141
09141-0K040 Spanner (Thailand)[03.2007 - 12.2008] ZRE152 12 X 14 |
09141-0K040 |
US $10.48 |
||
|
09150
|
09150
09150-35070 Wrench, Hub Nut Box[03.2007 - 12.2008] ZRE152 |
09150-35070 |
US $17.48 |
||
|
51960
|
51960
51960-28020 Hook Assy, Front[03.2007 - 12.2008] ZRE152 |
51960-28020 |
US $19.51 |
||
