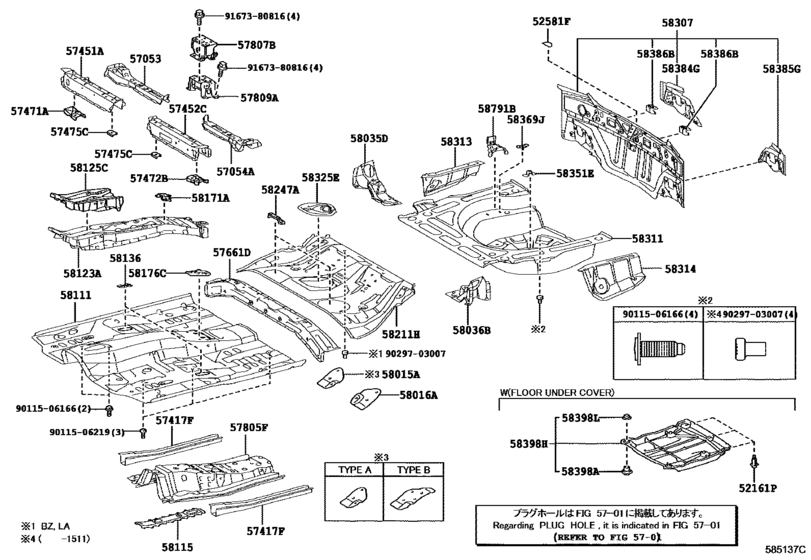

Floor Pan & Lower Back Panel ([03.2014 - ] (1403- )) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- ZRE173
- body
- SED
- ENGINE
- 3ZRFBE
- TRANSMISSION
- CVT
- DESTINATION
- BZ
- Model
- COROLLA (S.AMERICA)
- From
- 03.2014
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- LHD
- Fuel Induction
- HTWCF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52581F
|
52581F
52581-13030 Protector, Rear Bumper[03.2014 - 08.2017] ZRE17# |
52581-13030 |
US $4.64 |
||
|
57053
|
57053
57053-02070
Reinforcement Sub-Assy, Front Floor Cross Member, Rh
[03.2014 - 08.2017] ZRE17# |
57053-02070 |
— | ||
|
57054A
|
57054A
57054-02060
Reinforcement Sub-Assy, Front Floor Cross Member, Lh
[03.2014 - 08.2017] ZRE17# |
57054-02060 |
— | ||
|
57417F
|
57417F
57417-02190
Reinforcement, Front Floor Under, Rh
[03.2014 - 08.2017] ZRE17# |
57417-02190 |
— | ||
|
57451A
|
57451A
57451-02230
Member, Front Floor Cross, Rh
[03.2014 - 03.2017] ZRE17#..BZ,LA |
57451-02230 |
— | ||
|
57452C
|
57452C
57452-02160
Member, Front Floor Cross, Lh
[03.2014 - 03.2017] ZRE17#..BZ,LA |
57452-02160 |
— | ||
|
57471A
|
57471A
57471-02080
Reinforce, Seat Belt Anchor To Floor Member
[03.2014 - 08.2017] ZRE17# |
57471-02080 |
— | ||
|
57472B
|
57472B
57472-02070
Reinforce, Seat Belt Anchor To Floor Member, Lh
[03.2014 - 08.2017] ZRE17# |
57472-02070 |
— | ||
|
57475C
|
57475C
57475-02090
Plate, Front Floor Crossmember
[03.2014 - 08.2017] ZRE17# |
57475-02090 |
— | ||
|
57661D
|
57661D
57661-02140
Member, Rear Floor Cross, Front
[03.2014 - 08.2017] ZRE17# |
57661-02140 |
— | ||
|
57805F
|
57805F
57805-02150
Reinforcement Sub-Assy, Belt Anchor, No.1
[03.2014 - 01.2016] ZRE17# |
57805-02150 |
— | ||
| replacement | |||||
|
57805F
|
57805F
57805-02151
Reinforcement Sub-Assy, Belt Anchor, No.1
[03.2014 - 01.2016] ZRE17# |
57805-02151 |
— | ||
|
57805F
|
57805F
57805-02151
Reinforcement Sub-Assy, Belt Anchor, No.1
[01.2016 - 08.2017] ZRE17# |
57805-02151 |
— | ||
|
57807B
|
57807B
57807-02050
Reinforcement Sub-Assy, Belt Anchor, No.2
[03.2014 - 08.2017] ZRE17# |
57807-02050 |
— | ||
|
57809A
|
57809A
57809-02050
Reinforcement Sub-Assy, Belt Anchor, No.3
[03.2014 - 08.2017] ZRE17# |
57809-02050 |
— | ||
|
58015A
|
58015A
58015-02140
Reinforce Sub-Assy, Belt Anchor, No.3 Rh
[03.2014 - 08.2017] ZRE172..LA;ZRE173..E,N TYPE B:REFER ILLUST. |
58015-02140 |
— | ||
|
58016A
|
58016A
58016-02110
Reinforce Sub-Assy, Belt Anchor, No.3 Lh
[03.2014 - 08.2017] ZRE17# |
58016-02110 |
— | ||
|
58035D
|
58035D
58035-02030
Extension Sub-Assy, Rear Floor Side Panel, Rh
[03.2014 - 03.2017] ZRE17#..BZ,LA |
58035-02030 |
— | ||
|
58036B
|
58036B
58036-02030
Extension Sub-Assy, Rear Floor Side Panel, Lh
[03.2014 - 03.2017] ZRE17#..BZ,LA |
58036-02030 |
— | ||
|
58111
|
58111
58111-02935
Pan, Front Floor
[03.2014 - 01.2016] ZRE17# |
58111-02935 |
— | ||
|
58111
|
58111
58111-02941
Pan, Front Floor
[01.2016 - 08.2017] ZRE17# |
58111-02941 |
— | ||
|
58115
|
58115
58115-02030
Reinforcement, Front Floor Panel, Front
[03.2014 - 08.2017] ZRE17# |
58115-02030 |
— | ||
|
58123A
|
58123A
58123-02130
Support, Shift & Select Lever
[03.2014 - 01.2016] ZRE17# |
58123-02130 |
— | ||
| replacement | |||||
|
58123A
|
58123A
58123-02131
Support, Shift & Select Lever
[03.2014 - 01.2016] ZRE17# |
58123-02131 |
— | ||
|
58123A
|
58123A
58123-02131
Support, Shift & Select Lever
[01.2016 - 08.2017] ZRE17# |
58123-02131 |
— | ||
|
58125C
|
58125C
58125-02020
Bracket, Front Floor To Cowl Brace Mounting
[03.2014 - 08.2017] ZRE17# |
58125-02020 |
— | ||
|
58136
|
58136
58136-02070
Cover, Front Floor Hole
[03.2014 - 08.2017] ZRE17# |
58136-02070 |
— | ||
|
58171A
|
58171A
58171-02120
Reinforce, Parking Brake Base
[03.2014 - 08.2017] ZRE17# |
58171-02120 |
— | ||
|
58176C
|
58176C
58176-12030 Reinforcement, Parking Brake Base, No.1[03.2014 - 08.2017] ZRE17# |
58176-12030 |
US $5.24 |
||
|
58211H
|
58211H
58211-02390
Pan, Center Floor
[03.2014 - 03.2017] ZRE172..LA;ZRE173..BZ; ZRE172..BZ UP GRADE PACKAGE |
58211-02390 |
— | ||
|
58247A
|
58247A
58247-02170
Reinforcement, Rear Seat Cushion Hinge, Rh
[03.2014 - 08.2017] ZRE17# |
58247-02170 |
— | ||
|
58307
|
58307
58307-02390
Panel Sub-Assy, Body Lower Back
[03.2014 - 03.2017] ZRE17#..E |
58307-02390 |
— | ||
|
58311
|
58311
58311-02180
Pan, Rear Floor
[03.2014 - 03.2017] ZRE173..E;ZRE172..LA |
58311-02180 |
— | ||
|
58313
|
58313
58313-12300
Panel, Rear Floor Side, Rh
[03.2014 - 08.2017] ZRE17# |
58313-12300 |
— | ||
|
58314
|
58314
58314-12300 Panel, Rear Floor Side, Lh[03.2014 - 08.2017] ZRE17# |
58314-12300 |
US $16.65 |
||
|
58325E
|
58325E
58325-02140
Cover, Rear Floor Service Hole
[03.2014 - 08.2017] ZRE17# |
58325-02140 |
— | ||
|
58351E
|
58351E
58351-33010 Bracket Sub-Assy, Spare Wheel Clamp[03.2014 - 08.2017] ZRE17# |
58351-33010 |
US $6.56 |
||
|
58369J
|
58369J
58369-12020 Bracket, Fuel Tube, No.3[03.2014 - 08.2017] ZRE17# |
58369-12020 |
US $2.91 |
||
|
58384G
|
58384G
58384-02200
Gusset, Lower Back, Upper Rh
[03.2014 - 08.2017] ZRE17# |
58384-02200 |
— | ||
|
58385G
|
58385G
58385-02170
Gusset, Lower Back, Upper Lh
[03.2014 - 08.2017] ZRE17# |
58385-02170 |
— | ||
|
58386B
|
58386B
58386-02090
Bracket, Rear Bumper Cover, No.2
[03.2014 - 08.2017] ZRE17# |
58386-02090 |
— | ||
|
58791B
|
58791B
58791-02020
Carrier, Jack
[03.2014 - 08.2017] ZRE17# |
58791-02020 |
— | ||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9029703007
|
9029703007
90297-03007 Retainer, Rear Heater Mounting |
90297-03007 |
US $0.73 |
||
|
9167380816
|
9167380816
91673-80816 Bolt (For Transmission Control Cable Bracket) |
91673-80816 |
from US $0.72 |
||
