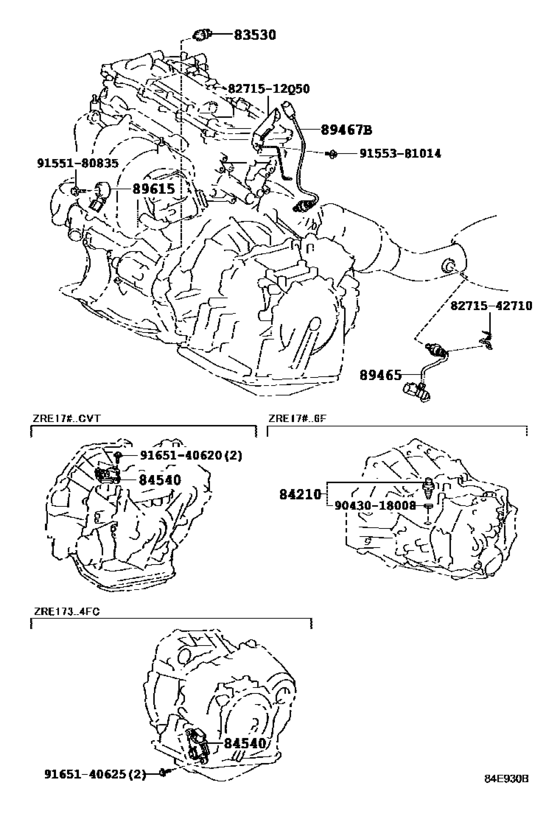

Switch & Relay & Computer ([03.2014 - ] ENGINE & TRANSMISSION (1403- )) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- ZRE173
- body
- SED
- ENGINE
- 3ZRFBE
- TRANSMISSION
- CVT
- DESTINATION
- BZ
- Model
- COROLLA (S.AMERICA)
- From
- 03.2014
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- LHD
- Fuel Induction
- HTWCF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[03.2014 - 08.2017] ZRE17# DENSO |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.2014 - 08.2017] ZRE17# DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[03.2014 - 08.2017] ZRE17# DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.2014 - 08.2017] ZRE17# YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84540
|
84540
84540-52070 Switch Assy, Neutral Start[03.2014 - 03.2017] ZRE17#..CVT |
84540-52070 |
from US $112.48 |
||
|
89465
|
89465
89465-12A80
Sensor, Oxygen
[03.2014 - 03.2017] ZRE17#..BZ |
89465-12A80 |
— | ||
|
89467B
|
89467B
89467-12260 Sensor, Air Fuel Ratio[03.2014 - 03.2017] ZRE17#..BZ |
89467-12260 |
US $146.52 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[03.2014 - 08.2017] ZRE17# |
89615-20090 |
from US $36.02 |
||
|
8271512Q50
|
8271512Q50
82715-12Q50
Bracket,wiring Harness Clamp
|
82715-12Q50 |
— | ||
|
8271542710
|
8271542710
82715-42710 Bracket,wiring Harness Clamp |
82715-42710 |
US $2.80 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.84 |
||
|
9155381014
|
9155381014
91553-81014 New Genuine Part |
91553-81014 |
US $1.31 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
