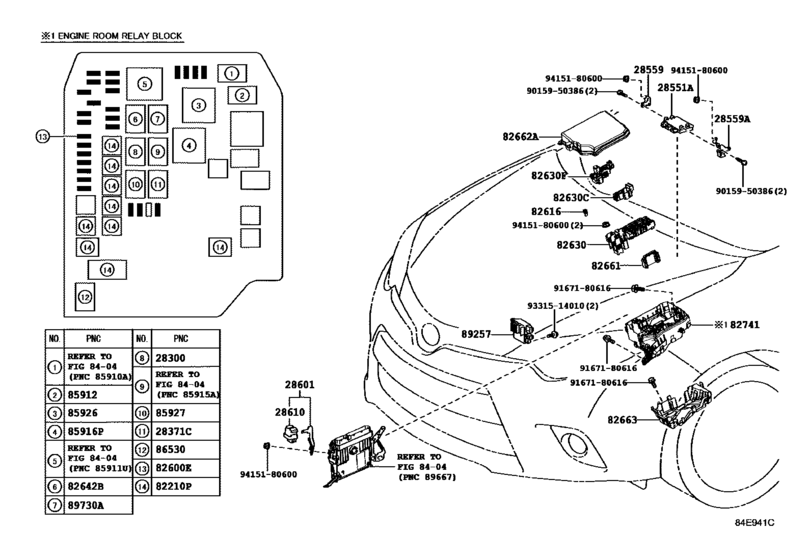

Switch & Relay & Computer ([03.2014 - ] ENGINE ROOM (1403- )) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- ZRE173
- body
- SED
- ENGINE
- 3ZRFBE
- TRANSMISSION
- CVT
- DESTINATION
- BZ
- Model
- COROLLA (S.AMERICA)
- From
- 03.2014
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- LHD
- Fuel Induction
- HTWCF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-21020 Relay Assy, Starter[07.2014 - 03.2017] 2ZR#,3ZRFBE..ZRE17# |
28300-21020 |
from US $40.58 |
||
|
28300
|
28300
28300-28010
Relay Assy, Starter
[03.2014 - 06.2014] 2ZR#,3ZRFBE..ZRE17# |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[03.2014 - 06.2014] 2ZR#,3ZRFBE..ZRE17# |
28300-21020 |
from US $40.58 |
||
|
28371C
|
28371C
90080-87021
Relay, Lamp Cut
[03.2014 - 08.2017] 2ZR#,3ZR#..ZRE17# |
90080-87021 |
— | ||
|
28551A
|
28551A
28551-0T010
Controller, Heated Injector
[03.2014 - 03.2017] 2ZRFBE,3ZRFBE..ZRE17# |
28551-0T010 |
— | ||
|
28559
|
28559
28559-0T010
Bracket, Glow Plug Controller, No.1
[03.2014 - 03.2017] 2ZRFBE,3ZRFBE..ZRE17# |
28559-0T010 |
— | ||
|
28559A
|
28559A
28559-0T020
Bracket, Glow Plug Controller, No.2
[03.2014 - 03.2017] 2ZRFBE,3ZRFBE..ZRE17# |
28559-0T020 |
— | ||
|
28601
|
28601
28601-37010
Glow Sub-Assy, Plug Relay Set
[03.2014 - 03.2017] 2ZRFBE,3ZRFBE..ZRE17# |
28601-37010 |
— | ||
|
28610
|
28610
28610-67010 Relay Assy, Glow Plug[03.2014 - 03.2017] 2ZRFBE,3ZRFBE..ZRE17# |
28610-67010 |
from US $42.71 |
||
|
82210P
|
82210P
90982-08274 Fusible Link[03.2014 - 08.2017] ZRE17# 120A,TERMINAL:MALE |
90982-08274 |
from US $7.68 |
||
|
82210P
|
82210P
90982-08294 Fusible Link[03.2014 - 08.2017] ZRE17# 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08295 Fusible Link[03.2014 - 08.2017] ZRE17# 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08296 Fusible Link[03.2014 - 08.2017] ZRE17# 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08305 Fusible Link[03.2014 - 08.2017] ZRE17# 80A,TERMINAL:FEMALE |
90982-08305 |
US $6.24 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[03.2014 - 08.2017] ZRE17# 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[03.2014 - 08.2017] ZRE17# 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[03.2014 - 08.2017] ZRE17# 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[03.2014 - 08.2017] ZRE17# 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09024 Instrument Panel Fuse[03.2014 - 08.2017] ZRE17# 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[03.2014 - 08.2017] ZRE17# 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[03.2014 - 08.2017] ZRE17# |
82616-58010 |
from US $2.40 |
||
|
82630
|
82630
82631-12040 Holder Assy, Fuse[03.2014 - 08.2017] ZRE17# |
82631-12040 |
US $49.94 |
||
|
82630C
|
82630C
82631-12060 Holder Assy, Fuse[03.2014 - 08.2017] ZRE17# |
82631-12060 |
US $12.96 |
||
|
82630F
|
82630F
82631-12110
Holder, Fuse
[03.2014 - 03.2017] ZRE17#..BZ |
82631-12110 |
— | ||
|
82642B
|
82642B
90080-87021
Relay, Lamp Cut
[03.2017 -] ZRE172..LA;ZRE173..BZ |
90080-87021 |
— | ||
|
82661
|
82661
82661-12330 Cover, Relay Block, No.1[03.2014 - 08.2017] ZRE17# |
82661-12330 |
US $7.51 |
||
|
82662A
|
82662A
82662-02870
Cover, Relay Block, Upper, No.1
[03.2014 - 03.2017] ZRE17#..BZ,LA |
82662-02870 |
— | ||
|
82663
|
82663
82663-12140 Cover, Relay Block, Lower[03.2014 - 08.2017] ZRE17# |
82663-12140 |
US $31.53 |
||
|
82741
|
82741
82741-12120 Block, Engine Room Relay[03.2014 - 08.2017] ZRE17# |
82741-12120 |
US $58.40 |
||
|
85912
|
85912
90080-87020
Relay, Cooling Fan
[03.2014 - 03.2017] ZRE17# TYCO |
90080-87020 |
— | ||
|
85912
|
85912
90987-04004 Relay, Starter Cut[03.2014 - 08.2017] ZRE17# DENSO |
90987-04004 |
from US $42.71 |
||
|
85916P
|
85916P
90987-02025 Relay[03.2014 - 08.2017] ZRE17# |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-02025 Relay[03.2014 - 08.2017] ZRE17# |
90987-02025 |
from US $44.54 |
||
|
85927
|
85927
90987-02027 Relay[03.2014 - 08.2017] ZRE17# |
90987-02027 |
from US $31.43 |
||
|
86530
|
86530
90080-87021
Relay, Lamp Cut
[03.2014 - 08.2017] ZRE17# |
90080-87021 |
— | ||
|
89257
|
89257
89257-12020 Computer, Cooling FanCOOLING FAN [03.2014 - 08.2017] ZRE173 |
89257-12020 |
from US $195.84 |
||
|
89730A
|
89730A
90987-02027 Relay[03.2014 - 08.2017] ZRE17# |
90987-02027 |
from US $31.43 |
||
|
9015950386
|
9015950386
90159-50386 New Genuine Part |
90159-50386 |
US $0.96 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.82 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
