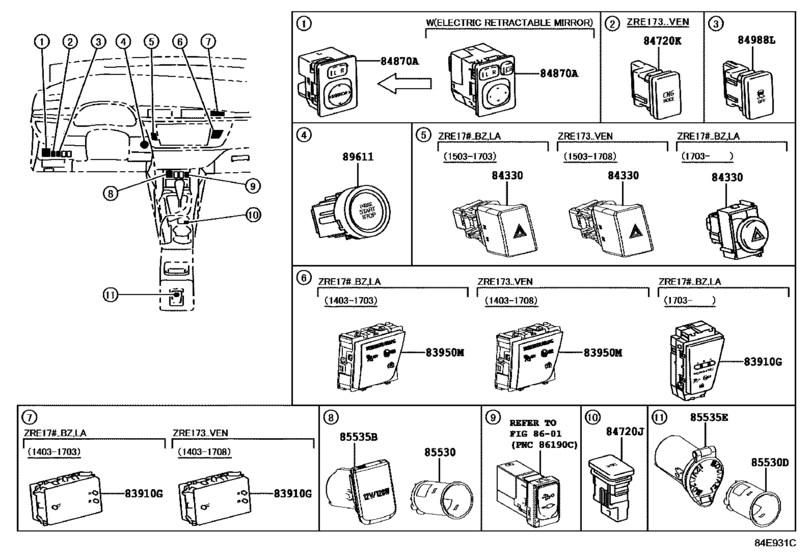

Switch & Relay & Computer ([03.2014 - ] INSTRUMENT PANEL (1403- )) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- ZRE173
- body
- SED
- ENGINE
- 3ZRFBE
- TRANSMISSION
- CVT
- DESTINATION
- BZ
- Model
- COROLLA (S.AMERICA)
- From
- 03.2014
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- LHD
- Fuel Induction
- HTWCF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83910G
|
83910G
83910-02170
Clock Assy
[03.2014 - 08.2017] ZRE17# |
83910-02170 |
— | ||
|
83910G
|
83910G
83910-02320
Clock Assy
[03.2017 -] ZRE17#..BZ,LA |
83910-02320 |
— | ||
|
83950M
|
83950M
83950-02350
Lamp Assy, Telltale
[03.2014 - 08.2017] ZRE17# |
83950-02350 |
— | ||
|
84330
|
84330
84332-02230
Switch Assy, Hazard Warning Signal
[03.2014 - 02.2015] ZRE17# |
84332-02230 |
— | ||
| replacement | |||||
|
84330
|
84330
84332-02231
Switch Assy, Hazard Warning Signal
[03.2014 - 02.2015] ZRE17# |
84332-02231 |
— | ||
|
84330
|
84330
84332-02231
Switch Assy, Hazard Warning Signal
[03.2015 - 08.2017] ZRE17# |
84332-02231 |
— | ||
|
84330
|
84330
84332-02330
Switch Assy, Hazard Warning Signal
[03.2017 -] ZRE17#..BZ,LA |
84332-02330 |
— | ||
|
84720J
|
84720J
84720-02090
Switch Assy, Pattern Select
[03.2014 - 02.2015] ZRE173..BZ;ZRE172..CVT..E; ZRE172..CVT..N..LA UP GRADE PACKAGE |
84720-02090 |
— | ||
| replacement | |||||
|
84720J
|
84720J
84720-02091
Switch Assy, Pattern Select, No.1
[03.2014 - 02.2015] ZRE173..BZ;ZRE172..CVT..E; ZRE172..CVT..N..LA UP GRADE PACKAGE |
84720-02091 |
— | ||
|
84720J
|
84720J
84720-02091
Switch Assy, Pattern Select, No.1
[03.2015 - 03.2017] ZRE173..BZ;ZRE172..CVT..E; ZRE172..CVT..N..LA UP GRADE PACKAGE |
84720-02091 |
— | ||
|
84870A
|
84870A
84870-12260
Switch Assy, Outer Mirror
[03.2014 - 06.2014] ZRE17#..E |
84870-12260 |
— | ||
| replacement | |||||
|
84870A
|
84870A
84870-12261 Switch Assy, Outer Mirror[03.2014 - 06.2014] ZRE17#..E |
84870-12261 |
US $138.32 |
||
|
84870A
|
84870A
84870-12261 Switch Assy, Outer Mirror[07.2014 - 08.2017] ZRE17#..E;ZRE173..N..VEN |
84870-12261 |
US $138.32 |
||
|
84988L
|
84988L
84988-02051
Switch, Vsc Off
[03.2017 -] ZRE17#..BZ,LA; ZRE173..N..BZ VEHICLE STABILITY CONT-WITHOUT(CUT OFF SWITCH) |
84988-02051 |
— | ||
|
85530
|
85530
85530-0D040
Socket Assy, Power Outlet, No.1
[03.2014 - 08.2017] ZRE17# |
85530-0D040 |
— | ||
|
85530D
|
85530D
85530-0D040
Socket Assy, Power Outlet, No.1
[03.2014 - 08.2017] ZRE17# |
85530-0D040 |
— | ||
|
85535B
|
85535B
85535-02140
Cover, Power Outlet Socket, No.1
[03.2014 - 08.2017] ZRE17# |
85535-02140 |
— | ||
|
85535E
|
85535E
85535-02050-C0
Cover, Power Outlet Socket, No.2
[03.2014 - 03.2017] ZRE17#..E BLACK,TRIM0# |
85535-02050-C0 |
— | ||
|
89611
|
89611
89611-42010 Switch, Push Start[03.2014 - 04.2015] ZRE17#..E |
89611-42010 |
US $135.41 |
||
| replacement | |||||
|
89611
|
89611
89611-42012 Switch, Push Start[03.2014 - 04.2015] ZRE17#..E |
89611-42012 |
from US $145.44 |
||
|
89611
|
89611
89611-42011 Switch, Push Start[05.2015 - 05.2016] ZRE17#..E |
89611-42011 |
US $135.41 |
||
| replacement | |||||
|
89611
|
89611
89611-42012 Switch, Push Start[05.2015 - 05.2016] ZRE17#..E |
89611-42012 |
from US $145.44 |
||
|
89611
|
89611
89611-42012 Switch, Push Start[06.2016 - 03.2017] ZRE17#..E |
89611-42012 |
from US $145.44 |
||
