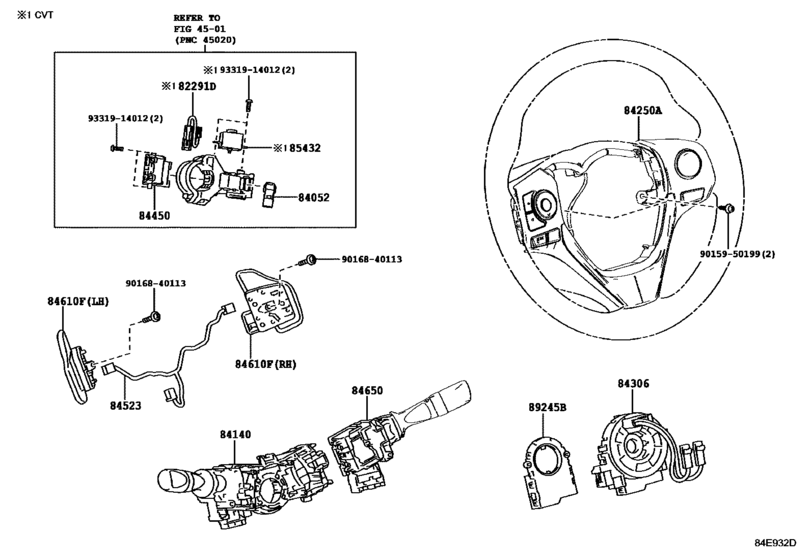

Switch & Relay & Computer ([03.2014 - ] STEERING (1403- )BZ,LA) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- ZRE173
- body
- SED
- ENGINE
- 3ZRFBE
- TRANSMISSION
- CVT
- DESTINATION
- BZ
- Model
- COROLLA (S.AMERICA)
- From
- 03.2014
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- LHD
- Fuel Induction
- HTWCF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-02B90
Switch Assy, Headlamp Dimmer
[03.2014 - 03.2017] ZRE173..E |
84140-02B90 |
— | ||
|
84250A
|
84250A
84250-02490
Switch Assy, Steering Pad
[03.2014 - 03.2017] ZRE172..E;ZRE173..BZ |
84250-02490 |
— | ||
|
84250A
|
84250A
84250-02A80
Switch Assy, Steering Pad
[03.2017 -] ZRE172..LA;ZRE173..BZ |
84250-02A80 |
— | ||
|
84306
|
84306
84306-06190 Cable Sub-Assy, Spiral[03.2014 - 08.2017] ZRE17#..E,N |
84306-06190 |
US $188.16 |
||
|
84306
|
84306
84308-02010 Cable Sub-Assy, Spiral[03.2017 -] ZRE172..LA;ZRE173..BZ; ZRE172..CVT..BZ UP GRADE PACKAGE; ZRE173..N..BZ VEHICLE STABILITY CONT-WITHOUT(CUT OFF SWITCH) |
84308-02010 |
from US $121.60 |
||
|
84523
|
84523
84523-42010 Wire, Switch No.1SWITCH NO.1 [03.2014 - 03.2017] ZRE173..BZ;ZRE172..CVT..E; ZRE172..CVT..N..LA UP GRADE PACKAGE |
84523-42010 |
US $14.50 |
||
|
84610F
|
84610F
84610-12120 Switch Assy, Transmission Shift[03.2014 - 03.2017] ZRE173..BZ;ZRE172..CVT..E LH; ZRE172..CVT..N..LA UP GRADE PACKAGE,LH |
84610-12120 |
US $34.07 |
||
|
84610F
|
84610F
84610-12130 Switch Assy, Transmission Shift[03.2014 - 03.2017] ZRE173..BZ;ZRE172..CVT..E RH; ZRE172..CVT..N..LA UP GRADE PACKAGE,RH |
84610-12130 |
US $39.67 |
||
|
84650
|
84650
84652-02800
Switch Assy, Windshield Wiper
[03.2017 -] ZRE17#..E |
84652-02800 |
— | ||
|
84650
|
84650
84652-02850
Switch Assy, Windshield Wiper
[03.2014 - 03.2015] ZRE173..E |
84652-02850 |
— | ||
|
84650
|
84650
84652-06260
Switch Assy, Windshield Wiper
[03.2015 - 08.2017] ZRE173..E |
84652-06260 |
— | ||
|
89245B
|
89245B
8924B-0D010 Sensor, Steering[03.2017 -] ZRE17#..BZ,LA |
8924B-0D010 |
US $287.92 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
|
9016840113
|
9016840113
90168-40113 Screw, Steering Wheel Pad Attaching |
90168-40113 |
US $0.96 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
