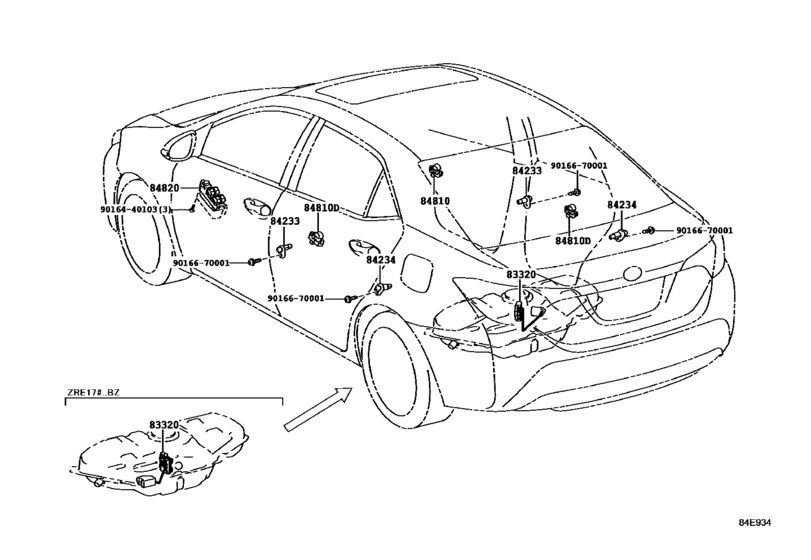

Switch & Relay & Computer ([03.2014 - ] DOOR,ROOF,FLOOR & LUGGAGE (1403- )) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- ZRE173
- body
- SED
- ENGINE
- 3ZRFBE
- TRANSMISSION
- CVT
- DESTINATION
- BZ
- Model
- COROLLA (S.AMERICA)
- From
- 03.2014
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- LHD
- Fuel Induction
- HTWCF
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-02130
Gage Assy, Fuel Sender
[03.2014 - 03.2017] ZRE17#..BZ |
83320-02130 |
— | ||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[03.2014 - 03.2017] ZRE17#..BZ,LA |
84231-60070 |
from US $10.56 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[03.2014 - 03.2017] ZRE17#..BZ,LA |
84231-60070 |
from US $10.56 |
||
|
84810
|
84810
84810-02150
Switch Assy, Power Window Regulator
[03.2014 - 08.2017] ZRE173;ZRE172..LA |
84810-02150 |
— | ||
|
84810D
|
84810D
84810-02150
Switch Assy, Power Window Regulator
[03.2014 - 08.2017] ZRE173;ZRE172..LA LH |
84810-02150 |
— | ||
|
84820
|
84820
84040-02130
Master Switch Assy, Power Window Regulator
[03.2014 - 08.2017] ZRE173;ZRE172..LA |
84040-02130 |
— | ||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $0.96 |
