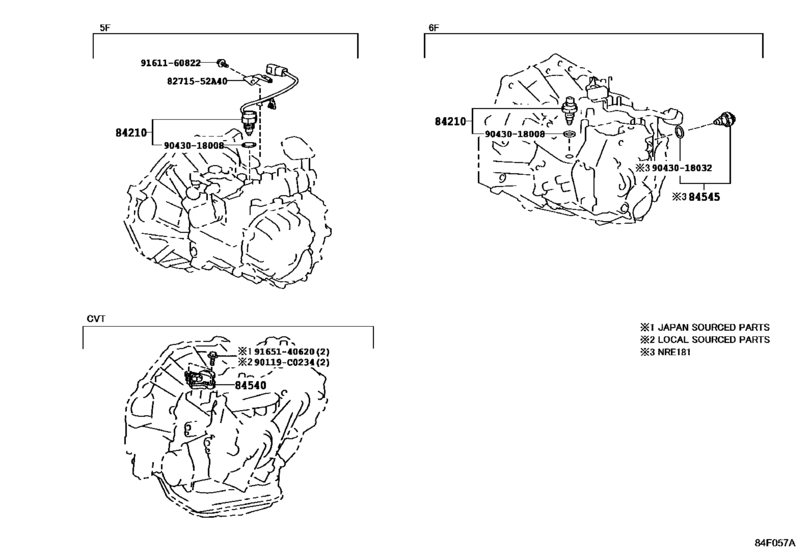

Switch & Relay & Computer ([06.2014 - ] TRANSMISSION (1406- )NRE181,ZRE18#) Diagram Toyota COROLLA
- Year
- 2014 - 2016
- Sales region
- General
- Frame
- ZRE181
- grade
- GLI
- body
- SED
- ENGINE
- 1ZRFE
- TRANSMISSION
- CVT
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 06.2014
- To
- 09.2016
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84540
|
84540
84540-02020
Switch Assy, Neutral Start
[06.2014 - 04.2017] ZRE181..CVT TMCAP:REFER 34-01 |
84540-02020 |
— | ||
|
84540
|
84540
84540-52070 Switch Assy, Neutral Start[06.2014 - 04.2017] ZRE181..CVT TMH:REFER 34-01 |
84540-52070 |
from US $112.48 |
||
|
90119C0234
|
90119C0234
90119-C0234
New Genuine Part
|
90119-C0234 |
— | ||
|
8271552A40
|
8271552A40
82715-52A40
Bracket,wiring Harness Clamp
|
82715-52A40 |
— | ||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9043018032
|
9043018032
90430-18032 New Genuine Part |
90430-18032 |
US $1.44 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $2.48 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
