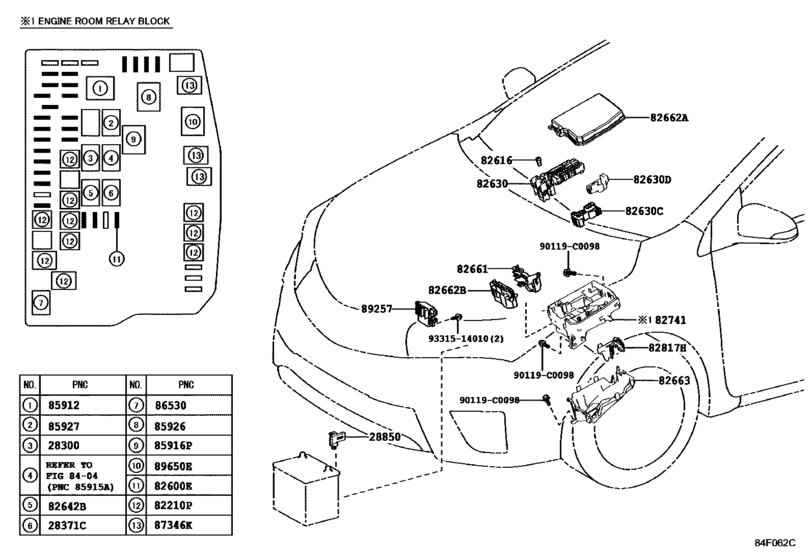

Switch & Relay & Computer ([06.2014 - ] ENGINE ROOM (1406-1610)ZRE182..CVT ; (1406- )ZRE181 ; (14 06- )ZRE182..6F) Diagram Toyota COROLLA
- Year
- 2014 - 2016
- Sales region
- General
- Frame
- ZRE181
- grade
- GLI
- body
- SED
- ENGINE
- 1ZRFE
- TRANSMISSION
- CVT
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 06.2014
- To
- 09.2016
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-21020 Relay Assy, Starter[07.2014 -] 1ZRFE..ZRE181;9NRFTS,2ZRFE..NRE181,ZRE182..6F |
28300-21020 |
from US $40.58 |
||
|
28300
|
28300
28300-28010
Relay Assy, Starter
[06.2014 - 07.2014] 1ZRFE,2ZRFE..ZRE18# |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[06.2014 - 07.2014] 1ZRFE,2ZRFE..ZRE18# |
28300-21020 |
from US $40.58 |
||
|
28371C
|
28371C
90987-T2005
Relay, Water Pump
[06.2014 -] 1ZRFE..ZRE181;2ZRFE..ZRE182..6F |
90987-T2005 |
— | ||
|
28850
|
28850
28850-37060
Sensor Assy, Battery Current
[06.2014 -] 1ZRFE..ZRE181;2ZRFE..ZRE182..6F |
28850-37060 |
— | ||
|
82210P
|
82210P
90982-08274 Fusible Link[06.2014 -] NRE181,ZRE18# 120A,TERMINAL:MALE |
90982-08274 |
from US $7.68 |
||
|
82210P
|
82210P
90982-08294 Fusible Link[06.2014 -] NRE181,ZRE18#,ZWE182 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08295 Fusible Link[06.2014 -] NRE181,ZRE18#,ZWE182 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08296 Fusible Link[06.2014 -] NRE181,ZRE18#,ZWE182 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08304 Fusible Link[06.2014 -] NRE181,ZRE181 60A,TERMINAL:FEMALE |
90982-08304 |
US $6.24 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[06.2014 -] NRE181,ZRE18#,ZWE182 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[06.2014 -] NRE181,ZRE18#,ZWE182 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[06.2014 -] NRE181,ZRE18#,ZWE182 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[06.2014 -] NRE181,ZRE18#,ZWE182 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09024 Instrument Panel Fuse[06.2014 -] NRE181,ZRE18#,ZWE182 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[06.2014 -] NRE181,ZRE18#,ZWE182 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[06.2014 -] NRE181,ZRE18#,ZWE182 |
82616-58010 |
from US $2.40 |
||
|
82630
|
82630
82631-02080
Holder Assy, Fuse
[06.2014 -] NRE181,ZRE18# |
82631-02080 |
— | ||
|
82630C
|
82630C
82631-02090
Holder Assy, Fuse
[06.2014 -] ZRE181;ZRE182..6F |
82631-02090 |
— | ||
|
82630D
|
82630D
82631-02100
Holder, Fuse
[06.2014 -] NRE181,ZRE18# |
82631-02100 |
— | ||
|
82661
|
82661
82661-02070
Cover, Relay Block, No.1
[06.2014 -] ZRE181;ZRE182..6F |
82661-02070 |
— | ||
|
82662A
|
82662A
82662-02360
Cover, Relay Block, Upper, No.1
[06.2014 -] ZRE181 |
82662-02360 |
— | ||
|
82662B
|
82662B
82662-02A10
Cover, Relay Block, Upper, No.2
[06.2014 -] ZRE181;ZRE182..6F |
82662-02A10 |
— | ||
|
82663
|
82663
82663-02100
Cover, Relay Block, Lower
[06.2014 -] NRE181,ZRE18# |
82663-02100 |
— | ||
|
82741
|
82741
82741-02100
Block, Engine Room Relay
[06.2014 -] NRE181,ZRE18# |
82741-02100 |
— | ||
|
82817H
|
82817H
82817-02J30
Protector, Wiring Harness
[06.2014 -] NRE181,ZRE18# |
82817-02J30 |
— | ||
|
85912
|
85912
90987-T4002
Relay Assy (For Heater Blower Motor)
[06.2014 -] NRE181,ZRE18#,ZWE182 |
90987-T4002 |
— | ||
|
85916P
|
85916P
90987-T2004
Relay, Water Pump
[06.2014 -] ZRE181;ZRE182..6F |
90987-T2004 |
— | ||
|
85926
|
85926
90987-T2004
Relay, Water Pump
[06.2014 -] ZRE181;ZRE182..6F |
90987-T2004 |
— | ||
|
85927
|
85927
90987-T2005
Relay, Water Pump
[06.2014 -] ZRE18#,ZWE182 |
90987-T2005 |
— | ||
|
86530
|
86530
90987-T2005
Relay, Water Pump
[06.2014 -] ZRE181;ZRE182..6F |
90987-T2005 |
— | ||
|
87346K
|
87346K
90987-T2005
Relay, Water Pump
[06.2014 -] ZRE181;ZRE182..6F |
90987-T2005 |
— | ||
|
89257
|
89257
89257-12010
Computer, Cooling Fan
[06.2014 -] ZRE181;ZRE182..6F |
89257-12010 |
— | ||
| replacement | |||||
|
89257
|
89257
89257-K0010 COMPUTER COOLING[06.2014 -] ZRE181;ZRE182..6F |
89257-K0010 |
US $195.84 |
||
|
90119C0098
|
90119C0098
90119-C0098
New Genuine Part
|
90119-C0098 |
— | ||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.80 |
||
