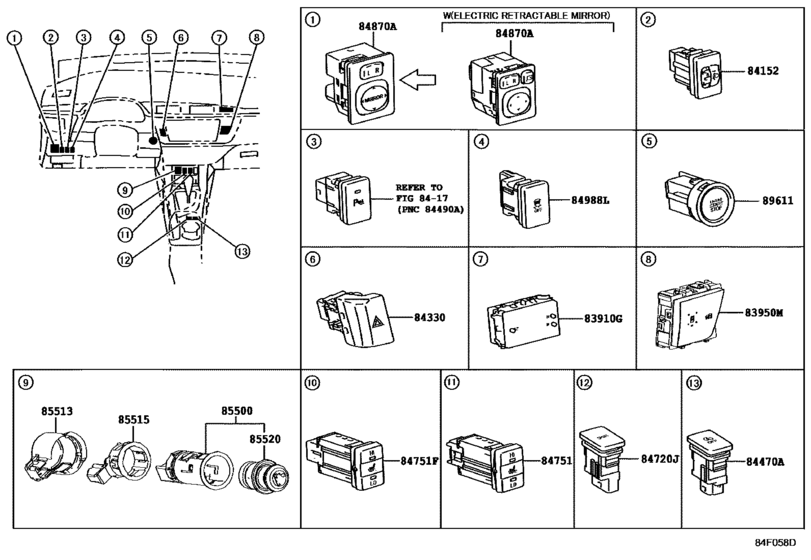

Switch & Relay & Computer ([06.2014 - ] INSTRUMENT PANEL (1406-1703)NRE181,ZRE182 ; (1406- )ZRE181) Diagram Toyota COROLLA
- Year
- 2014 - 2016
- Sales region
- General
- Frame
- ZRE181
- grade
- GLI
- body
- SED
- ENGINE
- 1ZRFE
- TRANSMISSION
- CVT
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 06.2014
- To
- 09.2016
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83910G
|
83910G
83910-02180
Clock Assy
[06.2014 -] NRE181,ZRE18#,ZWE182 |
83910-02180 |
— | ||
|
83950M
|
83950M
83950-02390
Lamp Assy, Telltale
[06.2014 - 03.2017] NRE181,ZRE181..GLI |
83950-02390 |
— | ||
|
84152
|
84152
84152-02100
Switch, Headlamp Leveling
[06.2014 - 02.2015] ZRE18# |
84152-02100 |
— | ||
| replacement | |||||
|
84152
|
84152
84152-02101
Switch, Headlamp Leveling
[06.2014 - 02.2015] ZRE18# |
84152-02101 |
— | ||
|
84152
|
84152
84152-02101
Switch, Headlamp Leveling
[03.2015 -] NRE181,ZRE18# |
84152-02101 |
— | ||
|
84330
|
84330
84332-02280
Switch Assy, Hazard Warning Signal
[06.2014 - 02.2015] ZRE18# |
84332-02280 |
— | ||
| replacement | |||||
|
84330
|
84330
84332-02281
Switch Assy, Hazard Warning Signal
[06.2014 - 02.2015] ZRE18# |
84332-02281 |
— | ||
|
84330
|
84330
84332-02281
Switch Assy, Hazard Warning Signal
[03.2015 -] NRE181,ZRE18#,ZWE182 |
84332-02281 |
— | ||
|
84720J
|
84720J
84720-02040
Switch Assy, Pattern Select
[06.2014 - 02.2015] ZRE18#..CVT |
84720-02040 |
— | ||
| replacement | |||||
|
84720J
|
84720J
84720-02041
Switch Assy, Pattern Select
[06.2014 - 02.2015] ZRE18#..CVT |
84720-02041 |
— | ||
|
84720J
|
84720J
84720-02041
Switch Assy, Pattern Select
[03.2015 -] NRE181,ZRE18#..CVT |
84720-02041 |
— | ||
|
84870A
|
84870A
84870-02220
Switch Assy, Outer Mirror
[06.2014 -] ZWE182..GLI;NRE181,ZRE181 |
84870-02220 |
— | ||
|
85500
|
85500
85500-02070
Lighter Assy, Cigarette
[06.2014 -] NRE181,ZRE18# |
85500-02070 |
— | ||
|
85513
|
85513
85513-02030
Cover, Cigarette Lighter
[06.2014 -] NRE181,ZRE18# |
85513-02030 |
— | ||
|
85515
|
85515
85515-02100
Stay, Cigarette Lighter Bezel
[06.2014 -] NRE181,ZRE18# |
85515-02100 |
— | ||
|
85520
|
85520
85520-02050
Knob And Element Assy, Cigarette Lighter
[06.2014 -] NRE181,ZRE18# |
85520-02050 |
— | ||
