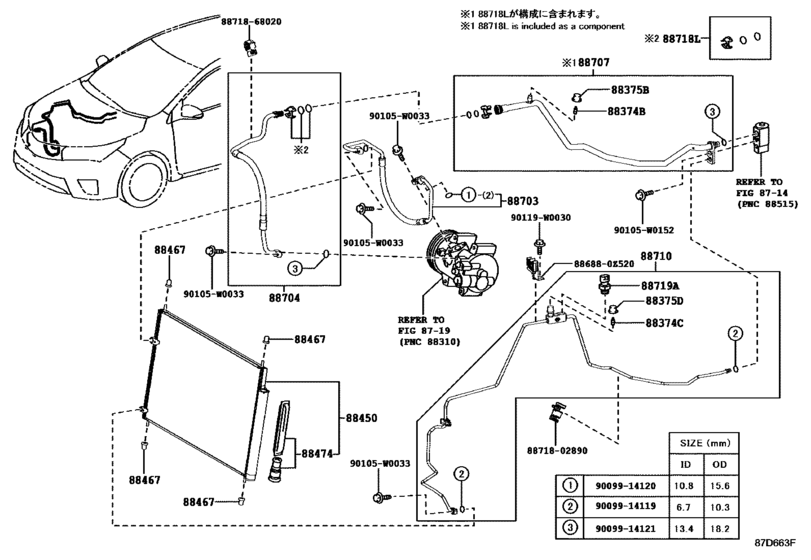

Heating & Air Conditioning - Cooler Piping ([06.2013 - ] (1306- )ZRE18#) Diagram Toyota COROLLA
- Year
- 2013 - 2016
- Sales region
- Europe
- Frame
- ZRE182
- grade
- N
- ENGINE
- 2ZRFE
- TRANSMISSION
- CVT
- DESTINATION
- EUR
- Model
- COROLLA
- From
- 06.2013
- To
- 05.2016
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..N; NRE180,ZRE18#..N..HTWC RUSSIA SPEC&WITHOUT(ON BOARD DIAGNOSIS)&AIR CONDITIONER-WITHOUT; NRE180,ZRE18#..N..HTWC RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS)&AIR CONDITIONER-WITHOUT; ZRE181..N..HTWC NON-NEW MAC SPEC COUN |
88374-30010 |
from US $2.74 |
||
|
88374C
|
88374C
88374-30010 Valve, Service, No.1[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..N; NRE180,ZRE18#..N..HTWC RUSSIA SPEC&WITHOUT(ON BOARD DIAGNOSIS)&AIR CONDITIONER-WITHOUT; NRE180,ZRE18#..N..HTWC RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS)&AIR CONDITIONER-WITHOUT; ZRE181..N..HTWC NON-NEW MAC SPEC COUN |
88374-30010 |
from US $2.74 |
||
|
88375B
|
88375B
88375-30290 Cap, Service Valve (For Cooler Pipe)[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..N; NRE180,ZRE18#..N..HTWC RUSSIA SPEC&WITHOUT(ON BOARD DIAGNOSIS)&AIR CONDITIONER-WITHOUT; NRE180,ZRE18#..N..HTWC RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS)&AIR CONDITIONER-WITHOUT; ZRE181..N..HTWC NON-NEW MAC SPEC COUN |
88375-30290 |
from US $0.82 |
||
|
88375D
|
88375D
88375-30280 Cap, Service Valve (For Cooler Pipe)[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..N; NRE180,ZRE18#..N..HTWC RUSSIA SPEC&WITHOUT(ON BOARD DIAGNOSIS)&AIR CONDITIONER-WITHOUT; NRE180,ZRE18#..N..HTWC RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS)&AIR CONDITIONER-WITHOUT; ZRE181..N..HTWC NON-NEW MAC SPEC COUN |
88375-30280 |
from US $0.98 |
||
|
88450
|
88450
88450-02280 Condenser Assy, W/receiverW/RECEIVER [06.2013 - 05.2016] NDE180,NRE180,ZRE18#..N; NDE180,NRE180,ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER; NDE180,NRE180,ZRE181..RHD AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL); NDE180,NRE180,ZRE18#..N AIR CONDITIONER-WITHOUT |
88450-02280 |
US $419.33 |
||
|
88467
|
88467
16716-28010 Cushion, Fan Shroud[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..N; NDE180,NRE180,ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER; NDE180,NRE180,ZRE181..RHD AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL); NDE180,NRE180,ZRE18#..N AIR CONDITIONER-WITHOUT |
16716-28010 |
from US $2 |
||
|
88474
|
88474
88474-17010 Dryer, Cooler[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..N; NDE180,NRE180,ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER; NDE180,NRE180,ZRE181..RHD AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL); NDE180,NRE180,ZRE18#..N AIR CONDITIONER-WITHOUT |
88474-17010 |
from US $57.04 |
||
|
88703
|
88703
88703-02770
Hose Sub-Assy, Discharge
[06.2013 - 05.2016] ZRE18#..N; ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER; ZRE181..CVT..D..HTWVM AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL); ZRE18#..N AIR CONDITIONER-WITHOUT |
88703-02770 |
— | ||
|
88704
|
88704
88704-0Z130
Hose Sub-Assy, Suction
[06.2013 - 05.2016] ZRE18#..N; ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER; ZRE181..CVT..D..HTWVM AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL); ZRE18#..N AIR CONDITIONER-WITHOUT |
88704-0Z130 |
— | ||
|
88707
|
88707
88707-02200
Pipe Sub-Assy, Suction
[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..N; NRE180,ZRE18#..N..HTWC RUSSIA SPEC&WITHOUT(ON BOARD DIAGNOSIS)&AIR CONDITIONER-WITHOUT; NRE180,ZRE18#..N..HTWC RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS)&AIR CONDITIONER-WITHOUT; ZRE181..N..HTWC NON-NEW MAC SPEC COUN |
88707-02200 |
— | ||
|
88710
|
88710
88710-0Z300
Tube Assy, Air Conditioner
[06.2013 - 05.2016] NRE180,ZRE18#..N; NRE180,ZRE18#..N..HTWC RUSSIA SPEC&WITHOUT(ON BOARD DIAGNOSIS)&AIR CONDITIONER-WITHOUT; NRE180,ZRE18#..N..HTWC RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS)&AIR CONDITIONER-WITHOUT; ZRE181..N..HTWC NON-NEW MAC SPEC COUNTRY&ALG |
88710-0Z300 |
— | ||
|
88718L
|
88718L
88718-52260
Clamp, Piping
[06.2013 - 05.2016] ZRE18#..N; ZRE18#..D AIR CONDITIONER-MANUAL AIR CONDITIONER; ZRE181..CVT..D..HTWVM AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL); ZRE18#..N AIR CONDITIONER-WITHOUT |
88718-52260 |
— | ||
|
88719A
|
88719A
88719-33020 Sensor, Airconditioner Pressure[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..N; NRE180,ZRE18#..N..HTWC RUSSIA SPEC&WITHOUT(ON BOARD DIAGNOSIS)&AIR CONDITIONER-WITHOUT; NRE180,ZRE18#..N..HTWC RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS)&AIR CONDITIONER-WITHOUT; ZRE181..N..HTWC NON-NEW MAC SPEC COUN |
88719-33020 |
from US $124.05 |
||
|
90105W0033
|
90105W0033
90105-W0033
New Genuine Part
|
90105-W0033 |
— | ||
|
90105W0152
|
90105W0152
90105-W0152 New Genuine Part |
90105-W0152 |
US $0.73 |
||
|
90119W0030
|
90119W0030
90119-W0030 New Genuine Part |
90119-W0030 |
US $0.73 |
||
|
886880Z520
|
886880Z520
88688-0Z520
Bracket, Cooler Diaphragm
|
88688-0Z520 |
— | ||
|
8871802890
|
8871802890
88718-02890 Pipe, Cooler Refrigerant Suction, No.2 |
88718-02890 |
US $3.20 |
||
|
8871868020
|
8871868020
88718-68020
Clamp, Piping
|
88718-68020 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
US $2.27 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.59 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.79 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.94 |
||
