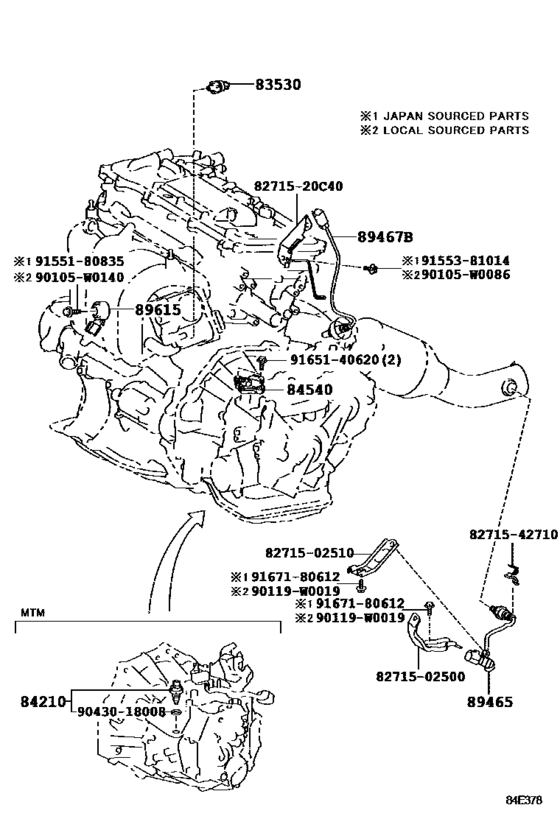

Switch & Relay & Computer ([06.2013 - ] ENGINE & TRANSMISSION (1306- )ZRE18#) Diagram Toyota COROLLA
- Year
- 2013 - 2016
- Sales region
- Europe
- Frame
- ZRE182
- grade
- N
- ENGINE
- 2ZRFE
- TRANSMISSION
- CVT
- DESTINATION
- EUR
- Model
- COROLLA
- From
- 06.2013
- To
- 05.2016
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-05010
Switch Assy, Oil Pressure (For Engine)
[06.2013 - 05.2016] NRE180,ZRE18# |
83530-05010 |
— | ||
|
84540
|
84540
84540-52070 Switch Assy, Neutral Start[06.2013 - 05.2016] ZRE18#..CVT |
84540-52070 |
from US $112.48 |
||
|
89465
|
89465
89465-02280
Sensor, Oxygen
[06.2013 - 05.2016] ZRE18#..HTWC |
89465-02280 |
— | ||
|
89467B
|
89467B
89467-52060 Sensor, OxygenAIR FUEL RATIO [06.2013 - 05.2016] ZRE18#..HTWC |
89467-52060 |
from US $146.52 |
||
|
89615
|
89615
89615-02020 Sensor, Knock Control[06.2013 - 05.2016] ZRE18# (L) |
89615-02020 |
US $142.69 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[06.2013 - 05.2016] ZRE18# (J); NRE180 |
89615-20090 |
from US $36.02 |
||
|
90105W0086
|
90105W0086
90105-W0086 New Genuine Part |
90105-W0086 |
US $1.31 |
||
|
90105W0140
|
90105W0140
90105-W0140 New Genuine Part |
90105-W0140 |
US $1.02 |
||
|
90119W0019
|
90119W0019
90119-W0019
BOLT WWASHER
|
90119-W0019 |
— | ||
| replacement | |||||
|
90119W0019
|
90119W0019
90119-A0182 New Genuine Part |
90119-A0182 |
US $2.48 |
||
|
8271520C40
|
8271520C40
82715-20C40
Bracket,wiring Harness Clamp
|
82715-20C40 |
— | ||
|
8271502500
|
8271502500
82715-02500 Bracket,wiring Harness Clamp |
82715-02500 |
US $7.28 |
||
|
8271502510
|
8271502510
82715-02510 Bracket,wiring Harness Clamp |
82715-02510 |
US $7.28 |
||
|
8271542710
|
8271542710
82715-42710 Bracket,wiring Harness Clamp |
82715-42710 |
US $2.80 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.80 |
||
|
9155381014
|
9155381014
91553-81014 New Genuine Part |
91553-81014 |
US $1.31 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
