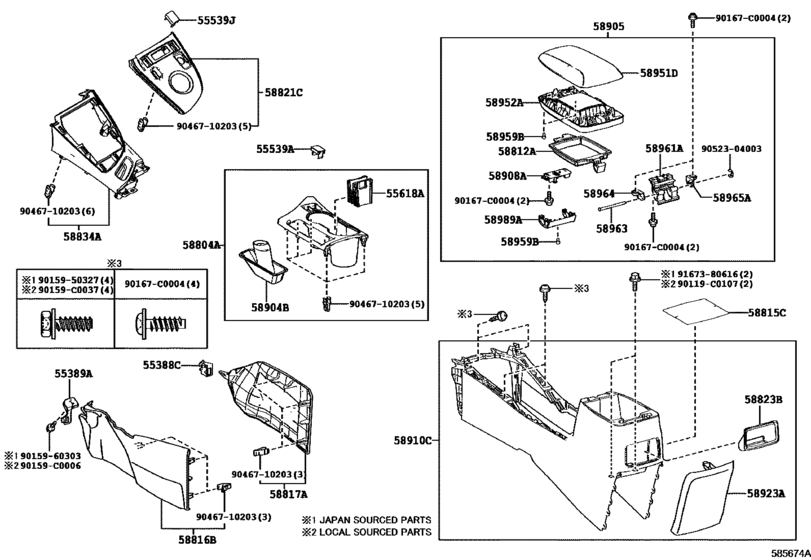

Console Box & Bracket ([12.2015 - ] (1512- )ZWE182) Diagram Toyota COROLLA
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- ZWE182
- grade
- GLI
- body
- SED
- ENGINE
- 8ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 12.2015
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55388C
|
55388C
55388-02180
Bracket, Console Mounting, Rh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
55388-02180 |
— | ||
|
55389A
|
55389A
55389-02160
Bracket, Console Mounting, Lh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
55389-02160 |
— | ||
|
55539A
|
55539A
55539-0R020-A1
Cover, Spare Switch Hole
[06.2014 - 03.2017] ZRE181,ZWE182..GLI,GLXI;NRE181,ZRE182..6F..(GLI,GLXI) IVORY,TRIM0#; ZRE181..GL;NRE181..6F..GL IVORY,TRIM01 |
55539-0R020-A1 |
— | ||
|
55539A
|
55539A
55539-0R020-C0
Cover, Spare Switch Hole
[06.2014 - 03.2017] ZRE181,ZWE182..GLI,GLXI;NRE181,ZRE182..6F..(GLI,GLXI) BLACK,TRIM2#; ZRE181..GL;NRE181..6F..GL BLACK,TRIM00,2# |
55539-0R020-C0 |
— | ||
|
55539J
|
55539J
55539-0R020-C0
Cover, Spare Switch Hole
[12.2015 - 03.2017] ZWE182..GLI BLACK; ZWE182..GLI,GLXI BLACK,TRIM2# |
55539-0R020-C0 |
— | ||
|
55618A
|
55618A
55618-02290-A0
Holder, Console Box Cup
[10.2015 - 03.2017] NRE181,ZRE18#,ZWE182..GLI,GLXI,PREM IVORY,TRIM0# |
55618-02290-A0 |
— | ||
|
55618A
|
55618A
55618-02290-C0
Holder, Console Box Cup
[10.2015 - 03.2017] NRE181,ZRE181..GL BLACK,TRIM00,2#; NRE181,ZRE18#,ZWE182..GLI,GLXI,PREM BLACK,TRIM2# |
55618-02290-C0 |
— | ||
|
58804A
|
58804A
58804-02431-A0
Panel Sub-Assy, Console, Upper
[10.2015 - 03.2017] ZRE181..GL IVORY,TRIM01; NRE181,ZRE18#,ZWE182..GLI,GLXI,PREM IVORY,TRIM0# |
58804-02431-A0 |
— | ||
|
58804A
|
58804A
58804-02431-C0
Panel Sub-Assy, Console, Upper
[04.2017 -] NRE181,ZRE182,ZWE182 BLACK,TRIM0#,2# |
58804-02431-C0 |
— | ||
|
58804A
|
58804A
58804-02431-C1
Panel Sub-Assy, Console, Upper
[10.2015 - 02.2017] NRE181,ZRE181..GL BLACK,TRIM00,2#; NRE181,ZRE18#,ZWE182..GLI,GLXI,PREM BLACK,TRIM2# |
58804-02431-C1 |
— | ||
|
58812A
|
58812A
58812-02310-A0
Box, Console, Lower
[06.2014 - 03.2017] NRE181,ZWE182..GLI,GLXI,PREM IVORY,TRIM0# |
58812-02310-A0 |
— | ||
|
58812A
|
58812A
58812-02310-C0
Box, Console, Lower
[12.2015 - 03.2017] NRE181,ZWE182..GLI,GLXI,PREM BLACK,TRIM2# |
58812-02310-C0 |
— | ||
|
58815C
|
58815C
58815-02370
Carpet, Console Box
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58815-02370 |
— | ||
|
58816B
|
58816B
58816-02281-A0
Insert, Console Box
[11.2015 - 03.2017] NRE181,ZRE181..GL IVORY,TRIM01; NRE181,ZRE18#,ZWE182..GLI,GLXI,PREM IVORY,TRIM0# |
58816-02281-A0 |
— | ||
|
58816B
|
58816B
58816-02281-C0
Insert, Console Box
[11.2015 - 03.2017] NRE181,ZRE181..GL BLACK,TRIM00,2#; NRE181,ZRE18#,ZWE182..GLI,GLXI,PREM BLACK,TRIM2# |
58816-02281-C0 |
— | ||
|
58817A
|
58817A
58817-02281-A0
Insert, Console Box, Front No.2
[11.2015 - 03.2017] NRE181,ZRE181..GL IVORY,TRIM01; NRE181,ZRE18#,ZWE182..GLI,GLXI,PREM IVORY,TRIM0# |
58817-02281-A0 |
— | ||
|
58817A
|
58817A
58817-02281-C0
Insert, Console Box, Front No.2
[11.2015 - 03.2017] NRE181,ZRE181..GL BLACK,TRIM00,2#; NRE181,ZRE18#,ZWE182..GLI,GLXI,PREM BLACK,TRIM2# |
58817-02281-C0 |
— | ||
|
58821C
|
58821C
58821-02500
Panel, Console, Upper
[12.2015 - 03.2017] ZWE182 |
58821-02500 |
— | ||
|
58821C
|
58821C
58821-02501-C0
Panel, Console, Upper
[04.2017 -] ZWE182 BLACK,TRIM0#,2# |
58821-02501-C0 |
— | ||
|
58823B
|
58823B
58823-02050-A0
Box, Console Compartment
[06.2014 - 03.2017] NRE181,ZRE18#,ZWE182..GLI,GLXI,PREM IVORY,TRIM0# |
58823-02050-A0 |
— | ||
|
58823B
|
58823B
58823-02050-C0
Box, Console Compartment
[06.2014 - 03.2017] NRE181,ZRE18#,ZWE182..GLI,GLXI,PREM BLACK,TRIM2# |
58823-02050-C0 |
— | ||
|
58834A
|
58834A
58834-02030-A0
Cover, Console, Lower
[12.2015 - 03.2017] ZWE182 IVORY,TRIM01 |
58834-02030-A0 |
— | ||
|
58834A
|
58834A
58834-02030-C0
Cover, Console, Lower
[12.2015 - 03.2017] ZWE182 BLACK,TRIM01,2# |
58834-02030-C0 |
— | ||
|
58904B
|
58904B
58904-02340-C0
Cover Sub-Assy, Parking Brake Hole
[06.2014 -] NRE181,ZRE18#,ZWE182 BLACK,TRIM0#,2# |
58904-02340-C0 |
— | ||
|
58905
|
58905
58905-02C60-A0
Door Sub-Assy, Console Compartment
[06.2014 - 04.2017] NRE181,ZRE181,ZWE182..GL,GLI IVORY/R080,TRIM0# |
58905-02C60-A0 |
— | ||
|
58905
|
58905
58905-02C60-C0
Door Sub-Assy, Console Compartment
[03.2015 -] NRE181,ZRE181,ZWE182..GL,GLI BLACK,TRIM2# |
58905-02C60-C0 |
— | ||
|
58905
|
58905
58905-02C60-C2
Door Sub-Assy, Console Compartment
[04.2017 -] ZRE181 BLACK,TRIM0#; NRE181,ZWE182..GL,GLI BLACK,TRIM0# |
58905-02C60-C2 |
— | ||
|
58905
|
58905
58905-02C70-A1
Door Sub-Assy, Console Compartment
[12.2015 - 03.2017] ZWE182..GLI MOON ROOF PACKAGE,IVORY,TRIM0# |
58905-02C70-A1 |
— | ||
|
58905
|
58905
58905-02C70-C2
Door Sub-Assy, Console Compartment
[12.2015 - 03.2017] ZWE182..GLI MOON ROOF PACKAGE,BLACK,TRIM2# |
58905-02C70-C2 |
— | ||
|
58905
|
58905
58905-02C70-C4
Door Sub-Assy, Console Compartment
[04.2017 -] NRE181,ZRE182,ZWE182..GLXI,PREM BLACK,TRIM0#; NRE181..GLI LEATHER PACKAGE(*LES),BLACK,TRIM0#; ZWE182..GLI MOON ROOF PACKAGE(*MR & *LES),BLACK,TRIM0# |
58905-02C70-C4 |
— | ||
|
58908A
|
58908A
58908-02190
Lock Sub-Assy, Console Compartment Door
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58908-02190 |
— | ||
|
58910C
|
58910C
58910-02631-A0
Box Assy, Console, Rear
[11.2015 - 03.2017] NRE181,ZRE181..GL IVORY,TRIM01; NRE181,ZRE18#,ZWE182..GLI,GLXI,PREM IVORY,TRIM0# |
58910-02631-A0 |
— | ||
|
58910C
|
58910C
58910-02631-C0
Box Assy, Console, Rear
[11.2015 - 03.2017] NRE181,ZRE181..GL BLACK,TRIM00,2#; NRE181,ZRE18#,ZWE182..GLI,GLXI,PREM BLACK,TRIM2# |
58910-02631-C0 |
— | ||
|
58923A
|
58923A
58923-02290-A0
Panel, Console Rear End
[11.2015 - 03.2017] NRE181,ZRE18#,ZWE182..GLI,GLXI,PREM IVORY,TRIM0# |
58923-02290-A0 |
— | ||
|
58923A
|
58923A
58923-02290-C0
Panel, Console Rear End
[11.2015 - 03.2017] NRE181,ZRE181..GL BLACK,TRIM00,2#; NRE181,ZRE18#,ZWE182..GLI,GLXI,PREM BLACK,TRIM2# |
58923-02290-C0 |
— | ||
|
58951D
|
58951D
58951-02B40-A0
Door, Console Compartment, Outer
[06.2014 - 04.2017] NRE181,ZRE181,ZWE182..GL,GLI IVORY/R080,TRIM0# |
58951-02B40-A0 |
— | ||
|
58951D
|
58951D
58951-02B40-A1
Door, Console Compartment, Outer
[04.2017 -] ZRE181 FLAXEN,TRIM0#; NRE181,ZWE182..GL,GLI FLAXEN,TRIM0# |
58951-02B40-A1 |
— | ||
|
58951D
|
58951D
58951-02B40-C0
Door, Console Compartment, Outer
[03.2015 -] NRE181,ZRE181,ZWE182..GL,GLI BLACK,TRIM2# |
58951-02B40-C0 |
— | ||
|
58951D
|
58951D
58951-02B50-A1
Door, Console Compartment, Outer
[12.2015 - 03.2017] ZWE182..GLI MOON ROOF PACKAGE,IVORY,TRIM0# |
58951-02B50-A1 |
— | ||
|
58951D
|
58951D
58951-02B50-A3
Door, Console Compartment, Outer
[04.2017 -] NRE181,ZRE182,ZWE182..GLXI,PREM FLAXEN,TRIM0#; NRE181..GLI LEATHER PACKAGE(*LES),FLAXEN,TRIM0#; ZWE182..GLI MOON ROOF PACKAGE(*MR & *LES),FLAXEN,TRIM0# |
58951-02B50-A3 |
— | ||
|
58951D
|
58951D
58951-02B50-C1
Door, Console Compartment, Outer
[12.2015 - 03.2017] ZWE182..GLI MOON ROOF PACKAGE,BLACK,TRIM2# |
58951-02B50-C1 |
— | ||
|
58952A
|
58952A
58952-02510-A0
Door, Console Compartment, Inner
[06.2014 - 03.2017] NRE181,ZWE182..GLI,GLXI,PREM IVORY,TRIM0# |
58952-02510-A0 |
— | ||
|
58952A
|
58952A
58952-02510-C0
Door, Console Compartment, Inner
[12.2015 - 03.2017] NRE181,ZWE182..GLI,GLXI,PREM BLACK,TRIM2# |
58952-02510-C0 |
— | ||
|
58959B
|
58959B
90541-03078 Cushion(For Cup Holder)[06.2014 -] NRE181,ZRE18#,ZWE182 |
90541-03078 |
from US $1.74 |
||
|
58961A
|
58961A
58961-02210
Hinge, Console Compartment Door Male
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58961-02210 |
— | ||
|
58963
|
58963
58963-02170
Shaft, Console Compartment Door Hinge
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58963-02170 |
— | ||
|
58964
|
58964
58964-02390
Stopper, Console Compartment Door, No.1
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58964-02390 |
— | ||
|
58965A
|
58965A
58965-02400
Stopper, Console Compartment Door, No.2
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58965-02400 |
— | ||
|
58989A
|
58989A
58989-02240-A0
Retainer, Console Box
[06.2014 - 03.2017] NRE181,ZWE182..GLI,GLXI,PREM IVORY,TRIM0# |
58989-02240-A0 |
— | ||
|
58989A
|
58989A
58989-02240-C0
Retainer, Console Box
[12.2015 - 03.2017] NRE181,ZWE182..GLI,GLXI,PREM BLACK,TRIM2# |
58989-02240-C0 |
— | ||
|
90119C0107
|
90119C0107
90119-C0107
New Genuine Part
|
90119-C0107 |
— | ||
|
90159C0006
|
90159C0006
90159-C0006
New Genuine Part
|
90159-C0006 |
— | ||
|
90159C0037
|
90159C0037
90159-C0037
New Genuine Part
|
90159-C0037 |
— | ||
|
90167C0004
|
90167C0004
90167-C0004
New Genuine Part
|
90167-C0004 |
— | ||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9052304003
|
9052304003
90523-04003 New Genuine Part |
90523-04003 |
US $0.67 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
