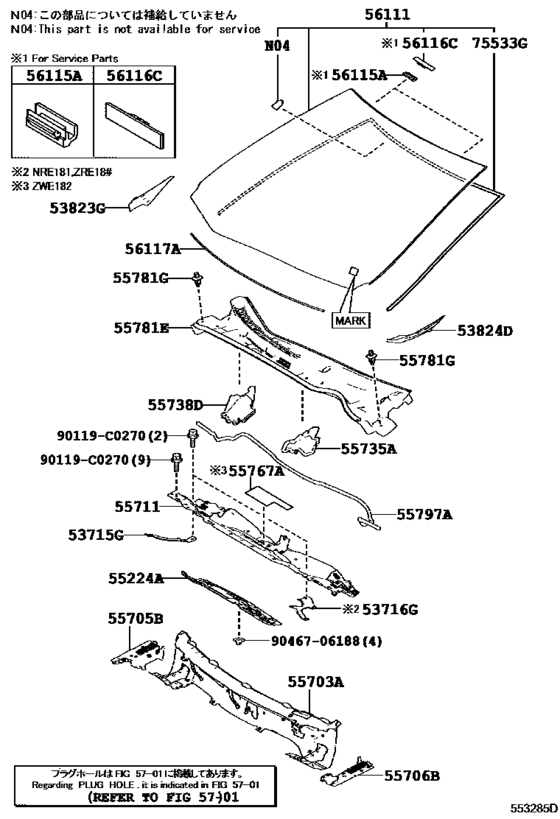

Cowl Panel & Windshield Glass ([06.2014 - ] (1406- )) Diagram Toyota COROLLA
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- ZWE182
- grade
- GLI
- body
- SED
- ENGINE
- 8ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 12.2015
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53715G
|
53715G
53715-02070
Extension, Front Fender Apron, Rear Rh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
53715-02070 |
— | ||
|
53823G
|
53823G
53823-02130
Protector, Front Side Panel, No.2 Rh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
53823-02130 |
— | ||
|
53824D
|
53824D
53824-02130
Protector, Front Side Panel, No.2 Lh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
53824-02130 |
— | ||
|
55224A
|
55224A
55224-02110
Insulator, Dash Panel, Outer No.2
[06.2014 -] NRE181,ZRE18#,ZWE182 |
55224-02110 |
— | ||
|
55703A
|
55703A
55703-02330
Panel Sub-Assy, Cowl Top, Inner
[06.2014 -] NRE181,ZRE18#,ZWE182 |
55703-02330 |
— | ||
|
55705B
|
55705B
55705-02180
Panel Sub-Assy, Cowl Top Side, Rh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
55705-02180 |
— | ||
|
55706B
|
55706B
55706-02180
Panel Sub-Assy, Cowl Top Side, Lh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
55706-02180 |
— | ||
|
55711
|
55711
55701-02480
Panel, Cowl Top, Outer
[12.2015 - 03.2017] ZWE182 |
55701-02480 |
— | ||
|
55735A
|
55735A
55734-02350
Plate, Water Guard, Lh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
55734-02350 |
— | ||
|
55738D
|
55738D
55737-02200
Seal, Heater Air Duct Splash Shield, No.2
[06.2014 -] NRE181,ZRE18#,ZWE182 |
55737-02200 |
— | ||
|
55767A
|
55767A
55767-02030
Sheet, Cowl Top Insulator, No.5
[12.2015 - 03.2017] ZWE182 |
55767-02030 |
— | ||
|
55781E
|
55781E
55708-02680
Louver Sub-Assy, Cowl Top Ventilator
[06.2014 - 10.2016] ZRE181..GL;ZRE182,ZWE182..CVT |
55708-02680 |
— | ||
|
55781E
|
55781E
55708-02681
Louver Sub-Assy, Cowl Top Ventilator
[11.2016 -] NRE181,ZRE18#,ZWE182 |
55708-02681 |
— | ||
|
55781G
|
55781G
90467-C0026
Clip, Cowl Top Ventilator Louver
[06.2014 -] NRE181,ZRE18#,ZWE182 |
90467-C0026 |
— | ||
|
55797A
|
55797A
55797-02150
Seal, Cowl Water Extract
[06.2014 -] NRE181,ZRE18#,ZWE182 |
55797-02150 |
— | ||
|
56111
|
56111
56101-02G90
Glass, Windshield
[06.2014 - 12.2016] ZWE182..GLI;NRE181,ZRE18# GLASS MARK=NSG |
56101-02G90 |
— | ||
|
56111
|
56111
56101-02G91
Glass, Windshield
[01.2017 -] ZWE182..GLI;NRE181,ZRE18# GLASS MARK=NSG |
56101-02G91 |
— | ||
|
56111
|
56111
56101-02J30
Glass, Windshield
[06.2014 - 12.2016] ZWE182..GLI;NRE181,ZRE18# GLASS MARK=FY |
56101-02J30 |
— | ||
|
56111
|
56111
56101-02J31
Glass, Windshield
[01.2017 -] ZWE182..GLI;NRE181,ZRE18# GLASS MARK=FY |
56101-02J31 |
— | ||
|
56115A
|
56115A
56115-30120 Stopper, Windshield Glass, No.1[06.2014 -] NRE181,ZRE18#,ZWE182 |
56115-30120 |
from US $1.81 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[06.2014 -] NRE181,ZRE18#,ZWE182 |
56116-22050 |
from US $1.38 |
||
|
56117A
|
56117A
56117-02220
Dam, Window Glass Adhesive
[06.2014 -] NRE181,ZRE18#,ZWE182 L=1262.5 |
56117-02220 |
— | ||
|
75533G
|
75533G
75533-02180
Moulding, Windshield, Outside
[06.2014 -] NRE181,ZRE18#,ZWE182 MARK=TSG |
75533-02180 |
— | ||
|
75533G
|
75533G
75533-02200
Moulding, Windshield, Outside
[06.2014 -] NRE181,ZRE18#,ZWE182 MARK=FY |
75533-02200 |
— | ||
|
90119C0270
|
90119C0270
90119-C0270
New Genuine Part
|
90119-C0270 |
— | ||
|
9046706188
|
9046706188
90467-06188 Retainer, Dash Panel Silencer |
90467-06188 |
from US $2.03 |
