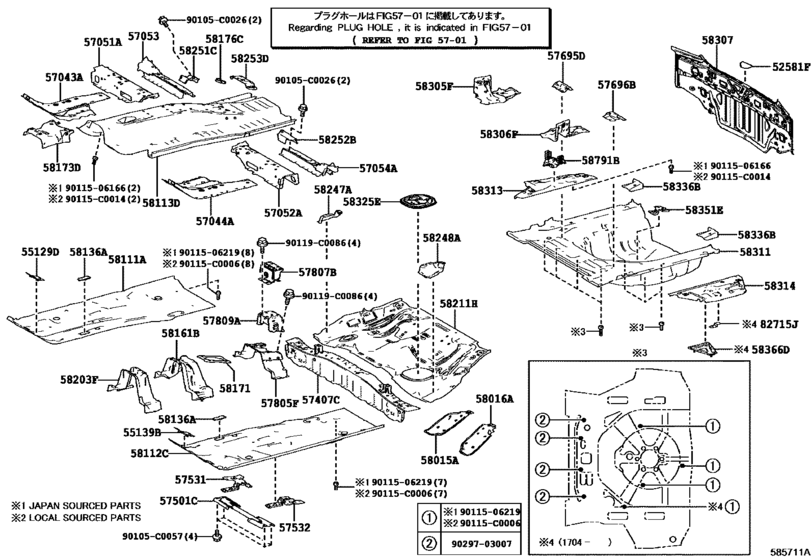

Floor Pan & Lower Back Panel ([12.2015 - ] FLOOR PANEL & LOWER BACK PANEL (1512- )ZWE182) Diagram Toyota COROLLA
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- ZWE182
- grade
- GLI
- body
- SED
- ENGINE
- 8ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 12.2015
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52581F
|
52581F
52581-02080
Protector, Rear Bumper
[06.2014 -] NRE181,ZRE18#,ZWE182 |
52581-02080 |
— | ||
|
55129D
|
55129D
55129-02040
Cover, Dash Panel Hole
[06.2014 -] NRE181,ZRE18#,ZWE182 |
55129-02040 |
— | ||
|
55139B
|
55139B
55139-02030
Cover, Dash Panel Hole
[06.2014 -] NRE181,ZRE18#,ZWE182 |
55139-02030 |
— | ||
|
57043A
|
57043A
57043-02020
Reinforcement Sub-Assy, Front Side Member, Rear Rh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
57043-02020 |
— | ||
|
57044A
|
57044A
57044-02020
Reinforcement Sub-Assy, Front Side Member, Rear Lh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
57044-02020 |
— | ||
|
57051A
|
57051A
57051-02040
Member Sub-Assy, Front Floor Cross, Rh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
57051-02040 |
— | ||
|
57052A
|
57052A
57052-02030
Member Sub-Assy, Front Floor Cross, Lh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
57052-02030 |
— | ||
|
57053
|
57053
57053-02040
Reinforcement Sub-Assy, Front Floor Cross Member, Rh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
57053-02040 |
— | ||
|
57054A
|
57054A
57054-02050
Reinforcement Sub-Assy, Front Floor Cross Member, Lh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
57054-02050 |
— | ||
|
57407C
|
57407C
57407-02110
Member Sub-Assy, Center Floor Cross, No.1
[06.2014 -] NRE181,ZRE18#,ZWE182 |
57407-02110 |
— | ||
|
57501C
|
57501C
57501-12020 Bracket Sub-Assy, Front Seat, Center[06.2014 -] NRE181,ZRE18#,ZWE182 |
57501-12020 |
US $69.01 |
||
|
57531
|
57531
57531-02020
Bracket, Front Floor Center Brace, Rh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
57531-02020 |
— | ||
|
57532
|
57532
57532-02020
Bracket, Front Floor Center Brace, Lh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
57532-02020 |
— | ||
|
57695D
|
57695D
57695-02050
Bracket, Rear Floor Mounting, No.2 Rh
[12.2015 - 03.2017] ZWE182 |
57695-02050 |
— | ||
|
57696B
|
57696B
57696-02030
Bracket, Rear Floor Mounting, No.2 Lh
[12.2015 - 03.2017] ZWE182 |
57696-02030 |
— | ||
|
57805F
|
57805F
57805-02060
Reinforcement Sub-Assy, Belt Anchor, No.1
[06.2014 -] NRE181,ZRE18#,ZWE182 |
57805-02060 |
— | ||
|
57807B
|
57807B
57807-02040
Reinforcement Sub-Assy, Belt Anchor, No.2
[06.2014 -] NRE181,ZRE18#,ZWE182 |
57807-02040 |
— | ||
|
57809A
|
57809A
57809-02060
Reinforcement Sub-Assy, Belt Anchor, No.3
[06.2014 -] NRE181,ZRE18#,ZWE182 |
57809-02060 |
— | ||
|
58015A
|
58015A
58015-02082
Reinforce Sub-Assy, Belt Anchor, No.3 Rh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58015-02082 |
— | ||
|
58016A
|
58016A
58016-02092
Reinforce Sub-Assy, Belt Anchor, No.3 Lh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58016-02092 |
— | ||
|
58111A
|
58111A
58111-02937
Pan, Front Floor, Rh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58111-02937 |
— | ||
|
58112C
|
58112C
58112-02906
Pan, Front Floor, Lh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58112-02906 |
— | ||
|
58113D
|
58113D
58113-02913
Panel, Front Floor Side, No.1 Rh
[12.2015 - 03.2017] ZWE182 |
58113-02913 |
— | ||
| replacement | |||||
|
58113D
|
58113D
58113-02911
Panel, Front Floor Side, No.1 Rh
[12.2015 - 03.2017] ZWE182 |
58113-02911 |
— | ||
|
58136A
|
58136A
58136-02040
Cover, Front Floor Service Hole
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58136-02040 |
— | ||
|
58161B
|
58161B
58161-02060
Reinforcement, Belt Anchor To Floor Pan
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58161-02060 |
— | ||
|
58171
|
58171
58171-02071
Reinforcement, Parking Brake Base
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58171-02071 |
— | ||
|
58173D
|
58173D
58173-02010
Bracket, Computer Mounting, No.3
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58173-02010 |
— | ||
|
58176C
|
58176C
58176-02030
Reinforcement, Parking Brake Base, No.1
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58176-02030 |
— | ||
|
58203F
|
58203F
58203-02030
Bracket Sub-Assy, Exhaust Pipe Mounting
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58203-02030 |
— | ||
|
58211H
|
58211H
58211-02460
Pan, Center Floor
[12.2015 - 03.2017] ZWE182 |
58211-02460 |
— | ||
|
58247A
|
58247A
58247-02100
Reinforcement, Rear Seat Cushion Hinge, Rh
[12.2015 - 03.2017] ZWE182 |
58247-02100 |
— | ||
|
58248A
|
58248A
58248-02020
Reinforcement, Rear Seat Cushion Hinge, Lh
[12.2015 - 03.2017] ZWE182 |
58248-02020 |
— | ||
|
58251C
|
58251C
58251-02040
Brace, Floor Panel, Front Rh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58251-02040 |
— | ||
|
58252B
|
58252B
58252-02020
Brace, Floor Panel, Front Lh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58252-02020 |
— | ||
|
58253D
|
58253D
58253-02060
Bracket, Parking Brake Cable
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58253-02060 |
— | ||
|
58305F
|
58305F
58305-02070
Panel Sub-Assy, Rear Floor Side, Rh
[10.2015 -] NRE181,ZRE18#,ZWE182 |
58305-02070 |
— | ||
|
58306F
|
58306F
58306-02070
Panel Sub-Assy, Rear Floor Side, Lh
[10.2015 -] NRE181,ZRE18#,ZWE182 |
58306-02070 |
— | ||
|
58307
|
58307
58307-02430
Panel Sub-Assy, Body Lower Back
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58307-02430 |
— | ||
|
58311
|
58311
58311-02160
Pan, Rear Floor
[06.2014 - 01.2016] ZRE18#,ZWE182 |
58311-02160 |
— | ||
| replacement | |||||
|
58311
|
58311
58311-02161
Pan, Rear Floor
[06.2014 - 01.2016] ZRE18#,ZWE182 |
58311-02161 |
— | ||
|
58311
|
58311
58311-02161
Pan, Rear Floor
[02.2016 - 04.2017] NRE181,ZRE18#,ZWE182 |
58311-02161 |
— | ||
|
58311
|
58311
58311-02162
Pan, Rear Floor
[04.2017 -] ZRE181; NRE181,ZRE182,ZWE182 |
58311-02162 |
— | ||
|
58313
|
58313
58313-02070
Panel, Rear Floor Side, Rh
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58313-02070 |
— | ||
|
58314
|
58314
58314-02070
Panel, Rear Floor Side, Lh
[06.2014 - 04.2016] ZRE18#,ZWE182 |
58314-02070 |
— | ||
| replacement | |||||
|
58314
|
58314
58314-02071
Panel, Rear Floor Side, Lh
[06.2014 - 04.2016] ZRE18#,ZWE182 |
58314-02071 |
— | ||
|
58314
|
58314
58314-02071
Panel, Rear Floor Side, Lh
[05.2016 -] NRE181,ZRE18#,ZWE182 |
58314-02071 |
— | ||
|
58314
|
58314
58314-02072
Panel, Rear Floor Side, Lh
[04.2017 -] NRE181,ZRE182,ZWE182 |
58314-02072 |
— | ||
|
58325E
|
58325E
58325-02190
Cover, Rear Floor Service Hole
[12.2015 - 03.2017] ZWE182 |
58325-02190 |
— | ||
|
58336B
|
58336B
58336-02080
Reinforcement, Rear Floor Pan
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58336-02080 |
— | ||
|
58351E
|
58351E
58351-02010
Bracket, Spare Wheel Carrier
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58351-02010 |
— | ||
|
58366D
|
58366D
58366-02030
Reinforcement, Fuel Tank Support, Rear
[04.2017 -] NRE181,ZRE182,ZWE182 |
58366-02030 |
— | ||
|
58791B
|
58791B
58791-02100
Carrier, Jack
[06.2014 -] NRE181,ZRE18#,ZWE182 |
58791-02100 |
— | ||
|
82715J
|
82715J
82715-0D100
Bracket, Wiring Harness Clamp
[04.2017 -] NRE181,ZRE182,ZWE182 |
82715-0D100 |
— | ||
|
90105C0026
|
90105C0026
90105-C0026
New Genuine Part
|
90105-C0026 |
— | ||
|
90105C0057
|
90105C0057
90105-C0057
New Genuine Part
|
90105-C0057 |
— | ||
|
90115C0006
|
90115C0006
90115-C0006
Bolt, Weld(For Front Floor Pan, Lh)
|
90115-C0006 |
— | ||
|
90115C0014
|
90115C0014
90115-C0014
Bolt, Weld(For Front Floor Pan)
|
90115-C0014 |
— | ||
|
90119C0086
|
90119C0086
90119-C0086
New Genuine Part
|
90119-C0086 |
— | ||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9029703007
|
9029703007
90297-03007 Retainer, Rear Heater Mounting |
90297-03007 |
US $0.73 |
||
