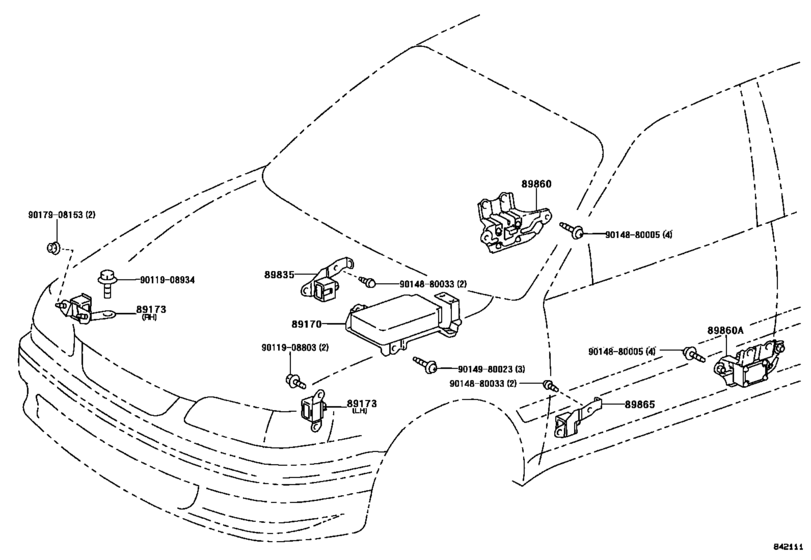

Air Bag ([04.1997 - ] (9704- )JPP) Diagram Toyota COROLLA
- Year
- 1999 - 2001
- Sales region
- Europe
- Frame
- ZZE111
- grade
- STD
- body
- HB
- ENGINE
- 4ZZFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 10.1999
- To
- 07.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89170
|
89170
89170-12261
Sensor Assy, Air Bag
[10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB *80,DRIVER SIDE & PASSENGER SIDE & SIDE |
89170-12261 |
— | ||
|
89170
|
89170
89170-12280
Sensor Assy, Air Bag
[10.1999 - 09.2001] CDE110,WZE110,ZZE11#..JPP..LHD |
89170-12280 |
— | ||
|
89170
|
89170
89170-13020 Sensor Assy, Air Bag[10.1999 - 09.2001] CDE110;WZE110,ZZE11#..JPP..LHD *80,DRIVER SIDE & PASSENGER SIDE |
89170-13020 |
US $1,514.24 |
||
|
89173
|
89173
89173-19115 Sensor, Air Bag, Front[09.1998 - 11.2001] AE111,EE111..UKP;CDE110,WZE110,ZZE11# RH |
89173-19115 |
US $179.09 |
||
|
89173
|
89173
89173-19125 Sensor, Air Bag, Front[09.1998 - 11.2001] AE111,EE111..UKP;CDE110,WZE110,ZZE11# LH |
89173-19125 |
US $179.09 |
||
|
89835
|
89835
89835-12020
Sensor, Door Side Air Bag, Lh
[10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB |
89835-12020 |
— | ||
|
89860
|
89860
89860-12040 Sensor Assy, Side Air Bag, RhSIDE AIR BAG, RH [10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB |
89860-12040 |
US $334.88 |
||
|
89860A
|
89860A
89830-12040 Sensor Assy, Side Air Bag, LhSIDE AIR BAG, LH [10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB |
89830-12040 |
US $334.88 |
||
|
89865
|
89865
89865-12020
Sensor, Door Side Air Bag, Rh
[10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB |
89865-12020 |
— | ||
|
9011908803
|
9011908803
90119-08803 New Genuine Part |
90119-08803 |
US $1.22 |
||
|
9011908934
|
9011908934
90119-08934 New Genuine Part |
90119-08934 |
US $0.70 |
||
|
9014880005
|
9014880005
90148-80005 New Genuine Part |
90148-80005 |
US $1.75 |
||
|
9014880033
|
9014880033
90148-80033 New Genuine Part |
90148-80033 |
US $1.46 |
||
|
9014980023
|
9014980023
90149-80023 New Genuine Part |
90149-80023 |
US $1.60 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.78 |
