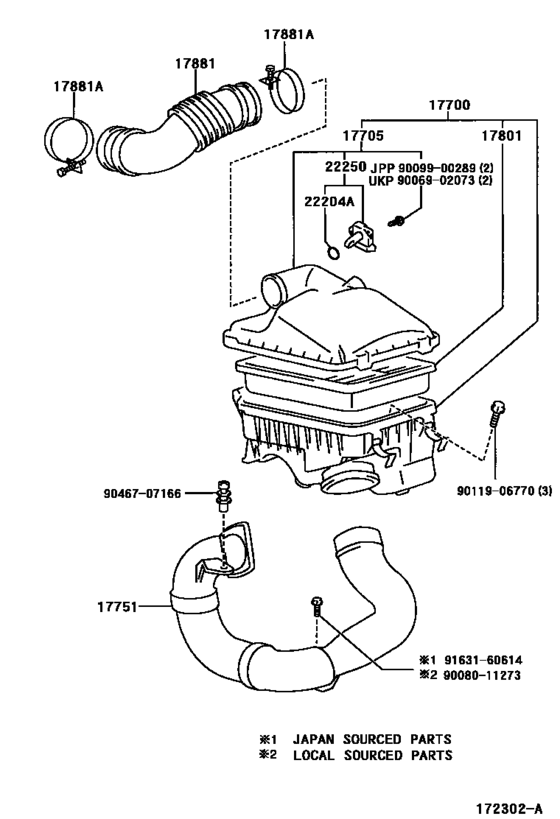

Air Cleaner ([10.1999 - ] (9910- )3ZZFE,4ZZFE) Diagram Toyota COROLLA
- Year
- 1999 - 2001
- Sales region
- Europe
- Frame
- ZZE111
- grade
- STD
- body
- HB
- ENGINE
- 4ZZFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 10.1999
- To
- 07.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-22070
Cleaner Assy, Air
[10.1999 - 09.2001] 3ZZFE,4ZZFE..ZZE11#..JPP |
17700-22070 |
— | ||
|
17705
|
17705
17705-22080
Cap Sub-Assy, Air Cleaner
[10.1999 - 09.2001] 3ZZFE,4ZZFE..ZZE11#..JPP |
17705-22080 |
— | ||
|
17751
|
17751
17751-22040
Inlet, Air Cleaner, No.1
[10.1999 - 09.2001] 3ZZFE,4ZZFE..ZZE11#..JPP |
17751-22040 |
— | ||
|
17801
|
17801
17801-15070 Element Sub-Assy, Air Cleaner Filter[10.1999 - 09.2001] 3ZZFE,4ZZFE..ZZE11#..JPP |
17801-15070 |
from US $39.23 |
||
|
17881
|
17881
17881-22040 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [10.1999 - 09.2001] 3ZZFE,4ZZFE..ZZE11#..JPP |
17881-22040 |
US $55.47 |
||
|
17881A
|
17881A
90460-73001
Clamp Or Clip(For Air Hose, No.1)
[10.1999 - 11.2001] 3ZZFE,4ZZFE..ZZE11# |
90460-73001 |
— | ||
| replacement | |||||
|
17881A
|
17881A
90460-73011 Clamp Or Clip(For Air Hose, No.1)[10.1999 - 11.2001] 3ZZFE,4ZZFE..ZZE11# |
90460-73011 |
US $7.88 |
||
|
22204A
|
22204A
90099-14141 Ring, O(For Intake Air Flow Meter)[10.1999 - 11.2001] 3ZZFE,4ZZFE..ZZE11# |
90099-14141 |
from US $1.09 |
||
|
22250
|
22250
22204-15010 Meter Sub-Assy, Intake Air Flow[10.1999 - 11.2001] 3ZZFE,4ZZFE..ZZE11# |
22204-15010 |
from US $168.01 |
||
|
9006902073
|
9006902073
90069-02073
New Genuine Part
|
90069-02073 |
— | ||
|
9008011273
|
9008011273
90080-11273
New Genuine Part
|
90080-11273 |
— | ||
| replacement | |||||
|
9008011273
|
9008011273
91661-60616 BOLT |
91661-60616 |
from US $0.70 |
||
|
9009900289
|
9009900289
90099-00289 SCREW |
90099-00289 |
from US $0.66 |
||
|
9011906770
|
9011906770
90119-06770 New Genuine Part |
90119-06770 |
US $1.75 |
||
| replacement | |||||
|
9011906770
|
9011906770
90119-06859 BOLT WWASHER |
90119-06859 |
from US $1.03 |
||
|
9046707166
|
9046707166
90467-07166 Clip(For Front Fender Apron Seal) |
90467-07166 |
from US $0.88 |
||
|
9163160614
|
9163160614
91631-60614 BOLT |
91631-60614 |
US $1.60 |
||
| replacement | |||||
|
9163160614
|
9163160614
91661-60616 BOLT |
91661-60616 |
from US $0.70 |
||
