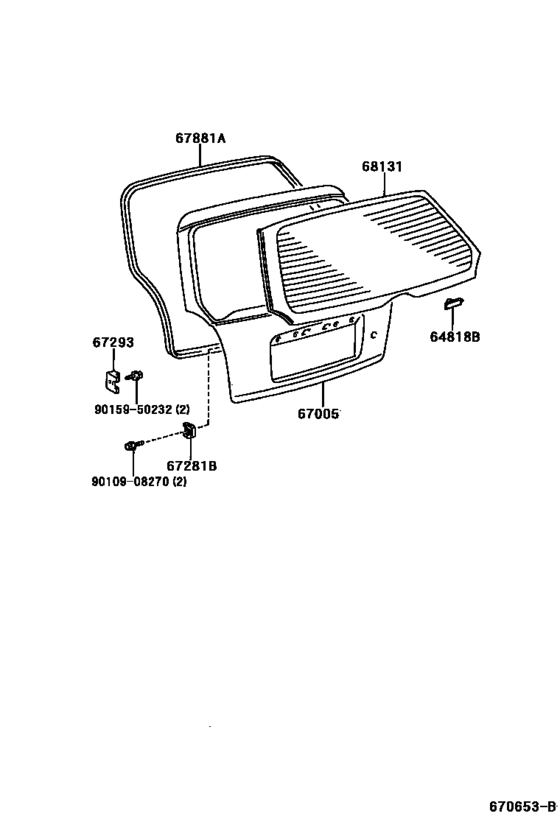

Back Door Panel & Glass ([04.1997 - ] (9704- )HB) Diagram Toyota COROLLA
- Year
- 1999 - 2001
- Sales region
- Europe
- Frame
- ZZE111
- grade
- STD
- body
- HB
- ENGINE
- 4ZZFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 10.1999
- To
- 07.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64818B
|
64818B
64818-12030 Spacer, Back Door Glass, No.1BACK DOOR GLASS, NO.1 [10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB |
64818-12030 |
US $3.49 |
||
|
67005
|
67005
67005-1A890
Panel Sub-Assy, Back Door
[10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB |
67005-1A890 |
— | ||
|
67281B
|
67281B
67281-20040
Stopper, Back Door, Lower
[10.1999 - 09.2001] CDE110,WZE110,ZZE11#..JPP |
67281-20040 |
— | ||
|
67293
|
67293
67293-12080
Cushion, Back Door Lower Stopper
[10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB |
67293-12080 |
— | ||
|
67881A
|
67881A
67881-12270
Weatherstrip, Back Door
[10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB |
67881-12270 |
— | ||
|
68131
|
68131
68131-1A590 Glass, Back DoorBACK DOOR [10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB *EHTT,T=3.5,GREEN |
68131-1A590 |
US $790.61 |
||
|
68131
|
68131
68131-1A600 Glass, Back DoorBACK DOOR [10.1999 - 07.2001] CDE110,WZE110,ZZE11#..LHD..HB *EHTT,T=3.5,GREEN,COLD SPEC |
68131-1A600 |
US $790.61 |
||
|
9010908270
|
9010908270
90109-08270 New Genuine Part |
90109-08270 |
US $1.60 |
||
|
9015950232
|
9015950232
90159-50232 SCREW WWASHER |
90159-50232 |
US $2.15 |
