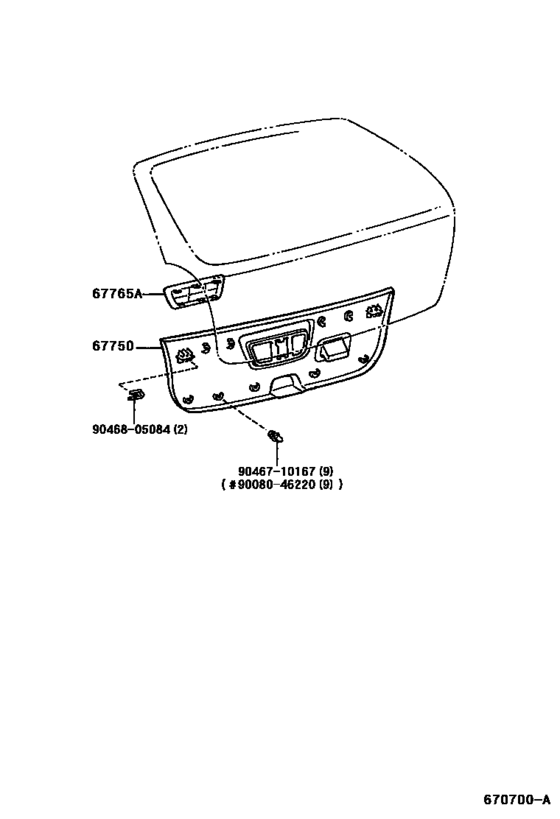

Back Door Panel & Glass ([04.1997 - ] (9704- )HB) Diagram Toyota COROLLA
- Year
- 1999 - 2001
- Sales region
- Europe
- Frame
- ZZE111
- grade
- STD
- body
- HB
- ENGINE
- 4ZZFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 10.1999
- To
- 07.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67750
|
67750
67750-12080-B0 Board Assy, Back Door TrimBACK DOOR TRIM [10.1999 - 07.2001] ZZE11#..G6,STD SHADOW GRAY,TRIM1#; CDE110,WZE110,ZZE11#..HB..(SOL,TERRA) SHADOW GRAY,TRIM11,16 |
67750-12080-B0 |
US $144.14 |
||
|
67765A
|
67765A
67765-12100-B0 Cover, Back Door Service Hole, No.1BACK DOOR SERVICE HOLE, NO.1 [10.1999 - 07.2001] ZZE11#..G6,STD SHADOW GRAY,TRIM1#; CDE110,WZE110,ZZE11#..HB..(SOL,TERRA) SHADOW GRAY,TRIM11,16 |
67765-12100-B0 |
US $31.89 |
||
|
9008046220
|
9008046220
90080-46220
New Genuine Part
|
90080-46220 |
— | ||
|
9046710167
|
9046710167
90467-10167 Clip(For Rear Floor Finish Plate) |
90467-10167 |
from US $0.96 |
||
|
9046805084
|
9046805084
90468-05084 Clip(For Front Body Pillar Garnish) |
90468-05084 |
from US $0.88 |
