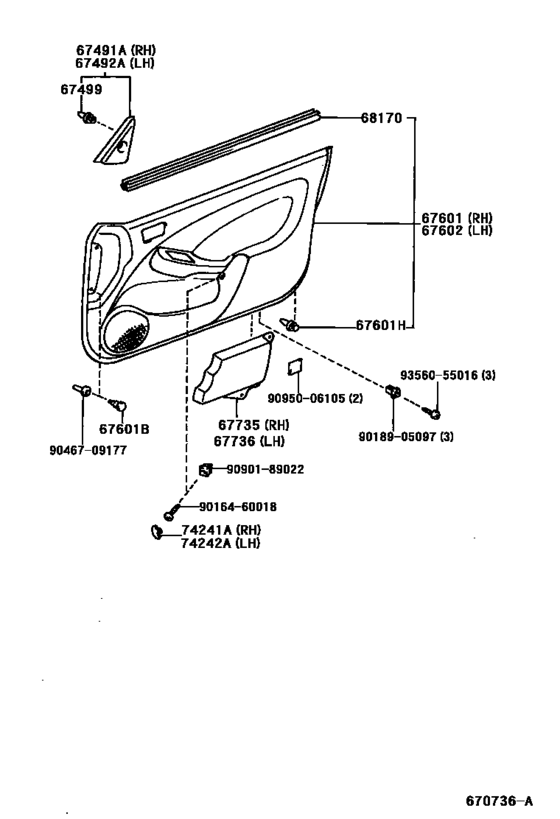

Front Door Panel & Glass ([04.1997 - ] (9704- )HB) Diagram Toyota COROLLA
- Year
- 1999 - 2001
- Sales region
- Europe
- Frame
- ZZE111
- grade
- STD
- body
- HB
- ENGINE
- 4ZZFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 10.1999
- To
- 07.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67491A
|
67491A
67491-12420 Garnish, Front Door Lower Frame Bracket, RhFRONT DOOR LOWER FRAME BRACKET, RH [10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB..(STD,TERRA) |
67491-12420 |
US $16.16 |
||
|
67492A
|
67492A
67492-12420 Garnish, Front Door Lower Frame Bracket, LhFRONT DOOR LOWER FRAME BRACKET, LH [10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB..(STD,TERRA) |
67492-12420 |
US $16.16 |
||
|
67499
|
67499
67771-12060 Retainer, Door Trim[10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB |
67771-12060 |
US $1.79 |
||
|
67601
|
67601
67610-1K490-B1
Board Sub-Assy, Front Door Trim, Rh
[10.1999 - 07.2001] ZZE111..STD MIDIUM CHARCOAL,TRIM1# |
67610-1K490-B1 |
— | ||
|
67601B
|
67601B
90467-06133-B4 Clip(For Front Door Trim Board)[10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB..(4FC,5F) MD.CHARCOAL,TRIM11 |
90467-06133-B4 |
US $4.12 |
||
|
67601B
|
67601B
90467-06133-C0 Clip, Step Plate Cover[10.1999 - 07.2001] ZZE11#..G6,STD BLACK,TRIM1#; CDE110,WZE110,ZZE11#..HB..(SOL,TERRA) BLACK,TRIM11,16 |
90467-06133-C0 |
from US $1.46 |
||
|
67601H
|
67601H
67771-12050 Clip, Radiator Grille[10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB |
67771-12050 |
from US $1.48 |
||
|
67602
|
67602
67660-12250-B1
Board Sub-Assy, Front Door Trim, Lh
[10.1999 - 07.2001] ZZE111..STD MIDIUM CHARCOAL,TRIM1# |
67660-12250-B1 |
— | ||
|
67735
|
67735
67735-12051 Pad, Front Door Trim, Lower RhFRONT DOOR TRIM, LOWER RH [10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB |
67735-12051 |
US $82.99 |
||
|
67736
|
67736
67736-12051 Pad, Front Door Trim, Lower LhFRONT DOOR TRIM, LOWER LH [10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB |
67736-12051 |
US $82.99 |
||
|
68170
|
68170
68171-12280
Weatherstrip Assy, Front Door Glass, Inner
[10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB RH |
68171-12280 |
— | ||
|
68170
|
68170
68172-12200
Weatherstrip Assy, Front Door Glass, Inner
[10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB LH |
68172-12200 |
— | ||
|
74241A
|
74241A
74241-12030-B0
Plug, Front Door Armrest, Rh
[10.1999 - 07.2001] ZZE111..STD MD.CHARCOAL,TRIM1#; CDE110,WZE110,ZZE11#..HB..(SOL,TERRA) MD.CHARCOAL,TRIM11 |
74241-12030-B0 |
— | ||
|
74242A
|
74242A
74242-12020-B0
Plug, Front Door Armrest, Lh
[10.1999 - 07.2001] ZZE111..STD MD.CHARCOAL,TRIM1#; CDE110,WZE110,ZZE11#..HB..(SOL,TERRA) MD.CHARCOAL,TRIM11 |
74242-12020-B0 |
— | ||
|
9016460018
|
9016460018
90164-60018 SCREW |
90164-60018 |
US $1.25 |
||
|
9018905097
|
9018905097
90189-05097 GROMMET SCREW |
90189-05097 |
US $1.43 |
||
|
9046709177
|
9046709177
90467-09177 CLIP |
90467-09177 |
from US $0.92 |
||
|
9090189022
|
9090189022
90901-89022 New Genuine Part |
90901-89022 |
US $1.43 |
||
|
9095006105
|
9095006105
90950-06105 Seal, Front Door Front Lower Frame Cover |
90950-06105 |
US $1.97 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.66 |
