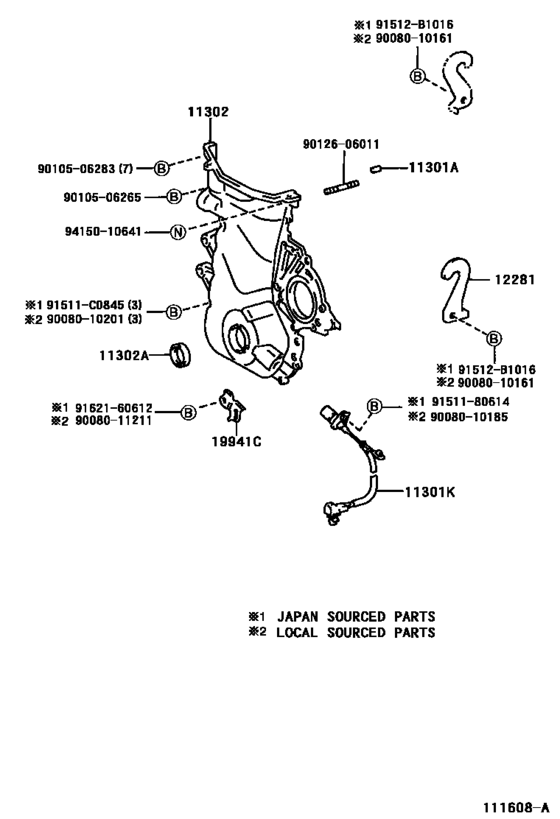

Timing Gear Cover & Rear End Plate ([10.1999 - ] (9910- )3ZZFE,4ZZFE) Diagram Toyota COROLLA
- Year
- 1999 - 2001
- Sales region
- Europe
- Frame
- ZZE111
- grade
- STD
- body
- HB
- ENGINE
- 4ZZFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 10.1999
- To
- 07.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11301A
|
11301A
90250-08074 Pin, Straight(For Timing Gear Case)[10.1999 - 11.2001] 3ZZFE,4ZZFE..ZZE11# L=15,OD=8 |
90250-08074 |
US $1.79 |
||
|
11301K
|
11301K
90919-05030 Sensor, Crank Position[10.1999 - 11.2001] 3ZZFE,4ZZFE..ZZE11# |
90919-05030 |
from US $98.98 |
||
|
11302
|
11302
11321-22021 Cover Sub-Assy, Timing Chain Or Belt[10.1999 - 09.2001] 3ZZFE,4ZZFE..ZZE11#..JPP |
11321-22021 |
US $222.40 |
||
|
11302A
|
11302A
90311-38059 Seal, Oil(For Timing Chain Or Belt Cover)[10.1999 - 09.2001] 3ZZFE,4ZZFE..ZZE11#..JPP |
90311-38059 |
from US $4.84 |
||
|
12281
|
12281
12281-22021 Hanger, Engine, No.1[10.1999 - 11.2001] 3ZZFE,4ZZFE..ZZE11# |
12281-22021 |
US $13.10 |
||
|
19941C
|
19941C
19941-22010 Clamp, Cord(For Crank Position Sensor)[10.1999 - 11.2001] 3ZZFE,4ZZFE..ZZE11# |
19941-22010 |
US $4.37 |
||
|
91511C0845
|
91511C0845
91511-C0845 New Genuine Part |
91511-C0845 |
US $2.33 |
||
| replacement | |||||
|
91511C0845
|
91511C0845
91511-K0845 New Genuine Part |
91511-K0845 |
US $3.05 |
||
|
91512B1016
|
91512B1016
91512-B1016 New Genuine Part |
91512-B1016 |
US $2.33 |
||
|
9008010161
|
9008010161
90080-10161 New Genuine Part |
90080-10161 |
US $1.02 |
||
|
9008010185
|
9008010185
90080-10185 New Genuine Part |
90080-10185 |
US $0.73 |
||
|
9008010201
|
9008010201
90080-10201
New Genuine Part
|
90080-10201 |
— | ||
|
9008011211
|
9008011211
90080-11211
New Genuine Part
|
90080-11211 |
— | ||
|
9010506265
|
9010506265
90105-06265 New Genuine Part |
90105-06265 |
US $1.75 |
||
|
9010506283
|
9010506283
90105-06283 BOLT FLANGE |
90105-06283 |
from US $0.94 |
||
|
9012606011
|
9012606011
90126-06011 New Genuine Part |
90126-06011 |
US $5.02 |
||
|
9151180614
|
9151180614
91511-80614 BOLT FLANGE |
91511-80614 |
US $1.25 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
9415010641
|
9415010641
94150-10641 Nut |
94150-10641 |
US $1.08 |
||
