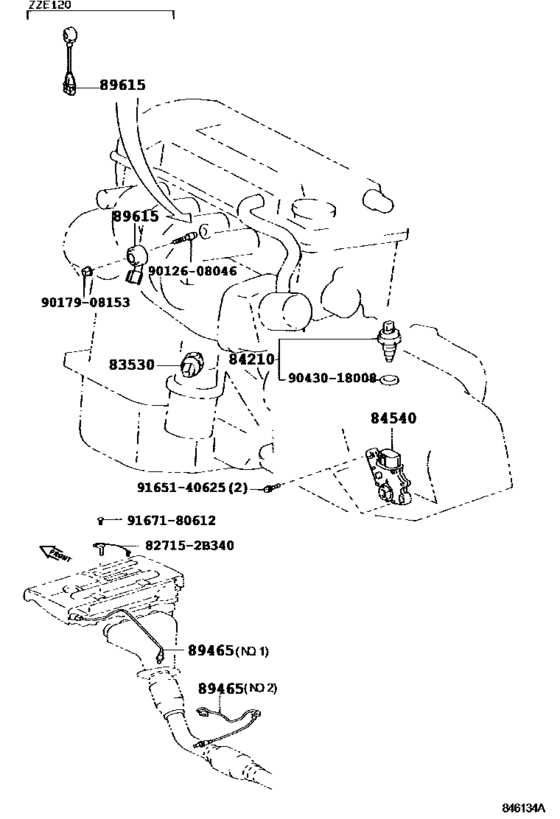

Switch & Relay & Computer ([05.2004 - ] ENGINE & TRANSMISSION (0405- )ZZE12#..JPP) Diagram Toyota COROLLA
- Year
- 2001 - 2006
- Sales region
- Europe
- Frame
- ZZE121
- grade
- TERRA
- body
- SED
- ENGINE
- 3ZZFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 10.2001
- To
- 10.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[10.2001 - 05.2004] ZZE12#..JPP DENSO |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [10.2001 - 05.2004] ZZE12#..JPP DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[10.2001 - 05.2004] ZZE12#..JPP DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [10.2001 - 05.2004] ZZE12#..JPP YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[10.2001 - 05.2004] CDE120,ZZE12#..JPP..5F |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[10.2001 - 05.2004] CDE120,ZZE12#..JPP..5F |
84210-52050 |
from US $20.67 |
||
|
89465
|
89465
89465-12750
Sensor, Oxygen
[05.2004 -] ZZE121..JPP NO.1 |
89465-12750 |
— | ||
|
89465
|
89465
89465-12760
Sensor, Oxygen
[05.2004 -] ZZE121..JPP NO.2 |
89465-12760 |
— | ||
|
89465
|
89465
89465-13030 Sensor, Oxygen[10.2001 - 05.2004] ZZE121..JPP NO.1 |
89465-13030 |
US $149.76 |
||
|
89465
|
89465
89465-13040 Sensor, OxygenOXYGEN NO.2 [10.2001 - 05.2004] ZZE121..JPP NO.2 |
89465-13040 |
US $141.87 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[10.2001 - 05.2004] ZZE121..JPP |
89615-20090 |
from US $36.02 |
||
|
827152B340
|
827152B340
82715-2B340 Bracket,wiring Harness Clamp |
82715-2B340 |
US $4.22 |
||
|
9012608046
|
9012608046
90126-08046 New Genuine Part |
90126-08046 |
US $3.52 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
