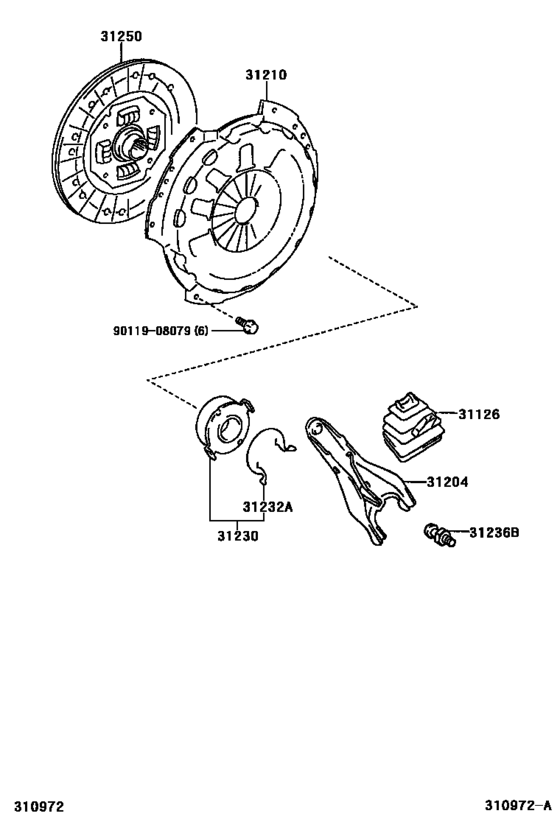

Clutch & Release Fork ([05.2002 - ] (0205- )ZZE12#..MTM) Diagram Toyota COROLLA
- Year
- 2002 - 2008
- Sales region
- General
- Frame
- ZZE121
- grade
- XLI
- body
- SED
- ENGINE
- 3ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- VEN
- Model
- COROLLA (S.AMERICA)
- From
- 09.2002
- To
- 09.2008
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-12051 Boot, Clutch Release Fork[05.2002 - 08.2005] ZZE12#..MTM..VEN |
31126-12051 |
from US $10.08 |
||
|
31204
|
31204
31204-17010 Fork Sub-Assy, Clutch Release[05.2002 - 08.2005] ZZE12#..MTM..VEN |
31204-17010 |
from US $44.23 |
||
|
31210
|
31210
31210-02150
Cover Assy, Clutch
[09.2002 - 08.2005] ZZE121..MTM..VEN |
31210-02150 |
— | ||
|
31230
|
31230
31230-12191 Bearing Assy, Clutch Release[05.2002 - 05.2007] ZZE12#..MTM |
31230-12191 |
from US $37.65 |
||
|
31232A
|
31232A
31232-12070 Clip, Release Bearing Hub[05.2002 - 08.2005] ZZE12#..MTM..VEN |
31232-12070 |
US $3.20 |
||
|
31236B
|
31236B
31236-12020 Support, Release Fork[05.2002 - 08.2005] ZZE12#..MTM..VEN |
31236-12020 |
US $8.16 |
||
|
31250
|
31250
31250-02100
Disc Assy, Clutch
[09.2002 - 08.2005] ZZE12#..MTM..VEN |
31250-02100 |
— | ||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
