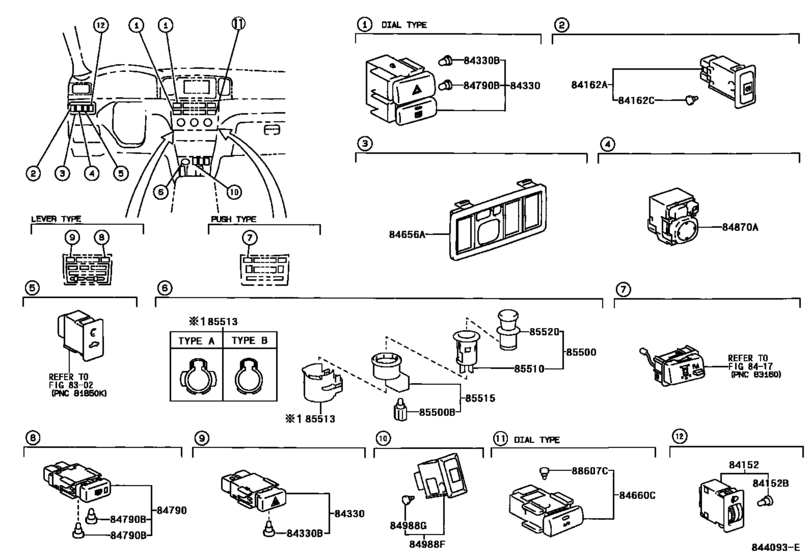

Switch & Relay & Computer ([03.2001 - ] INSTRUMENT PANEL (0103- )LHD) Diagram Toyota COROLLA
- Year
- 2001 - 2008
- Sales region
- General
- Frame
- ZZE121
- grade
- 16J
- ENGINE
- 3ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- Model
- COROLLA (ASIA/INDIA)
- From
- 07.2001
- To
- 02.2008
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84330
|
84330
84332-12450 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [07.2001 - 03.2004] NZE120,ZZE121..(16J,J)..(PHL,VN) |
84332-12450 |
US $63.48 |
||
|
84330B
|
84330B
84999-10310 Bulb, Air Conditioner Control[05.2001 - 08.2005] ZZE121..16J..PHL;NZE120,ZZE12#..(16,18J,J)..(IND,TH,VN) 14V 0.91W |
84999-10310 |
from US $2.93 |
||
|
84656A
|
84656A
84656-12130-B1 Bezel, SwitchSWITCH [07.2001 - 03.2004] ZZE12#..PHL,VN STONE,TRIM1# |
84656-12130-B1 |
US $15.43 |
||
| replacement | |||||
|
84656A
|
84656A
84656-12130-B0
Bezel, Switch
[07.2001 - 03.2004] ZZE12#..PHL,VN STONE,TRIM1# |
84656-12130-B0 |
— | ||
|
84656A
|
84656A
84656-12130-B2
Bezel, Switch
[01.2004 - 02.2008] ZZE121..PHL MD.GRAY,TRIM1# |
84656-12130-B2 |
— | ||
| replacement | |||||
|
84656A
|
84656A
84656-12130-B0
Bezel, Switch
[01.2004 - 02.2008] ZZE121..PHL MD.GRAY,TRIM1# |
84656-12130-B0 |
— | ||
|
84790B
|
84790B
90010-01060 Bulb(For Rear Window Defogger Switch)[05.2001 - 08.2005] ZZE121..16J..PHL;NZE120,ZZE12#..(16,18J,J)..(IND,TH,VN) 14V0.84W,W(GREEN CAP) |
90010-01060 |
US $5.82 |
||
|
84870A
|
84870A
84872-02020
Switch Assy, Outer Mirror
[07.2001 - 08.2005] ZZE12#..PHL;ZZE122..18J |
84872-02020 |
— | ||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[03.2001 - 08.2005] NZE120,ZZE12# |
85500-12240 |
from US $28.68 |
||
|
85500B
|
85500B
90010-01065
Bulb, Cigarette Lighter
[03.2001 - 08.2005] NZE120,ZZE12# 14V 1.4W,W(GREEN CAP) |
90010-01065 |
— | ||
| replacement | |||||
|
85500B
|
85500B
84999-10250 Bulb, Key Cylinder Lamp[03.2001 - 08.2005] NZE120,ZZE12# 14V 1.4W,W(GREEN CAP) |
84999-10250 |
from US $4.62 |
||
|
85510
|
85510
85510-16040 Socket & Retainer Assy, Cigarlighter[03.2001 - 08.2005] NZE120,ZZE12# |
85510-16040 |
US $24.47 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[04.2002 - 08.2005] NZE120,ZZE12# TYPE A:REFER ILLUST. |
85513-12020 |
from US $5.21 |
||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[04.2002 - 08.2005] NZE120,ZZE12# TYPE B:REFER ILLUST. |
85513-28010 |
from US $2.65 |
||
|
85515
|
85515
85515-12110 Stay, Cigarette Lighter Bezel[03.2001 - 08.2005] NZE120,ZZE12# |
85515-12110 |
US $20.09 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[03.2001 - 08.2005] NZE120,ZZE12# |
85520-28010 |
from US $17.90 |
||
