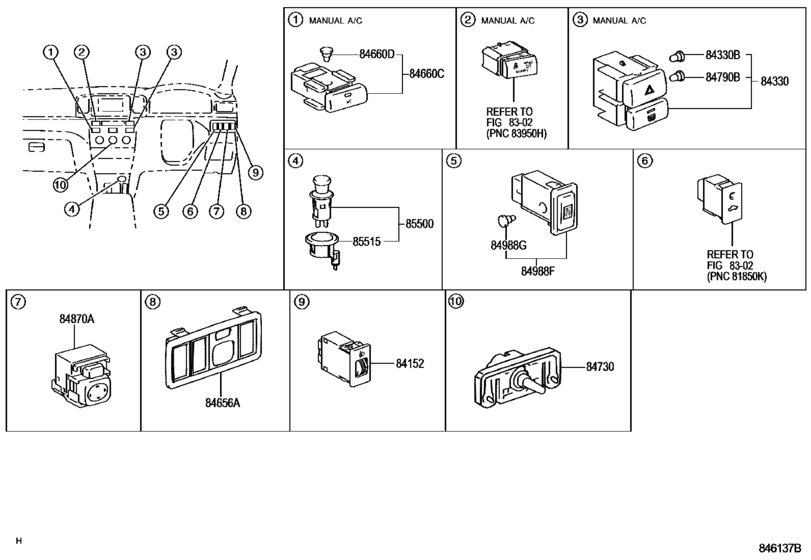

Switch & Relay & Computer ([05.2004 - ] INSTRUMENT PANEL (0405- )JPP..RHD) Diagram Toyota COROLLA
- Year
- 2004 - 2006
- Sales region
- Europe
- Frame
- ZZE121
- grade
- TERRA
- body
- SED
- ENGINE
- 3ZZFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.2004
- To
- 10.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84152
|
84152
84152-02020
Switch, Headlamp Leveling
[05.2004 - 09.2004] NDE120,ZZE12#..JPP |
84152-02020 |
— | ||
| replacement | |||||
|
84152
|
84152
84152-02021
Switch, Headlamp Leveling
[05.2004 - 09.2004] NDE120,ZZE12#..JPP |
84152-02021 |
— | ||
|
84152
|
84152
84152-02021
Switch, Headlamp Leveling
[09.2004 -] NDE120,ZZE12#..JPP |
84152-02021 |
— | ||
|
84330
|
84330
84332-12480 Switch Assy, Hazard Warning Signal[05.2004 -] NDE120,ZZE12#..JPP..TERRA |
84332-12480 |
US $77.17 |
||
| replacement | |||||
|
84330
|
84330
84332-12440 Switch Assy, Hazard Warning Signal[05.2004 -] NDE120,ZZE12#..JPP..TERRA |
84332-12440 |
US $82.12 |
||
|
84330
|
84330
84332-12490 Switch Assy, Hazard Warning Signal[05.2004 -] NDE120,ZZE12#..JPP..TERRA COLD SPEC |
84332-12490 |
US $155.79 |
||
| replacement | |||||
|
84330
|
84330
84332-12460
Switch Assy, Hazard Warning Signal
[05.2004 -] NDE120,ZZE12#..JPP..TERRA COLD SPEC |
84332-12460 |
— | ||
|
84330B
|
84330B
84999-10310 Bulb, Air Conditioner Control[05.2004 -] NDE120,ZZE12#..JPP..TERRA 14V 0.91W |
84999-10310 |
from US $2.96 |
||
|
84656A
|
84656A
84656-12090-B0
Bezel, Switch
[05.2004 -] ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
84656-12090-B0 |
— | ||
| replacement | |||||
|
84656A
|
84656A
84656-12090-C0 Cover, Bezel Switch Hole[05.2004 -] ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
84656-12090-C0 |
US $15.72 |
||
|
84656A
|
84656A
84656-12110-B0 Bezel, SwitchSWITCH [05.2004 -] ZZE12#..JPP..RHD W/O(OUTER MIRROR SWITCH),DK.GRAY,TRIM1# |
84656-12110-B0 |
US $16.31 |
||
|
84660C
|
84660C
84660-02040
Switch, Cooler
[05.2004 -] NDE120,ZZE12#..JPP..TERRA DEALER OPTION |
84660-02040 |
— | ||
|
84660C
|
84660C
84660-12210 Switch, Cooler[05.2004 -] NDE120,ZZE12#..JPP..TERRA |
84660-12210 |
US $77.17 |
||
|
84660D
|
84660D
90010-03059
Bulb(For Cooler Switch)
[05.2004 -] NDE120,ZZE12#..JPP..TERRA 14V 1.12W |
90010-03059 |
— | ||
|
84730
|
84730
84732-02040 Switch Assy, Heater BlowerHEATER BLOWER [05.2004 -] NDE120,ZZE12#..JPP..TERRA |
84732-02040 |
US $104.83 |
||
|
84790B
|
84790B
90010-01079 Bulb(For Rear Window Defogger Switch)[05.2004 -] NDE120,ZZE12#..JPP..TERRA 14V 0.06W |
90010-01079 |
US $6.99 |
||
|
84870A
|
84870A
84872-52030 Switch Assy, Outer Mirror[05.2004 -] NDE120,ZZE12#..JPP |
84872-52030 |
US $53.29 |
||
|
84988F
|
84988F
84988-13010 Switch, Traction ControlTRACTION CONTROL [05.2004 - 10.2005] ZZE12#..JPP..RHD |
84988-13010 |
US $57.51 |
||
| replacement | |||||
|
84988F
|
84988F
84988-26010 Switch, Traction Control[05.2004 - 10.2005] ZZE12#..JPP..RHD |
84988-26010 |
US $57.51 |
||
|
84988G
|
84988G
84999-10320 Bulb, Satellite Switch[05.2004 - 10.2005] ZZE12#..JPP..RHD 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
85500
|
85500
85500-09010
Lighter Assy, Cigarette
[05.2004 - 09.2004] NDE120,ZZE12#..JPP |
85500-09010 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-09040
Lighter Assy, Cigarette
[05.2004 - 09.2004] NDE120,ZZE12#..JPP |
85500-09040 |
— | ||
|
85500
|
85500
85500-09040
Lighter Assy, Cigarette
[09.2004 -] NDE120,ZZE12#..JPP |
85500-09040 |
— | ||
|
85515
|
85515
85515-05010
Stay, Cigarette Lighter Bezel
[05.2004 - 09.2004] NDE120,ZZE12#..JPP |
85515-05010 |
— | ||
| replacement | |||||
|
85515
|
85515
85515-05011
Stay, Cigarette Lighter Bezel
[05.2004 - 09.2004] NDE120,ZZE12#..JPP |
85515-05011 |
— | ||
