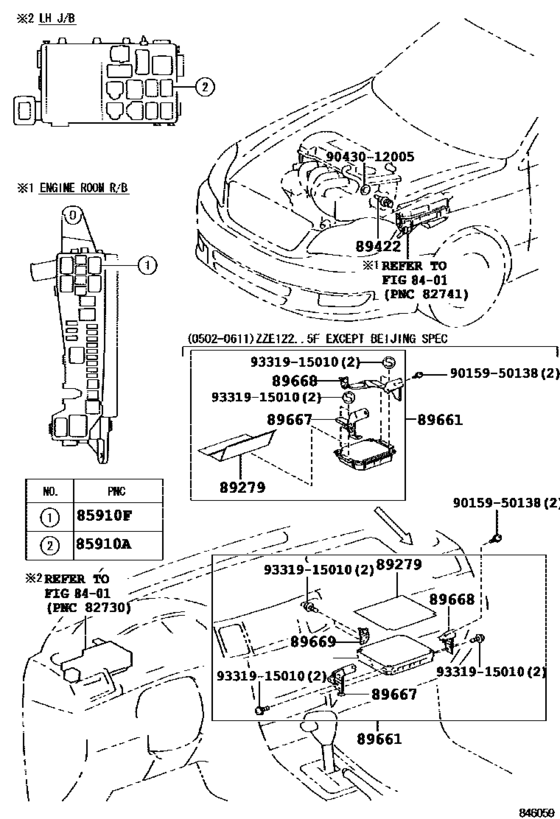

Electronic Fuel Injection System ([02.2004 - 05.2007] (0402-0705)) Diagram Toyota COROLLA
- Year
- 2005 - 2007
- Sales region
- General
- Frame
- ZZE122
- grade
- GLI
- body
- SED
- ENGINE
- 1ZZFE
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 02.2005
- To
- 05.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90080-87010 Relay, Ignition, No.1[02.2004 - 11.2006] ZZE122 P/N LABEL=9008087010 |
90080-87010 |
US $14.27 |
||
|
85910A
|
85910A
90080-87019
Relay, Ignition, No.2
[02.2004 - 11.2006] ZZE122 P/N LABEL=9008087019 |
90080-87019 |
— | ||
| replacement | |||||
|
85910A
|
85910A
90080-87021
Relay, Lamp Cut
[02.2004 - 11.2006] ZZE122 P/N LABEL=9008087019 |
90080-87021 |
— | ||
|
85910A
|
85910A
90080-87027
Relay, Lamp Cut
[02.2004 - 11.2006] ZZE122 P/N LABEL=9008087027 |
90080-87027 |
— | ||
| replacement | |||||
|
85910A
|
85910A
90080-87021
Relay, Lamp Cut
[02.2004 - 11.2006] ZZE122 P/N LABEL=9008087027 |
90080-87021 |
— | ||
|
85910A
|
85910A
90987-T2005
Relay, Water Pump
[02.2004 - 05.2007] ZZE122 P/N LABEL=90987T2005 |
90987-T2005 |
— | ||
|
85910F
|
85910F
90080-87010 Relay, Ignition, No.1[02.2004 - 11.2006] ZZE122 P/N LABEL=9008087010 |
90080-87010 |
US $14.27 |
||
|
85910F
|
85910F
90080-87019
Relay, Ignition, No.2
[02.2004 - 11.2006] ZZE122 P/N LABEL=9008087019 |
90080-87019 |
— | ||
| replacement | |||||
|
85910F
|
85910F
90080-87021
Relay, Lamp Cut
[02.2004 - 11.2006] ZZE122 P/N LABEL=9008087019 |
90080-87021 |
— | ||
|
85910F
|
85910F
90080-87027
Relay, Lamp Cut
[02.2004 - 11.2006] ZZE122 P/N LABEL=9008087027 |
90080-87027 |
— | ||
| replacement | |||||
|
85910F
|
85910F
90080-87021
Relay, Lamp Cut
[02.2004 - 11.2006] ZZE122 P/N LABEL=9008087027 |
90080-87021 |
— | ||
|
85910F
|
85910F
90987-T2005
Relay, Water Pump
[02.2004 - 05.2007] ZZE122 P/N LABEL=90987T2005 |
90987-T2005 |
— | ||
|
89279
|
89279
89279-12150 Cover, Engine Control Computer[06.2005 - 11.2006] ZZE122..5F BEIJING SPEC,REFER TO FIG 22-11 |
89279-12150 |
US $5.53 |
||
|
89279
|
89279
89279-52050 Cover, Diesel Engine Control Computor[02.2005 - 11.2006] ZZE122..5F |
89279-52050 |
US $10.48 |
||
|
89422
|
89422
89422-35010 Sensor, Water Temperature (For E.f.i.)[02.2004 - 05.2007] ZZE122 |
89422-35010 |
from US $29.03 |
||
|
89661
|
89661
89660-02E60
Computer, Engine Control
[02.2005 - 11.2006] ZZE122..5F P/N LABEL=8966102A20 |
89660-02E60 |
— | ||
|
89661
|
89661
89660-02J20
Computer, Engine Control
[06.2005 - 05.2007] ZZE122..5F P/N LABEL=8966102F30 |
89660-02J20 |
— | ||
|
89661
|
89661
89660-02P70
Computer, Engine Control
[11.2006 - 05.2007] ZZE122..5F P/N LABEL=8966102J90 |
89660-02P70 |
— | ||
|
89667
|
89667
89667-12190 Bracket, Engine Control Computer[06.2005 - 11.2006] ZZE122..5F BEIJING SPEC,REFER TO FIG 22-11 |
89667-12190 |
US $10.34 |
||
|
89667
|
89667
89667-13030 Bracket, Engine Control ComputerENGINE CONTROL COMPUTER [02.2005 - 11.2006] ZZE122..5F |
89667-13030 |
US $7.86 |
||
|
89668
|
89668
89668-12100 Bracket, Engine Control Computer, No.2[06.2005 - 11.2006] ZZE122..5F BEIJING SPEC,REFER TO FIG 22-11 |
89668-12100 |
US $11.21 |
||
|
89668
|
89668
89668-13030 Bracket, Engine Control Computer, No.2ENGINE CONTROL COMPUTER, NO.2 [02.2005 - 11.2006] ZZE122..5F |
89668-13030 |
US $19.80 |
||
|
89669
|
89669
89669-12030 Bracket, Engine Control Computer, No.3[06.2005 - 11.2006] ZZE122..5F BEIJING SPEC,REFER TO FIG 22-11 |
89669-12030 |
US $5.68 |
||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $0.83 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.65 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
