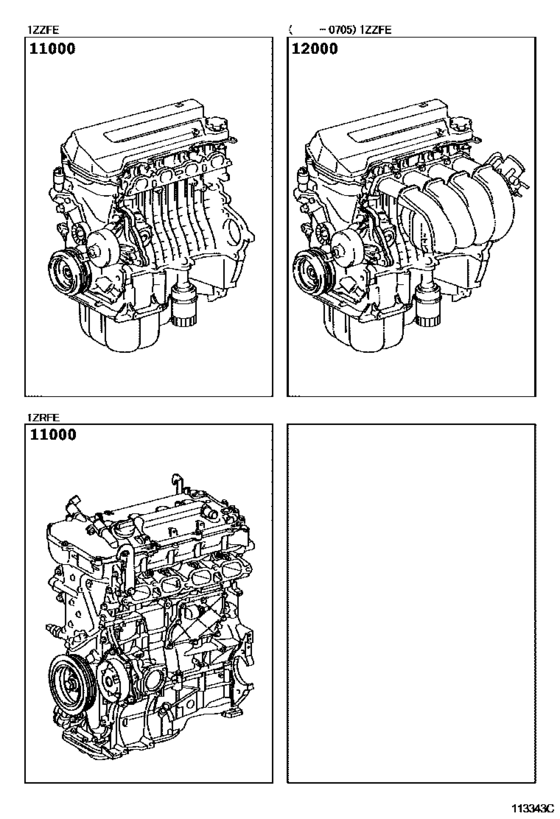

Partial Engine Assembly ([02.2004 - ] (0402- )) Diagram Toyota COROLLA
- Year
- 2005 - 2007
- Sales region
- General
- Frame
- ZZE122
- grade
- GLI
- body
- SED
- ENGINE
- 1ZZFE
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 02.2005
- To
- 05.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11000
|
11000
19000-22330 Engine Assy, Partial[02.2004 - 06.2006] 1ZZFE..ZZE122 REFER TO ILLUSTRATION FIG.22-11 |
19000-22330 |
US $9,070.88 |
||
| replacements | |||||
|
11000
|
11000
19000-22144
Engine Assy, Partial
[02.2004 - 06.2006] 1ZZFE..ZZE122 REFER TO ILLUSTRATION FIG.22-11 |
19000-22144 |
— | ||
|
11000
|
11000
16258-28030 Gasket(For Heater Return)[02.2004 - 06.2006] 1ZZFE..ZZE122 REFER TO ILLUSTRATION FIG.22-11 |
16258-28030 |
from US $2.91 |
||
|
11000
|
11000
16268-22101 Pipe, Water By-Pass, No.1[02.2004 - 06.2006] 1ZZFE..ZZE122 REFER TO ILLUSTRATION FIG.22-11 |
16268-22101 |
US $94.64 |
||
|
11000
|
11000
16268-22161 Pipe, Water By-Pass, No.1[02.2004 - 06.2006] 1ZZFE..ZZE122 REFER TO ILLUSTRATION FIG.22-11 |
16268-22161 |
US $96.20 |
||
|
11000
|
11000
19000-22A40
Engine Assy, Partial
[06.2005 - 05.2007] 1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11 |
19000-22A40 |
— | ||
| replacements | |||||
|
11000
|
11000
19000-22292 Engine Assy, Partial[06.2005 - 05.2007] 1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11 |
19000-22292 |
US $9,070.88 |
||
|
11000
|
11000
16258-28030 Gasket(For Heater Return)[06.2005 - 05.2007] 1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11 |
16258-28030 |
from US $2.91 |
||
|
11000
|
11000
16268-22161 Pipe, Water By-Pass, No.1[06.2005 - 05.2007] 1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11 |
16268-22161 |
US $96.20 |
||
|
12000
|
12000
12000-0D740
Engine Assy
[02.2005 - 06.2006] 1ZZFE..ZZE122..5F REFER TO ILLUSTRATION FIG.22-11 |
12000-0D740 |
— | ||
| replacements | |||||
|
12000
|
12000
19000-22144
Engine Assy, Partial
[02.2005 - 06.2006] 1ZZFE..ZZE122..5F REFER TO ILLUSTRATION FIG.22-11 |
19000-22144 |
— | ||
|
12000
|
12000
16258-28030 Gasket(For Heater Return)[02.2005 - 06.2006] 1ZZFE..ZZE122..5F REFER TO ILLUSTRATION FIG.22-11 |
16258-28030 |
from US $2.91 |
||
|
12000
|
12000
16268-22101 Pipe, Water By-Pass, No.1[02.2005 - 06.2006] 1ZZFE..ZZE122..5F REFER TO ILLUSTRATION FIG.22-11 |
16268-22101 |
US $94.64 |
||
|
12000
|
12000
16268-22161 Pipe, Water By-Pass, No.1[02.2005 - 06.2006] 1ZZFE..ZZE122..5F REFER TO ILLUSTRATION FIG.22-11 |
16268-22161 |
US $96.20 |
||
|
12000
|
12000
12000-0D780
Engine Assy
[07.2005 - 06.2006] 1ZZFE..ZZE122..5F BEIJING SPEC,REFER TO FIG 22-11 |
12000-0D780 |
— | ||
| replacements | |||||
|
12000
|
12000
16258-28030 Gasket(For Heater Return)[07.2005 - 06.2006] 1ZZFE..ZZE122..5F BEIJING SPEC,REFER TO FIG 22-11 |
16258-28030 |
from US $2.91 |
||
|
12000
|
12000
19000-22292 Engine Assy, Partial[07.2005 - 06.2006] 1ZZFE..ZZE122..5F BEIJING SPEC,REFER TO FIG 22-11 |
19000-22292 |
US $9,070.88 |
||
|
12000
|
12000
16268-22161 Pipe, Water By-Pass, No.1[07.2005 - 06.2006] 1ZZFE..ZZE122..5F BEIJING SPEC,REFER TO FIG 22-11 |
16268-22161 |
US $96.20 |
||
