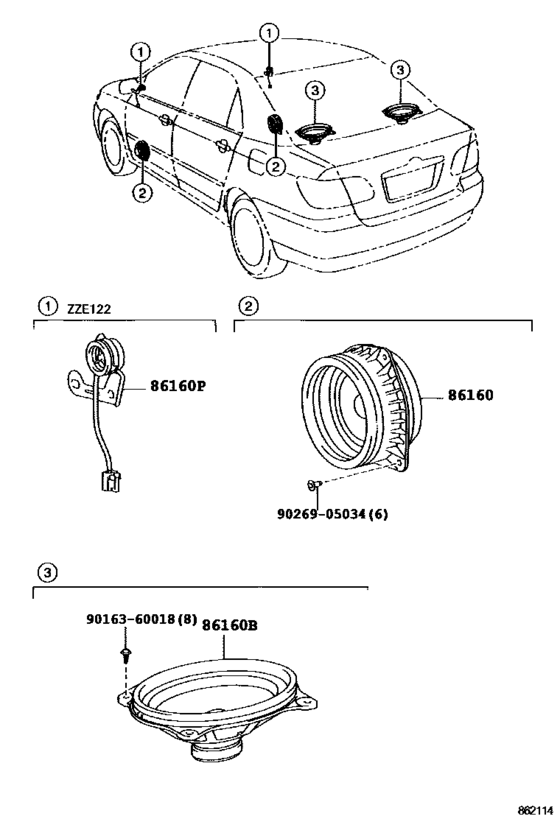

Speaker ([02.2004 - 10.2012] (0402-1210) ; (1210- )) Diagram Toyota COROLLA
- Year
- 2005 - 2007
- Sales region
- General
- Frame
- ZZE122
- grade
- GLI
- body
- SED
- ENGINE
- 1ZZFE
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 02.2005
- To
- 05.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86160
|
86160
86160-02680
Speaker Assy, Front No.1
[02.2004 - 05.2007] ZZE122 |
86160-02680 |
— | ||
| replacement | |||||
|
86160
|
86160
86160-02B90
Speaker Assy, Front No.1
[02.2004 - 05.2007] ZZE122 |
86160-02B90 |
— | ||
|
86160B
|
86160B
86160-02690
Speaker Assy, Rear
[02.2004 - 05.2007] ZZE122 |
86160-02690 |
— | ||
|
86160P
|
86160P
86160-02660
Speaker Assy, Front No.2
[02.2004 - 05.2007] ZZE122 RH |
86160-02660 |
— | ||
|
86160P
|
86160P
86160-02670
Speaker Assy, Front No.2
[02.2004 - 05.2007] ZZE122 LH |
86160-02670 |
— | ||
|
9016360018
|
9016360018
90163-60018 New Genuine Part |
90163-60018 |
US $0.73 |
||
|
9026905034
|
9026905034
90269-05034 RIVET |
90269-05034 |
from US $2.24 |
||
