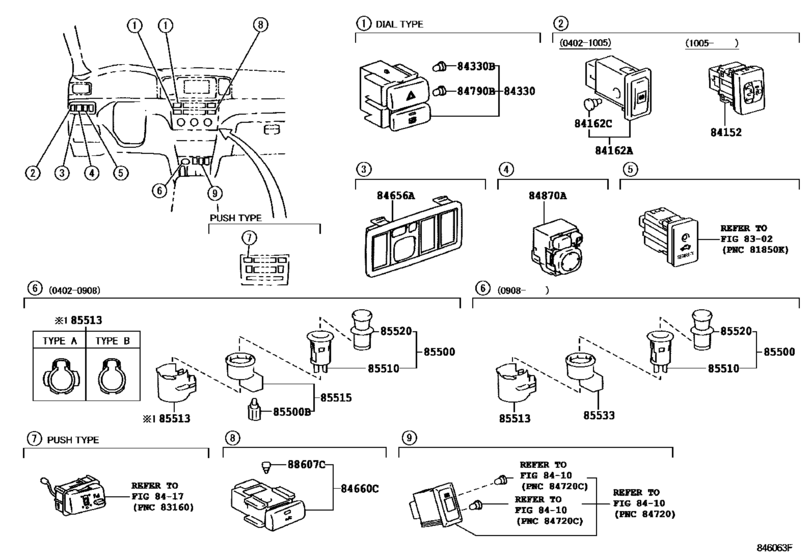

Switch & Relay & Computer ([02.2004 - 10.2012] INSTRUMENT PANEL (0402-1210)) Diagram Toyota COROLLA
- Year
- 2005 - 2007
- Sales region
- General
- Frame
- ZZE122
- grade
- GLI
- body
- SED
- ENGINE
- 1ZZFE
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 02.2005
- To
- 05.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84162A
|
84162A
84165-12060 Switch, Rear Fog Lamp[02.2004 - 05.2007] ZZE122 |
84165-12060 |
US $46.62 |
||
|
84162C
|
84162C
90010-09012 Bulb (For Rear Fog Lamp Switch)[02.2004 - 05.2007] ZZE122 14V 40MA,W(GREEN CAP) |
90010-09012 |
US $5.82 |
||
|
84330
|
84330
84332-12450 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [02.2004 - 05.2007] ZZE122..GLI |
84332-12450 |
US $63.48 |
||
|
84330B
|
84330B
84999-10310 Bulb, Air Conditioner Control[02.2004 - 05.2007] ZZE122..GLI 14V 0.91W |
84999-10310 |
from US $2.96 |
||
|
84656A
|
84656A
84656-12130-A0 Bezel, SwitchSWITCH [01.2006 - 05.2007] ZZE122..5F..GLI ELECTRIC REMOTE CONTROL DOOR MIRROR,IVORY,TRIM0# |
84656-12130-A0 |
US $15.58 |
||
| replacement | |||||
|
84656A
|
84656A
84656-12130-B0
Bezel, Switch
[01.2006 - 05.2007] ZZE122..5F..GLI ELECTRIC REMOTE CONTROL DOOR MIRROR,IVORY,TRIM0# |
84656-12130-B0 |
— | ||
|
84656A
|
84656A
84656-12140-A0 Bezel, Switch[02.2004 - 05.2007] ZZE122..GLI,GLXI IVORY,TRIM0# |
84656-12140-A0 |
US $15.58 |
||
| replacement | |||||
|
84656A
|
84656A
84656-12140-B0 Bezel, SwitchSWITCH [02.2004 - 05.2007] ZZE122..GLI,GLXI IVORY,TRIM0# |
84656-12140-B0 |
US $15.58 |
||
|
84660C
|
84660C
84660-12190 Switch, CoolerCOOLER [02.2004 - 05.2007] ZZE122..GLI |
84660-12190 |
from US $64.21 |
||
|
84790B
|
84790B
90010-01060 Bulb(For Rear Window Defogger Switch)[02.2004 - 05.2007] ZZE122..GLI 14V0.84W,W(GREEN CAP) |
90010-01060 |
US $5.82 |
||
|
84870A
|
84870A
84872-52030 Switch Assy, Outer Mirror[01.2006 - 05.2007] ZZE122..5F..GLI ELECTRIC REMOTE CONTROL DOOR MIRROR |
84872-52030 |
US $53.29 |
||
|
84870A
|
84870A
84872-52040 Switch Assy, Outer Mirror[02.2004 - 05.2007] ZZE122 |
84872-52040 |
US $102.12 |
||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[02.2004 - 05.2007] ZZE122 |
85500-12240 |
from US $28.68 |
||
|
85500B
|
85500B
90010-01065 Bulb, Cigarette Lighter[02.2004 - 05.2007] ZZE122 14V 1.4W,W(GREEN CAP) |
90010-01065 |
US $5.13 |
||
| replacement | |||||
|
85500B
|
85500B
84999-10250 Bulb, Key Cylinder Lamp[02.2004 - 05.2007] ZZE122 14V 1.4W,W(GREEN CAP) |
84999-10250 |
from US $4.62 |
||
|
85510
|
85510
85510-16040 Socket & Retainer Assy, Cigarlighter[02.2004 - 05.2007] ZZE122 |
85510-16040 |
US $24.47 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[02.2004 - 05.2007] ZZE122 TYPE A:REFER ILLUST. |
85513-12020 |
from US $5.21 |
||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[02.2004 - 05.2007] ZZE122 TYPE B:REFER ILLUST. |
85513-28010 |
from US $2.65 |
||
|
85515
|
85515
85515-12110 Stay, Cigarette Lighter Bezel[02.2004 - 05.2007] ZZE122 |
85515-12110 |
US $20.09 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[02.2004 - 05.2007] ZZE122 |
85520-28010 |
from US $17.90 |
||
|
88607C
|
88607C
90010-03044
Lamp Sub-Assy, Indicator
[02.2004 - 05.2007] ZZE122..GLI 14V0.84W,W(GREEN CAP) |
90010-03044 |
— | ||
