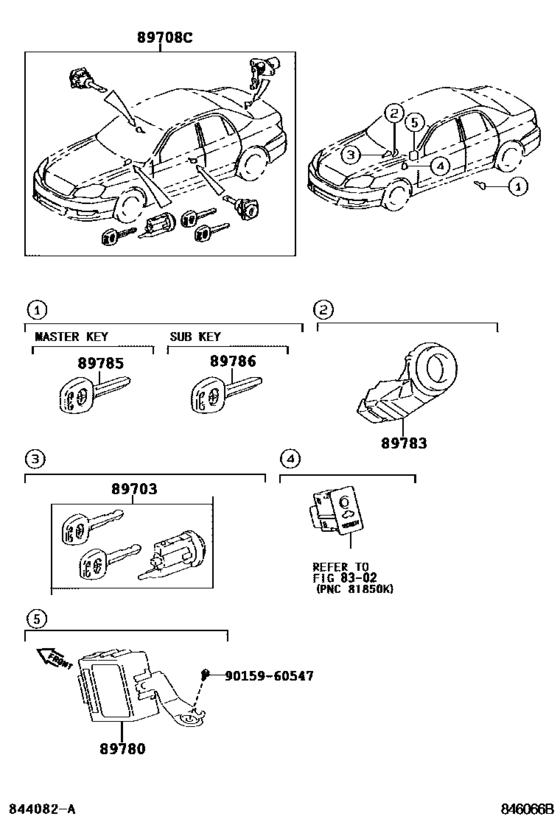

Anti-Theft Device ([02.2004 - 10.2012] (0402-1210) ; (1210- )) Diagram Toyota COROLLA
- Year
- 2005 - 2007
- Sales region
- General
- Frame
- ZZE122
- grade
- GLXI
- body
- SED
- ENGINE
- 1ZZFE
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 02.2005
- To
- 05.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89703
|
89703
89708-02110
Cylinder & Key Set, Ignition W/transponder
[02.2004 - 05.2007] ZZE122 |
89708-02110 |
— | ||
|
89708C
|
89708C
89708-02220
Cylinder Set, Lock W/transponder Key Transmitter
[02.2004 - 05.2007] ZZE122 |
89708-02220 |
— | ||
|
89780
|
89780
89780-12140
Computer Assy, Transponder Key
[06.2005 - 05.2007] ZZE122 |
89780-12140 |
— | ||
|
89783
|
89783
89783-12040
Amplifier, Transponder Key
[02.2004 - 05.2007] ZZE122 |
89783-12040 |
— | ||
| replacement | |||||
|
89783
|
89783
89783-12042
Amplifier, Transponder Key
[02.2004 - 05.2007] ZZE122 |
89783-12042 |
— | ||
|
89785
|
89785
89785-26020 Transmitter, Transponder Key MasterЧИП [02.2004 - 05.2007] ZZE122 |
89785-26020 |
from US $45.90 |
||
|
89786
|
89786
89786-60050 Transmitter, Transponder Key Sub[02.2004 - 05.2007] ZZE122 |
89786-60050 |
from US $41.54 |
||
|
9015960547
|
9015960547
90159-60547 New Genuine Part |
90159-60547 |
US $0.70 |
||
