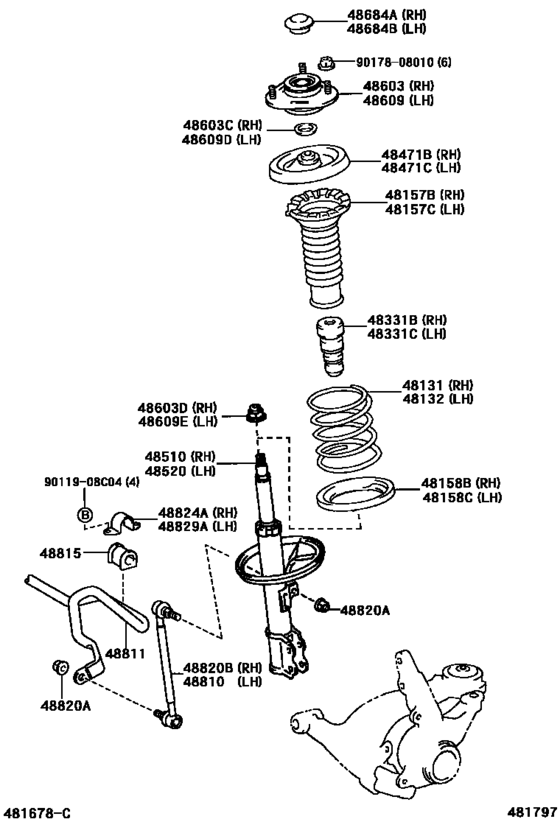

Front Spring & Shock Absorber ([02.2004 - ] (0402- )) Diagram Toyota COROLLA
- Year
- 2005 - 2007
- Sales region
- General
- Frame
- ZZE122
- grade
- GLXI
- body
- SED
- ENGINE
- 1ZZFE
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 02.2005
- To
- 05.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-02890
Spring, Front Coil, Rh
[02.2005 - 05.2007] ZZE122..5F |
48131-02890 |
— | ||
| replacement | |||||
|
48131
|
48131
48131-02891
Spring, Front Coil, Rh
[02.2005 - 05.2007] ZZE122..5F |
48131-02891 |
— | ||
|
48132
|
48132
48131-02890
Spring, Front Coil, Rh
[02.2005 - 05.2007] ZZE122..5F |
48131-02890 |
— | ||
| replacement | |||||
|
48132
|
48132
48131-02891
Spring, Front Coil, Rh
[02.2005 - 05.2007] ZZE122..5F |
48131-02891 |
— | ||
|
48157B
|
48157B
48157-02090
Insulator, Front Coil Spring, Upper Rh
[02.2004 - 05.2007] ZZE122 |
48157-02090 |
— | ||
| replacement | |||||
|
48157B
|
48157B
48157-02091
Insulator, Front Coil Spring, Upper Rh
[02.2004 - 05.2007] ZZE122 |
48157-02091 |
— | ||
|
48157C
|
48157C
48157-02090
Insulator, Front Coil Spring, Upper Rh
[02.2004 - 05.2007] ZZE122 |
48157-02090 |
— | ||
| replacement | |||||
|
48157C
|
48157C
48157-02091
Insulator, Front Coil Spring, Upper Rh
[02.2004 - 05.2007] ZZE122 |
48157-02091 |
— | ||
|
48158B
|
48158B
48158-02080
Insulator, Front Coil Spring, Lower Rh
[02.2004 - 05.2007] ZZE122 |
48158-02080 |
— | ||
| replacement | |||||
|
48158B
|
48158B
48158-02081
Insulator, Front Coil Spring, Lower Rh
[02.2004 - 05.2007] ZZE122 |
48158-02081 |
— | ||
|
48158C
|
48158C
48158-02080
Insulator, Front Coil Spring, Lower Rh
[02.2004 - 05.2007] ZZE122 |
48158-02080 |
— | ||
| replacement | |||||
|
48158C
|
48158C
48158-02081
Insulator, Front Coil Spring, Lower Rh
[02.2004 - 05.2007] ZZE122 |
48158-02081 |
— | ||
|
48331B
|
48331B
48331-12210 Bumper, Front Spring, Rh[02.2004 - 05.2007] ZZE122 |
48331-12210 |
from US $8.80 |
||
|
48331C
|
48331C
48331-12210 Bumper, Front Spring, Rh[02.2004 - 05.2007] ZZE122 |
48331-12210 |
from US $8.80 |
||
|
48471B
|
48471B
48044-12100 Seat, Front Coil Spring, Upper[02.2004 - 05.2007] ZZE122 |
48044-12100 |
from US $11.56 |
||
|
48471C
|
48471C
48044-12100 Seat, Front Coil Spring, Upper[02.2004 - 05.2007] ZZE122 |
48044-12100 |
from US $11.56 |
||
|
48510
|
48510
48510-02360
Absorber Assy, Shock, Front Rh
[02.2004 - 05.2007] ZZE122 MARK 48510-02360 |
48510-02360 |
— | ||
| replacement | |||||
|
48510
|
48510
48510-02363
Absorber Assy, Shock, Front Rh
[02.2004 - 05.2007] ZZE122 MARK 48510-02360 |
48510-02363 |
— | ||
|
48520
|
48520
48520-02360
Absorber Assy, Shock, Front Lh
[02.2004 - 05.2007] ZZE122 MARK 48520-02360 |
48520-02360 |
— | ||
| replacement | |||||
|
48520
|
48520
48520-02363
Absorber Assy, Shock, Front Lh
[02.2004 - 05.2007] ZZE122 MARK 48520-02360 |
48520-02363 |
— | ||
|
48603
|
48603
48609-02150
Support Sub-Assy, Front Suspension, Rh
[02.2004 - 05.2007] ZZE122 |
48609-02150 |
— | ||
|
48603C
|
48603C
90303-22002 Seal, Dust(For Front Suspension Support)[02.2004 - 05.2007] ZZE122 |
90303-22002 |
from US $3.20 |
||
|
48603D
|
48603D
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[02.2004 - 05.2007] ZZE122 |
90179-14015 |
from US $1.93 |
||
|
48609
|
48609
48609-02150
Support Sub-Assy, Front Suspension, Rh
[02.2004 - 05.2007] ZZE122 |
48609-02150 |
— | ||
|
48609D
|
48609D
90303-22002 Seal, Dust(For Front Suspension Support)[02.2004 - 05.2007] ZZE122 |
90303-22002 |
from US $3.20 |
||
|
48609E
|
48609E
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[02.2004 - 05.2007] ZZE122 |
90179-14015 |
from US $1.93 |
||
|
48684A
|
48684A
48684-52010 Cover, Front Suspension Support Dust[02.2004 - 05.2007] ZZE122 |
48684-52010 |
US $9.60 |
||
|
48684B
|
48684B
48684-52010 Cover, Front Suspension Support Dust[02.2004 - 05.2007] ZZE122 |
48684-52010 |
US $9.60 |
||
|
48810
|
48810
48820-02060
Link Assy, Front Stabilizer, Lh
[02.2004 - 05.2007] ZZE122 (L) |
48820-02060 |
— | ||
|
48810
|
48810
48820-47010 Link Assy, Front Stabilizer[02.2004 - 05.2007] ZZE122 (J) |
48820-47010 |
from US $75.74 |
||
|
48811
|
48811
48811-02170
Bar, Stabilizer, Front
[02.2004 - 06.2005] ZZE122 |
48811-02170 |
— | ||
| replacement | |||||
|
48811
|
48811
48811-02171
Bar, Stabilizer, Front
[02.2004 - 06.2005] ZZE122 |
48811-02171 |
— | ||
|
48811
|
48811
48811-02171
Bar, Stabilizer, Front
[06.2005 - 05.2007] ZZE122 |
48811-02171 |
— | ||
|
48815
|
48815
48815-02130
Bush, Front Stabilizer Bar, No.1
[02.2004 - 05.2007] ZZE122 |
48815-02130 |
— | ||
|
48820A
|
48820A
90179-12151 Nut(For Front Stabilizer Link)[02.2004 - 05.2007] ZZE122 |
90179-12151 |
from US $0.96 |
||
|
48820B
|
48820B
48820-02060
Link Assy, Front Stabilizer, Lh
[02.2004 - 05.2007] ZZE122 (L) |
48820-02060 |
— | ||
|
48820B
|
48820B
48820-47010 Link Assy, Front Stabilizer[02.2004 - 05.2007] ZZE122 (J) |
48820-47010 |
from US $75.74 |
||
|
48824A
|
48824A
48824-26210 Bracket, Front Stabilizer, No.1[02.2004 - 05.2007] ZZE122 |
48824-26210 |
from US $11.13 |
||
|
48829A
|
48829A
48824-26210 Bracket, Front Stabilizer, No.1[02.2004 - 05.2007] ZZE122 |
48824-26210 |
from US $11.13 |
||
|
9011908C04
|
9011908C04
90119-08C04 BOLT WWASHER |
90119-08C04 |
US $1.28 |
||
|
9017808010
|
9017808010
90178-08010 Nut(For Front Suspension Support) |
90178-08010 |
from US $1.07 |
||
