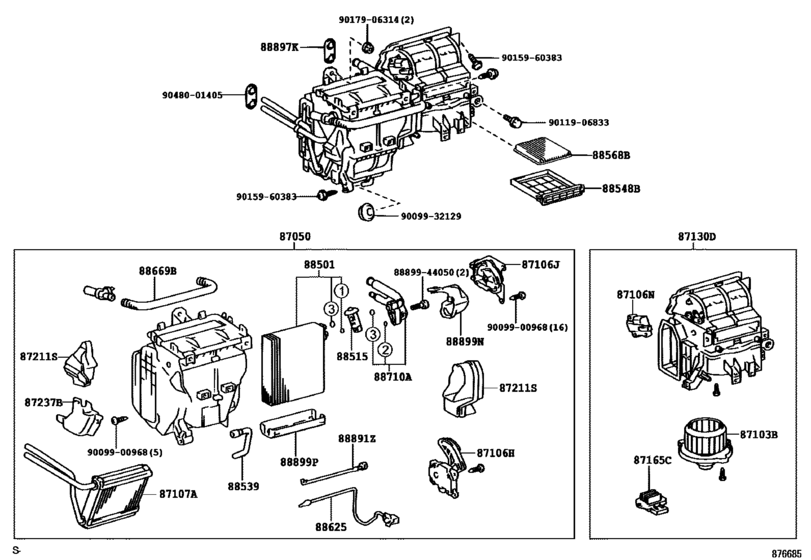

Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] AUTO AIR CONDITIONER (0402-0705)) Diagram Toyota COROLLA
- Year
- 2005 - 2007
- Sales region
- General
- Frame
- ZZE122
- grade
- GLXI
- body
- SED
- ENGINE
- 1ZZFE
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 02.2005
- To
- 05.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-02680
Radiator Assy, Air Conditioner
[02.2004 - 05.2007] ZZE122..GLXI,GLXS |
87050-02680 |
— | ||
|
87103B
|
87103B
87103-12070
Motor Sub-Assy, Blower W/fan
[02.2004 - 05.2007] ZZE122 |
87103-12070 |
— | ||
|
87106H
|
87106H
87106-12131
Servo Sub-Assy, Damper(For Airmix)
[02.2004 - 05.2007] ZZE122..GLXI,GLXS |
87106-12131 |
— | ||
|
87106J
|
87106J
87106-12140 Servo Sub-Assy, Damper(For Mode)[02.2004 - 05.2007] ZZE122..GLXI,GLXS |
87106-12140 |
US $157.25 |
||
|
87106N
|
87106N
87106-13010
Servo Sub-Assy, Damper(For Recirculation)
[02.2004 - 05.2007] ZZE122..GLXI,GLXS |
87106-13010 |
— | ||
|
87107A
|
87107A
87107-12560
Unit Sub-Assy, Heater Radiator
[02.2004 - 05.2007] ZZE122 |
87107-12560 |
— | ||
|
87130D
|
87130D
87130-02220
Blower Assy
[02.2004 - 05.2007] ZZE122..GLXI,GLXS |
87130-02220 |
— | ||
|
87165C
|
87165C
87165-13010 Control, Blower Motor[02.2004 - 05.2007] ZZE122..GLXI,GLXS |
87165-13010 |
from US $132.79 |
||
|
87211S
|
87211S
87211-12280
Duct, Air
[02.2004 - 05.2007] ZZE122 DRIVER SIDE |
87211-12280 |
— | ||
|
87211S
|
87211S
87211-12290
Duct, Air
[02.2004 - 05.2007] ZZE122 PASSENGER SIDE |
87211-12290 |
— | ||
|
87237B
|
87237B
87237-12010
Cover, Heater Piping
[02.2004 - 05.2007] ZZE122 |
87237-12010 |
— | ||
|
88501
|
88501
88501-12450 Evaporator Sub-Assy, Cooler, No.1COOLER, NO.1 [02.2004 - 05.2007] ZZE122 |
88501-12450 |
US $376.55 |
||
|
88515
|
88515
88515-60150 Valve, Cooler Expansion[02.2004 - 05.2007] ZZE122 |
88515-60150 |
from US $99.24 |
||
|
88539
|
88539
88539-12180
Hose, Cooler Unit Drain, No.1
[02.2004 - 05.2007] ZZE122 |
88539-12180 |
— | ||
|
88548B
|
88548B
88548-52010 Case, Air Filter[02.2004 - 05.2007] ZZE122 |
88548-52010 |
from US $9.43 |
||
| replacement | |||||
|
88548B
|
88548B
88548520101 Holder Sub-Assy, Filter[02.2004 - 05.2007] ZZE122 |
88548520101 |
US $12.48 |
||
|
88568B
|
88568B
88568-02040
Filter, Air
[02.2004 - 05.2007] ZZE122 |
88568-02040 |
— | ||
|
88625
|
88625
88625-60140 Thermistor, Cooler, No.1[02.2004 - 05.2007] ZZE122 |
88625-60140 |
US $11.41 |
||
|
88669B
|
88669B
88669-16060
Hose, Cooler Air
[02.2004 - 05.2007] ZZE122..GLXI,GLXS |
88669-16060 |
— | ||
|
88710A
|
88710A
88710-12550 Tube Assy, Air ConditionerAIRCONDITIONER [02.2004 - 05.2007] ZZE122 |
88710-12550 |
from US $100.95 |
||
|
88891Z
|
88891Z
88891-50060
Bracket, Cooler Thermistor
[02.2004 - 05.2007] ZZE122 |
88891-50060 |
— | ||
|
88897K
|
88897K
90480-01434 Grommet, (For Cooler Pipe)[02.2004 - 05.2007] ZZE122 |
90480-01434 |
US $4.54 |
||
|
88899N
|
88899N
88899-12440
Plate, Cover
[02.2004 - 02.2006] ZZE122 |
88899-12440 |
— | ||
|
88899N
|
88899N
88899-12510
Plate, Cover
[03.2006 - 05.2007] ZZE122 |
88899-12510 |
— | ||
|
88899P
|
88899P
88899-12450
Plate, Cover
[02.2004 - 05.2007] ZZE122 |
88899-12450 |
— | ||
|
8889944050
|
8889944050
88899-44050 Bolt, W/Washer |
88899-44050 |
US $0.84 |
||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.88 |
||
|
9009932129
|
9009932129
90099-32129
Grommet (For Cooler Unit Drain Hose)
|
90099-32129 |
— | ||
|
9011906833
|
9011906833
90119-06833 BOLT WWASHER |
90119-06833 |
US $0.44 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.38 |
||
|
9017906314
|
9017906314
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
|
9048001405
|
9048001405
90480-01405 Grommet, Heater Hose |
90480-01405 |
US $4.19 |
||
