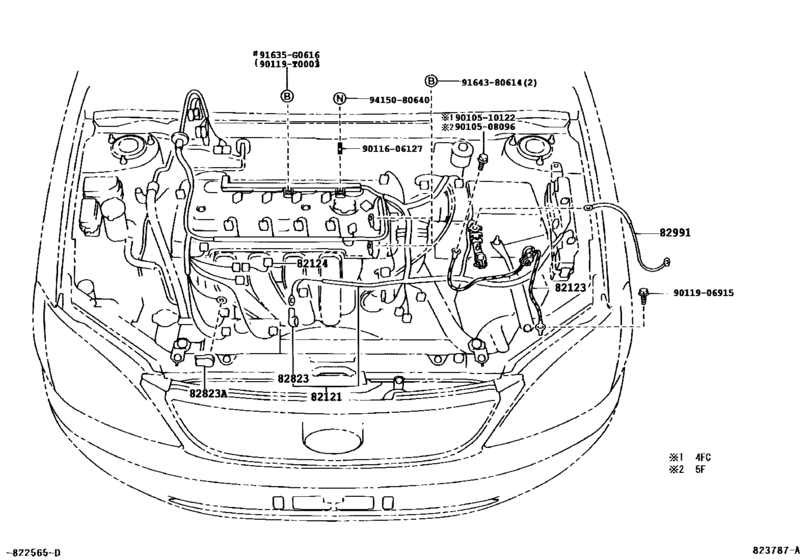

Wiring & Clamp ([02.2004 - 05.2007] ENGINE (0402-0705)) Diagram Toyota COROLLA
- Year
- 2005 - 2007
- Sales region
- General
- Frame
- ZZE122
- grade
- GLXI
- body
- SED
- ENGINE
- 1ZZFE
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 02.2005
- To
- 05.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-02650
Wire, Engine
[02.2005 - 06.2006] ZZE122..5F |
82121-02650 |
— | ||
|
82121
|
82121
82121-02J80
Wire, Engine
[06.2005 - 06.2006] ZZE122..5F BEIJING SPEC,REFER TO FIG 22-11 |
82121-02J80 |
— | ||
|
82123
|
82123
82123-02170
Wire, Engine, No.3
[02.2005 - 05.2007] ZZE122..5F |
82123-02170 |
— | ||
|
82124
|
82124
82124-02030 Wire, Engine, No.4[02.2004 - 06.2006] ZZE122 (L) |
82124-02030 |
US $7.72 |
||
|
82124
|
82124
82124-02090
Wire, Engine, No.4
[06.2005 - 06.2006] ZZE122 BEIJING SPEC,REFER TO FIG 22-11 |
82124-02090 |
— | ||
|
82124
|
82124
82124-32050 Wire, Engine, No.4[02.2004 - 06.2006] ZZE122 (J) |
82124-32050 |
US $3.79 |
||
|
82823
|
82823
82823-12090 Cap, Terminal, No.1[02.2004 - 05.2007] ZZE122 |
82823-12090 |
US $11.53 |
||
|
82823A
|
82823A
82823-22050 Cap, Terminal, No.1[02.2004 - 05.2007] ZZE122 |
82823-22050 |
US $6.24 |
||
|
82991
|
82991
82991-12070 Wire, Fusible Link Repair[02.2004 - 05.2007] ZZE122 |
82991-12070 |
US $8.44 |
||
|
90119T0003
|
90119T0003
90119-T0003
New Genuine Part
|
90119-T0003 |
— | ||
|
91635G0616
|
91635G0616
91635-G0616 BOLTWWASHER |
91635-G0616 |
US $0.96 |
||
|
9010508096
|
9010508096
90105-08096
New Genuine Part
|
90105-08096 |
— | ||
|
9010510122
|
9010510122
90105-10122 New Genuine Part |
90105-10122 |
US $1.22 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.78 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.70 |
||
|
9164380614
|
9164380614
91643-80614 New Genuine Part |
91643-80614 |
US $1.76 |
||
|
9415080640
|
9415080640
94150-80640 NUT FLANGE |
94150-80640 |
from US $1.93 |
