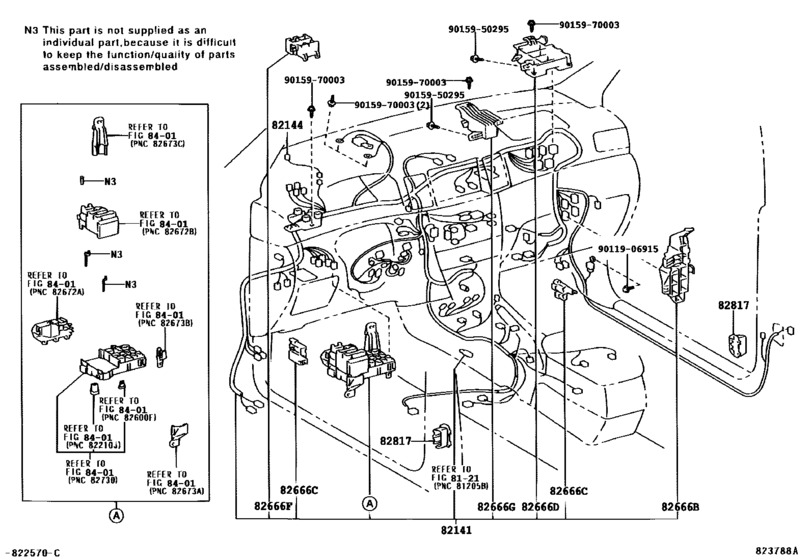

Wiring & Clamp ([02.2004 - 05.2007] INSTRUMENT PANEL (0402-0705)) Diagram Toyota COROLLA
- Year
- 2005 - 2007
- Sales region
- General
- Frame
- ZZE122
- grade
- GLXI
- body
- SED
- ENGINE
- 1ZZFE
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 02.2005
- To
- 05.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82141
|
82141
82118-02B60
Wire, Instrument Panel
[06.2005 - 03.2006] ZZE122..5F..GLXI 1TH ANNIVERSARY PACKAGE & BEIJING SPEC,REFER TO FIG 22-11 |
82118-02B60 |
— | ||
|
82141
|
82141
82118-02B61
Wire, Instrument Panel
[03.2006 - 06.2006] ZZE122..5F..GLXI 1TH ANNIVERSARY PACKAGE & BEIJING SPEC,REFER TO FIG 22-11 |
82118-02B61 |
— | ||
|
82141
|
82141
82146-02C90
Wire, Instrument Panel
[02.2005 - 06.2006] ZZE122..5F..(GLXI,GLXS) |
82146-02C90 |
— | ||
|
82141
|
82141
82146-02D00
Wire, Instrument Panel
[02.2005 - 06.2006] ZZE122..5F..(GLXI,GLXS) W(NAVIGATION SYSTEM) |
82146-02D00 |
— | ||
|
82141
|
82141
82146-02Y10
Wire, Instrument Panel
[06.2005 - 03.2006] ZZE122..5F..(GLXI,GLXS) BEIJING SPEC,REFER TO FIG 22-11 |
82146-02Y10 |
— | ||
|
82141
|
82141
82146-02Y11
Wire, Instrument Panel
[03.2006 - 06.2006] ZZE122..5F..(GLXI,GLXS) BEIJING SPEC,REFER TO FIG 22-11 |
82146-02Y11 |
— | ||
|
82141
|
82141
82146-02Y20
Wire, Instrument Panel
[06.2005 - 03.2006] ZZE122..5F..(GLXI,GLXS) BEIJING SPEC,REFER TO FIG 22-11 & W(NAVIGATION SYSTEM) |
82146-02Y20 |
— | ||
|
82141
|
82141
82146-02Y21
Wire, Instrument Panel
[03.2006 - 06.2006] ZZE122..5F..(GLXI,GLXS) BEIJING SPEC,REFER TO FIG 22-11 & W(NAVIGATION SYSTEM) |
82146-02Y21 |
— | ||
|
82144
|
82144
82144-02010
Wire, Instrument Panel, No.4
[02.2004 - 05.2007] ZZE122..GLXI,GLXS |
82144-02010 |
— | ||
|
82666B
|
82666B
82666-02090
Holder, Connector No.3
[02.2004 - 05.2007] ZZE122 |
82666-02090 |
— | ||
|
82666C
|
82666C
82666-02070 Holder, Connector No.4[02.2004 - 05.2007] ZZE122 |
82666-02070 |
US $11.65 |
||
|
82666D
|
82666D
82666-02100
Holder, Connector No.5
[02.2004 - 05.2007] ZZE122 |
82666-02100 |
— | ||
|
82666F
|
82666F
82666-02080
Holder, Connector No.7
[02.2004 - 05.2007] ZZE122 |
82666-02080 |
— | ||
|
82666G
|
82666G
82666-12320 Holder, Connector No.8CONNECTOR NO.8 [02.2004 - 05.2007] ZZE122 |
82666-12320 |
US $19.51 |
||
|
82817
|
82817
82817-02210 Protector, Wiring Harness, No.1WIRING HARNESS, NO.1 [02.2004 - 05.2007] ZZE122 (L) |
82817-02210 |
US $13.54 |
||
|
82817
|
82817
82817-1A761 Protector, Wiring Harness, No.1[02.2004 - 05.2007] ZZE122 RH,(J) |
82817-1A761 |
US $9.32 |
||
|
82817
|
82817
82817-1A830 Protector, Wiring Harness, No.1[02.2004 - 05.2007] ZZE122 LH,(J) |
82817-1A830 |
US $8.30 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.70 |
||
|
9015950295
|
9015950295
90159-50295 New Genuine Part |
90159-50295 |
US $1.60 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
